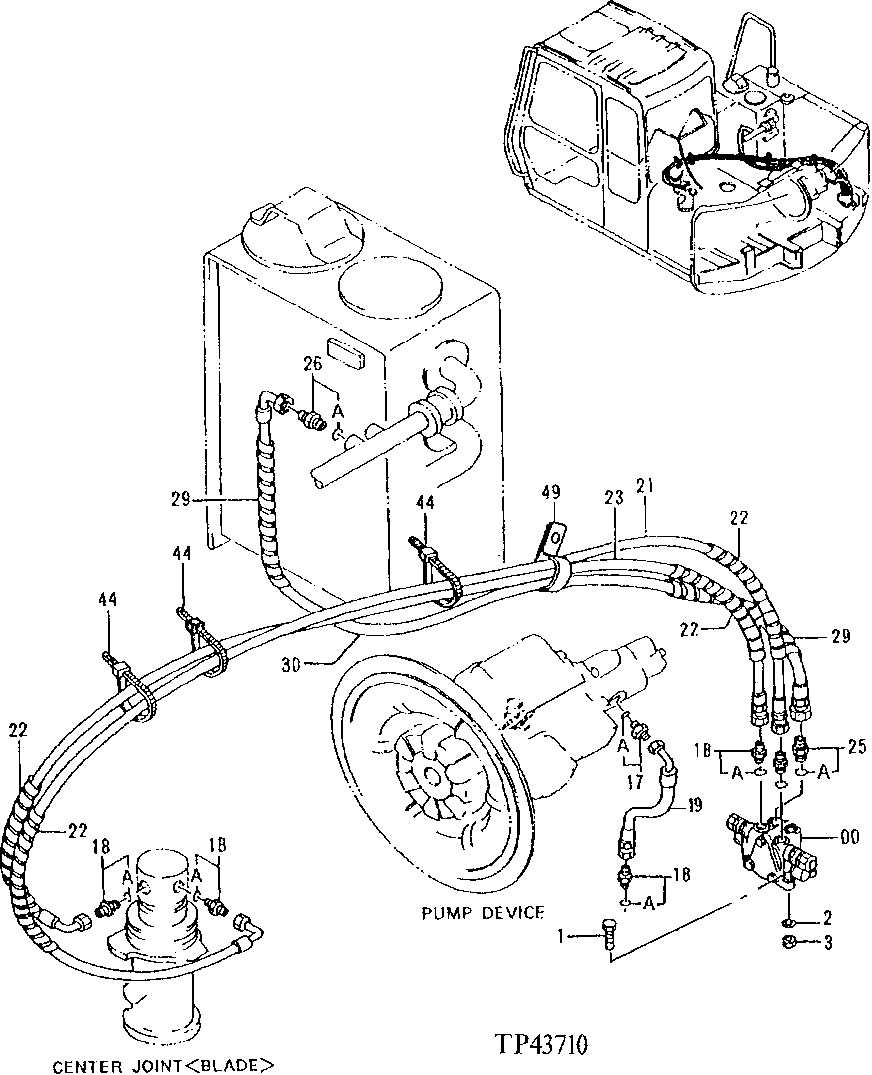

Запчасти John Deere 90E 197 - Blade Pipings (Upperstructure) ( - 010332) 3360 HYDRAULIC SYSTEM

0

4286412

Hyd Actuated Control Valve

(SUB FOR AT200493)(BLADE)

1шт.

1

19M8337

Screw

M10 X 30

3шт.

2

12M7066

Lock Washer

10 mm

3шт.

3

14M7274

Nut

M10

3шт.

17

4200469

Adapter Fitting

(SUB FOR TH108400)

1шт.

17A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

18

4200466

Adapter Fitting

(SUB FOR TH108320)

5шт.

18A

CH11570

O-Ring

1шт.

19

AT163723

Hydraulic Hose

9/16" X 400 mm (15-3/4") X 9/16"

1шт.

21

AT200740

Hydraulic Hose

1шт.

22

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222 ( TH100996 NOT AVAILABLE FOR SERVICE) )

4шт.

23

AT200766

Hydraulic Hose

1шт.

25

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

1шт.

25A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

26

4279302

Adapter Fitting

(SUB FOR AT200475)

1шт.

26A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

29

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222 ( TH100996 NOT AVAILABLE FOR SERVICE) )

2шт.

30

AT200765

Hydraulic Hose

1шт.

44

H77698

Tie Band

3шт.

49

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.
