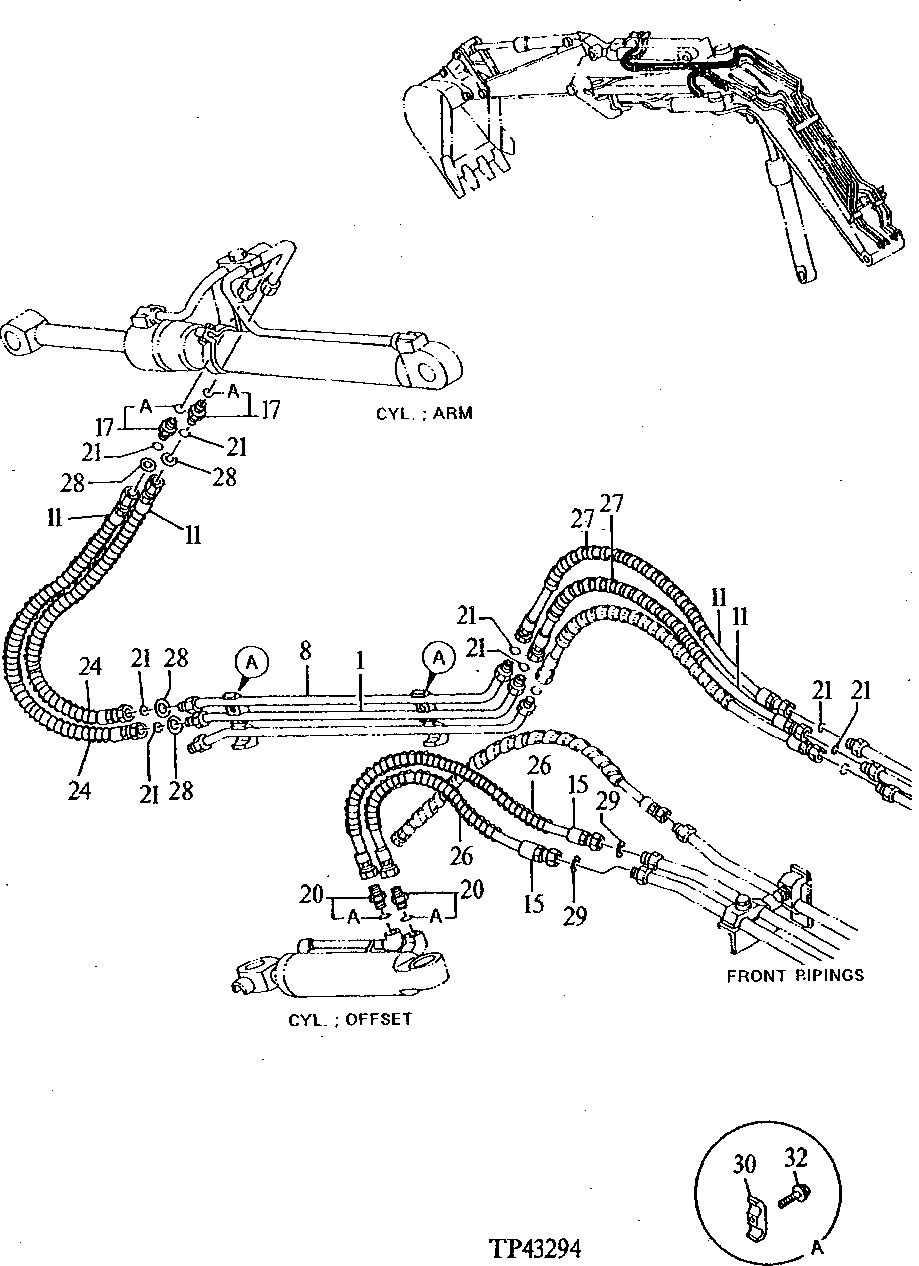

Запчасти John Deere 90E 195 - OFFSET BOOM FRONT PIPINGS 3360 HYDRAULIC SYSTEM

1

8041027

Oil Line

(SUB FOR TH110951)

1шт.

8

8041026

Oil Line

(SUB FOR TH110950)

1шт.

11

AT200750

Hydraulic Hose

13/16" X 850 mm (33-1/2") X 13/16"

4шт.

15

AT48428

Hydraulic Hose

9/16" X 707 mm (27-3/4") X 9/16"

2шт.

17

4189602

Fitting

(SUB FOR TH108350)

2шт.

17A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

20

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

20A

CH11570

O-Ring

1шт.

21

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

8шт.

24

Hose Guard

(FURNISH TH101393 CUT TO LENGTH) ( TH105945 NO LONGER AVAILABLE)

2шт.

26

4087623

Hose Guard

(SUB FOR TH110452)

2шт.

27

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222 ( T H100996 NOT AVAILABLE FOR SERVICE))

2шт.

28

4073051

Washer

23 X 39 X 1.600 mm (29/32" X 1. 535" X 1/16") (SUB FOR TH105953)

4шт.

29

24M7053

Washer

17 X 30 X 3 mm

2шт.

30

4189858

Clamp

(SUB FOR TH108333)

2шт.

32

19M7496

Cap Screw

M12 X 45

2шт.

12H301

Lock Washer

1/2"

2шт.
