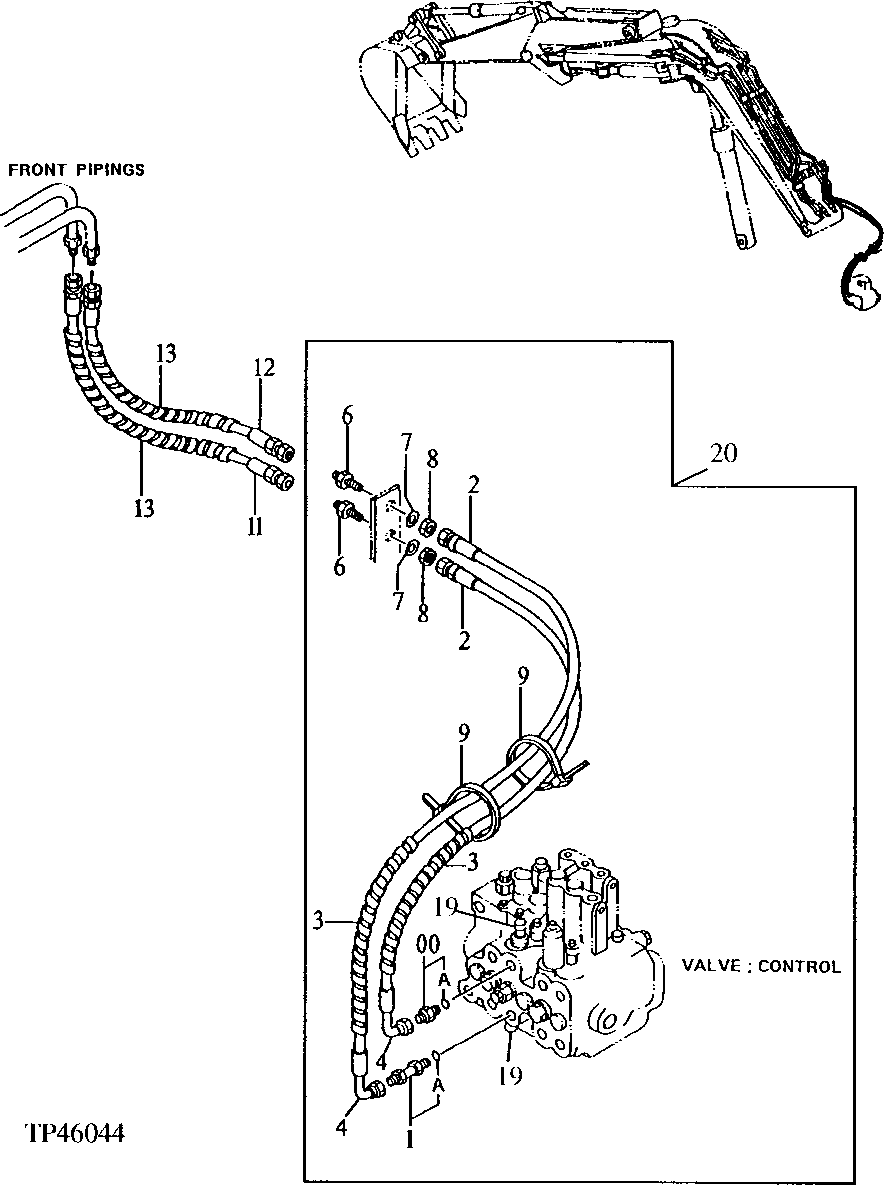

Запчасти John Deere 90E 193 - OFFSET BOOM MAIN PIPINGS 3360 HYDRAULIC SYSTEM

0

4200469

Adapter Fitting

(SUB FOR TH108400)

1шт.

0A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

1

4304367

Adapter Fitting

(SUB FOR AT200542)

1шт.

1A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

2

AT57860

Hydraulic Hose

9/16" X 1016 mm (40") X 9/16"

2шт.

3

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222 ( T H100996 NOT AVAILABLE FOR SERVICE))

2шт.

4

AE24616

Elbow Fitting

2шт.

6

R27238

Fitting

2шт.

7

J222014

Washer

(SUB FOR AT200011)

2шт.

8

14H888

Nut

9/16"

2шт.

9

H77698

Tie Band

2шт.

11

AT46299

Hydraulic Hose

9/16" X 1150 mm (45-1/4") X 9/16"

1шт.

12

AT57860

Hydraulic Hose

9/16" X 1016 mm (40") X 9/16"

1шт.

13

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222 ( T H100996 NOT AVAILABLE FOR SERVICE))

2шт.

19

4306947

Pressure Relief Valve

(SUB FOR AT200552)

2шт.

20

Kit

( AT169377 NLA) (AUXILIARY HYDRAULICS) ( CONTAINS ALL ITEMS ON THIS PAGE - ADDITION AL COMPONENTS LISTED ON SPARE PEDAL PAGE)

1шт.
