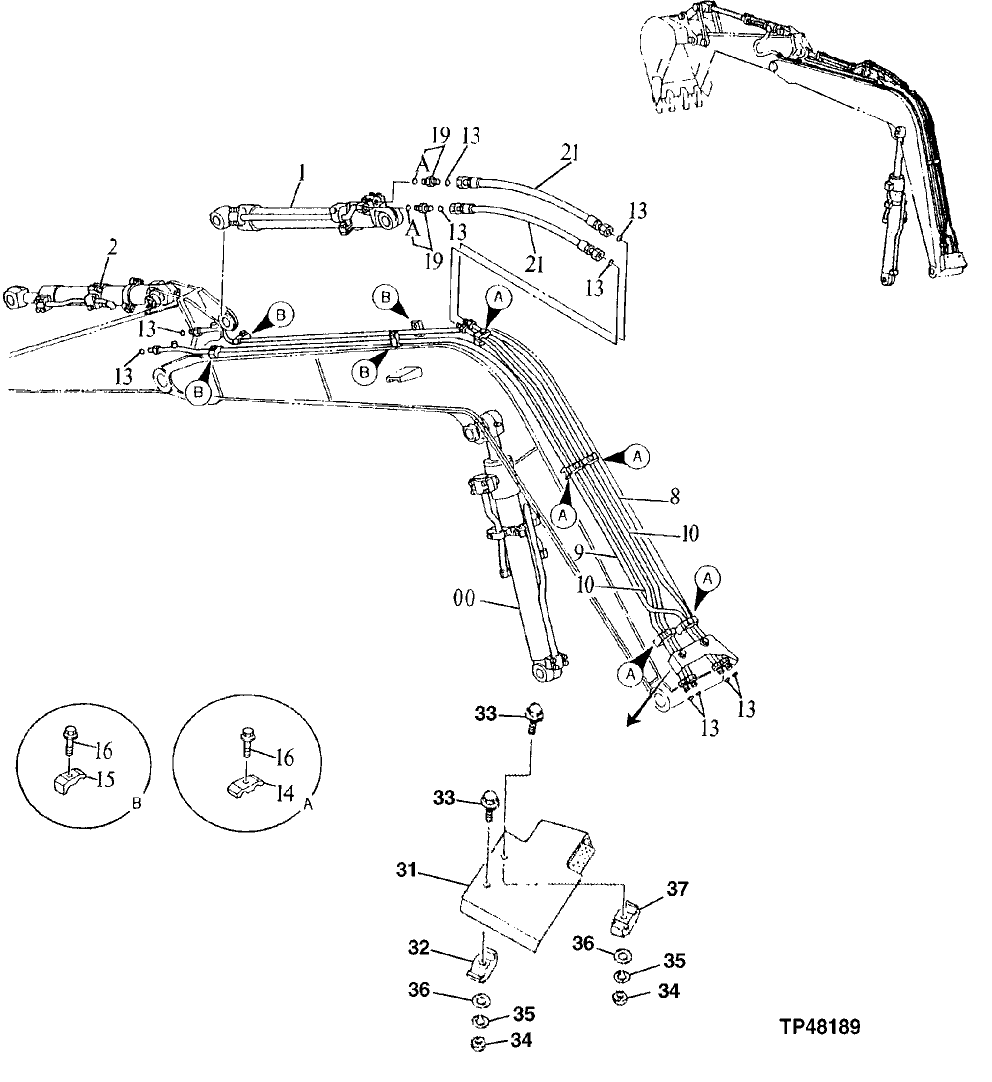

0
4272843
Cylinder
(SUB FOR AT200452 OR AT264202)(BOOM)
1шт.
1
4272844
Cylinder
(SUB FOR AT200453 OR AT264182)(ARM)
1шт.
2
4272845
Hydraulic Cylinder
(BUCKET) (SUB FOR AT200454 OR AT182460)
1шт.
8
8050606
Line
(SUB FOR AT200653)
1шт.
9
8050607
Line
(SUB FOR AT200654)
1шт.
10
8050605
Line
(SUB FOR AT200652)
2шт.
13
T77857
O-Ring
12.421 X 1.778 mm (0.489" X 0.070")
10шт.
14
4189858
Clamp
(SUB FOR TH108333)
5шт.
15
4190125
Clamp
(SUB FOR TH108960)
4шт.
16
19M7361
Cap Screw
M12 X 50
9шт.
12H301
Lock Washer
1/2"
9шт.
19
4189602
Fitting
(SUB FOR TH108350)
2шт.
19A
4506418
O-Ring
17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)
1шт.
21
AT200737
Hydraulic Hose
13/16" X 680 mm (26-3/4") X 13/16"
2шт.
31
8064464
Cover
(SUB FOR AT178671)
1шт.
32
4189858
Clamp
(SUB FOR TH108333)
1шт.
33
19M7753
Cap Screw
M12 X 70 (SUB FOR AT200007 OR J021270 USE ALONG WITH 12M7067 , AND 24M7043)
2шт.
12M7067
Lock Washer
12 mm
2шт.
24M7043
Washer
12 X 25 X 3 mm
2шт.
34
14M7275
Nut
M12
2шт.
35
12H301
Lock Washer
1/2"
2шт.
36
24M7047
Washer
13 X 24 X 2.500 mm
2шт.
37
4190125
Clamp
(SUB FOR TH108960)
1шт.
