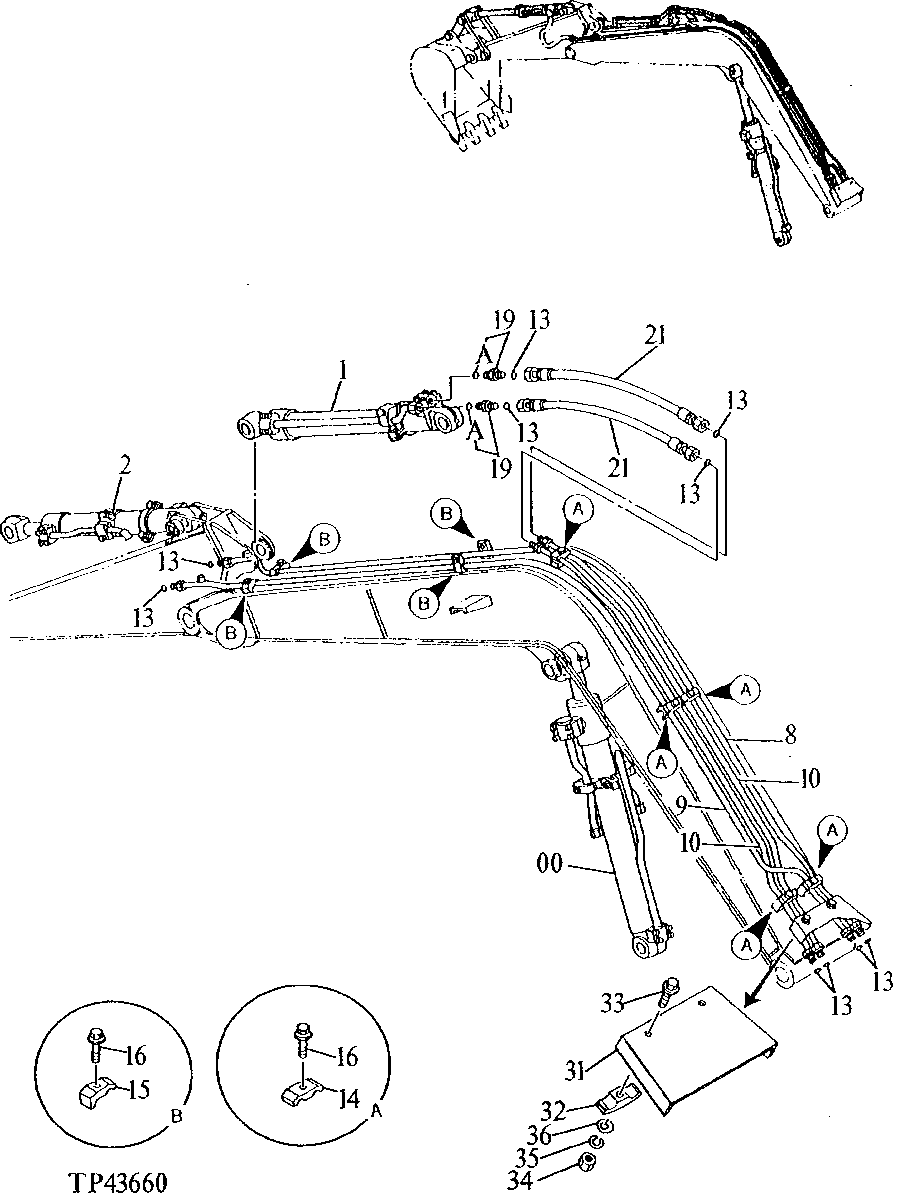

Запчасти John Deere 90E 189 - FRONT PIPINGS ( - 011245) 3360 HYDRAULIC SYSTEM

0

4272843

Cylinder

(SUB FOR AT200452 OR AT264202)(BOOM)

1шт.

1

4272844

Cylinder

(SUB FOR AT200453 OR AT264182)(ARM)

1шт.

2

4272845

Hydraulic Cylinder

(SUB FOR AT200454 OR AT182460)(BUCKET)

1шт.

8

8050606

Line

(SUB FOR AT200653)

1шт.

9

8050607

Line

(SUB FOR AT200654)

1шт.

10

8050605

Line

(SUB FOR AT200652)

2шт.

13

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

10шт.

14

4189858

Clamp

(SUB FOR TH108333)

5шт.

15

4190125

Clamp

(SUB FOR TH108960)

4шт.

16

19M7361

Cap Screw

M12 X 50

9шт.

12H301

Lock Washer

1/2"

9шт.

19

4189602

Fitting

(SUB FOR TH108350)

2шт.

19A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

21

AT200737

Hydraulic Hose

13/16" X 680 mm (26-3/4") X 13/16"

2шт.

31

Cover

AT200687 NO LONGER AVA ILABLE, (SUB AT178671)

1шт.

32

4189858

Clamp

(SUB FOR TH108333)

2шт.

33

19M7753

Cap Screw

M12 X 70 (SUB FOR AT200007 OR J021270 USE ALONG WITH 12M7067 , AND 24M7055)

2шт.

12M7067

Lock Washer

12 mm

2шт.

24M7043

Washer

12 X 25 X 3 mm

2шт.

34

14M7275

Nut

M12

2шт.

35

12H301

Lock Washer

1/2"

2шт.

36

24M7047

Washer

13 X 24 X 2.500 mm

2шт.
