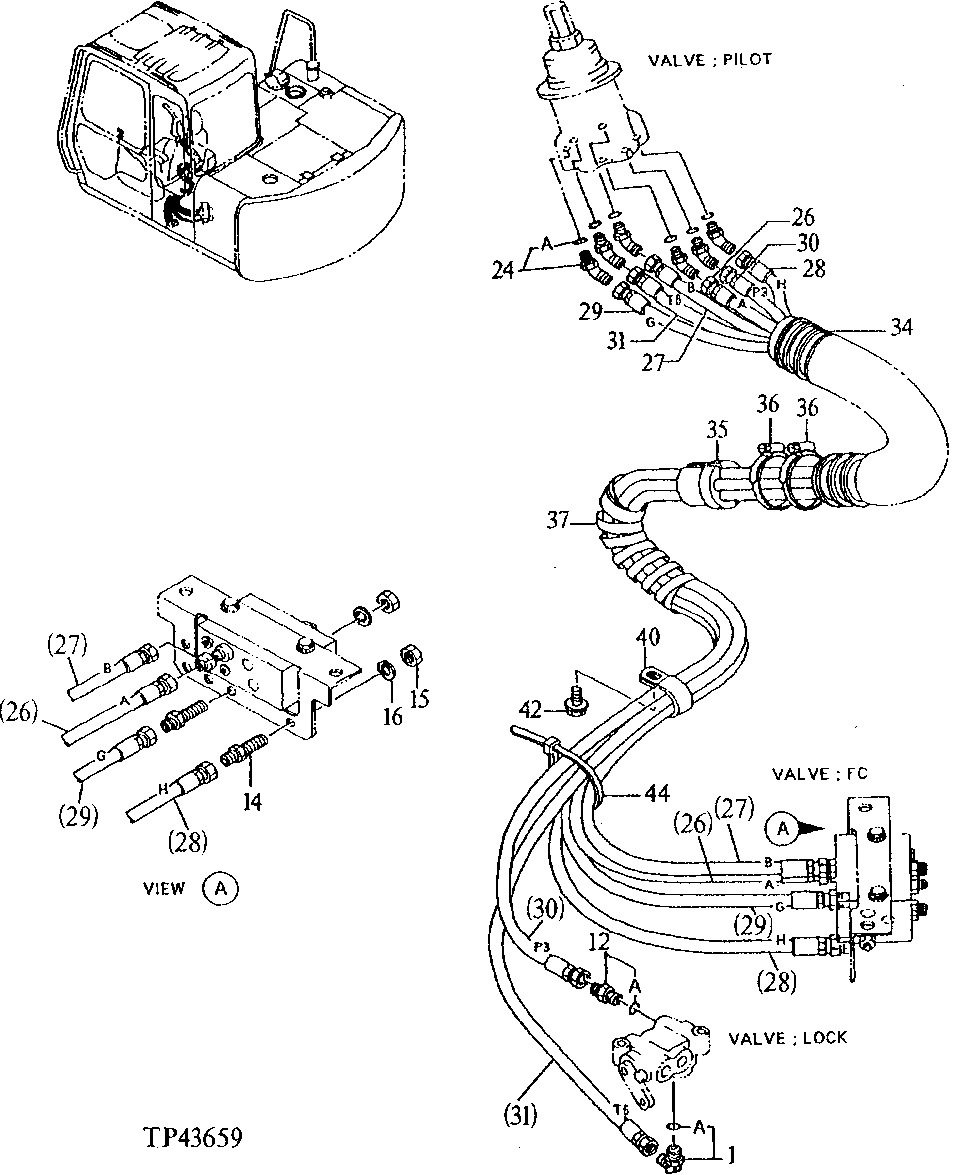

Запчасти John Deere 90E 188 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

1A

CH11570

O-Ring

1шт.

12

4261938

Fitting

(SUB FOR AT154285)

1шт.

12A

CH11570

O-Ring

1шт.

14

R27238

Fitting

2шт.

15

14H888

Nut

9/16"

2шт.

16

12H294

Lock Washer

5/8"

2шт.

24

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

24A

M800650

Packing

1шт.

26

4320026

Hydraulic Hose

(SUB FOR AT200779)

1шт.

27

4320027

Hydraulic Hose

(SUB FOR AT200780)

1шт.

28

4320028

Hydraulic Hose

(SUB FOR AT200781)

1шт.

29

4320029

Hydraulic Hose

(SUB FOR AT200782)

1шт.

30

AT161995

Hydraulic Hose

9/16" X 1600 mm (63") X 9/16"

1шт.

31

AT161995

Hydraulic Hose

9/16" X 1600 mm (63") X 9/16"

1шт.

34

4319234

Conduit

(SUB FOR AT154270)

1шт.

35

3056040

Stop

(SUB FOR AT154140)

1шт.

36

TY22472

Clamp

(SUB FOR AT145651)

2шт.

37

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222 ( T H100996 NOT AVAILABLE FOR SERVICE))

1шт.

40

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

1шт.

42

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

44

H77698

Tie Band

ARшт.
