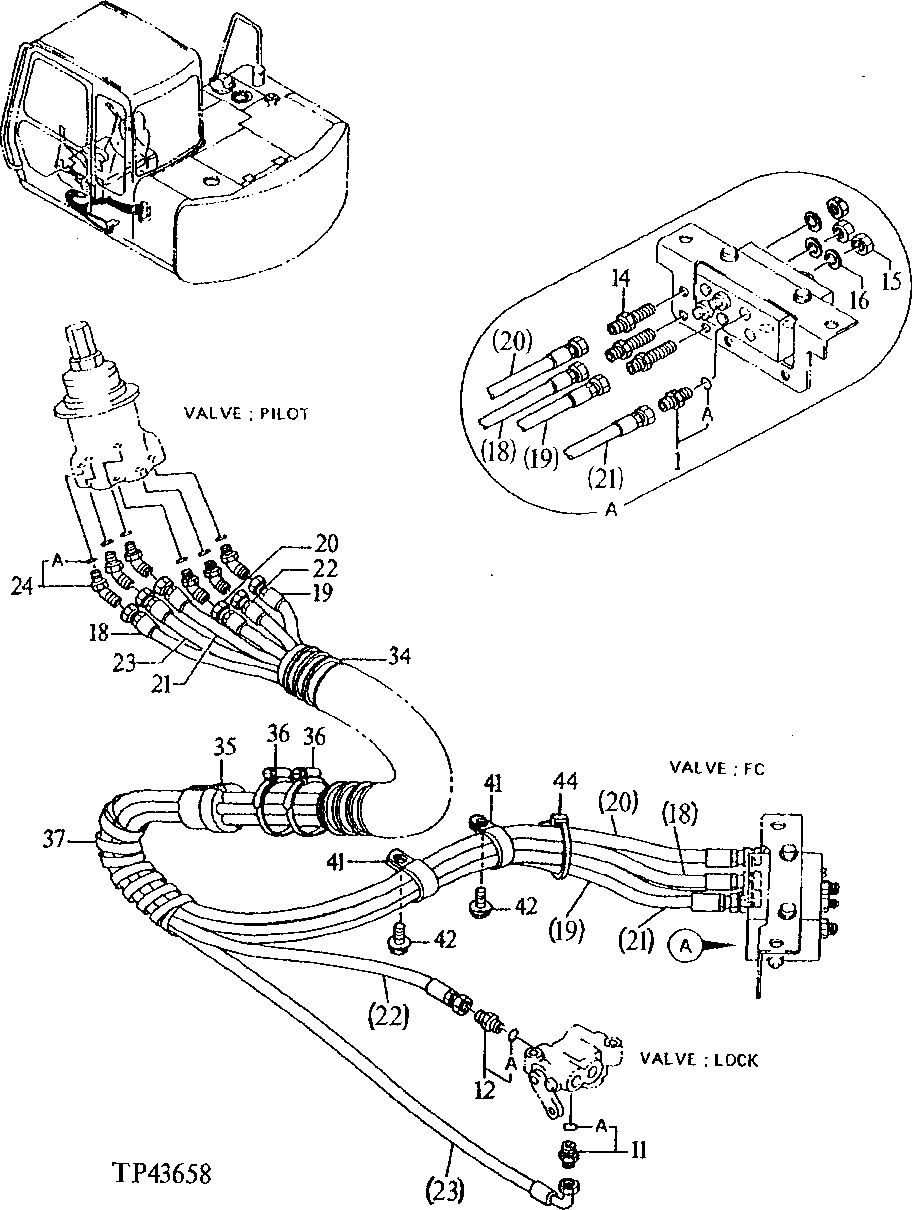

Запчасти John Deere 90E 187 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

1A

CH11570

O-Ring

1шт.

11

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

11A

CH11570

O-Ring

1шт.

12

4261938

Fitting

(SUB FOR AT154285)

1шт.

12A

CH11570

O-Ring

1шт.

14

R27238

Fitting

3шт.

15

14H888

Nut

9/16"

3шт.

16

12H294

Lock Washer

5/8"

3шт.

18

4320022

Hydraulic Hose

(SUB FOR AT200775)

1шт.

19

4320023

Hydraulic Hose

(SUB FOR AT200776)

1шт.

20

4320024

Hydraulic Hose

(SUB FOR AT200777)

1шт.

21

4320025

Hydraulic Hose

(SUB FOR AT200778)

1шт.

22

AT161994

Hose

9/16" X 1300 mm (51-1/4") X 9/16"

1шт.

23

AT161994

Hose

9/16" X 1300 mm (51-1/4") X 9/16"

1шт.

24

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

24A

M800650

Packing

1шт.

34

4319234

Conduit

(SUB FOR AT154270)

1шт.

35

3056040

Stop

(SUB FOR AT154140)

1шт.

36

TY22472

Clamp

(SUB FOR AT145651)

2шт.

37

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222 ( T H100996 NOT AVAILABLE FOR SERVICE))

1шт.

41

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

2шт.

42

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

44

H77698

Tie Band

ARшт.
