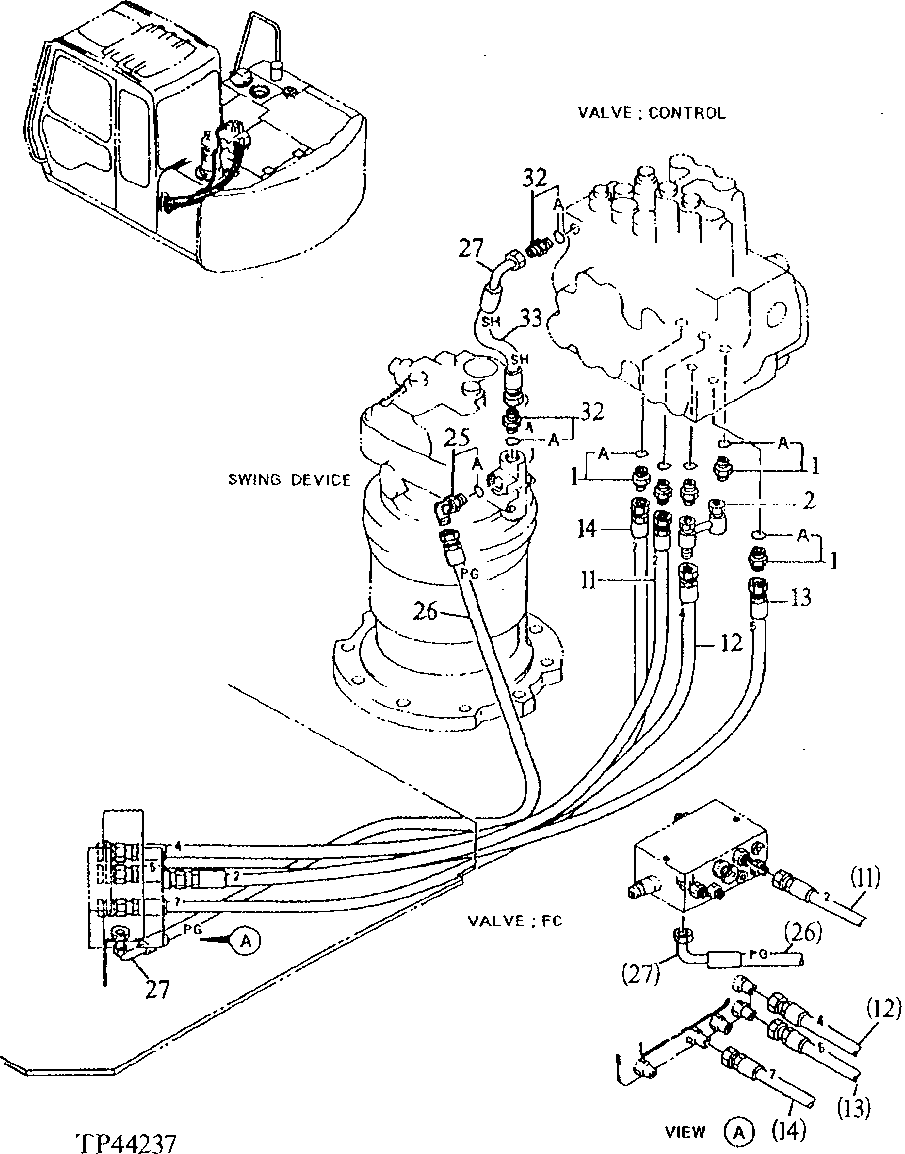

Запчасти John Deere 90E 185 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

4200466

Adapter Fitting

(SUB FOR TH108320)

5шт.

1A

CH11570

O-Ring

1шт.

2

8057492

Line

(SUB FOR AT164264)

1шт.

11

AT57860

Hydraulic Hose

9/16" X 1016 mm (40") X 9/16"

1шт.

12

AT57860

Hydraulic Hose

9/16" X 1016 mm (40") X 9/16"

1шт.

13

AT57860

Hydraulic Hose

9/16" X 1016 mm (40") X 9/16"

1шт.

14

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

25

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

25A

M800650

Packing

1шт.

26

AE42282

Hydraulic Hose

11.1252" X 899 mm (35-1/2") X 11.1252"

1шт.

27

AH89069

Elbow Fitting

2шт.

32

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

32A

M800650

Packing

1шт.

33

AR101376

Hydraulic Hose

11.1252" X 355 mm (14") X 11.1252"

1шт.
