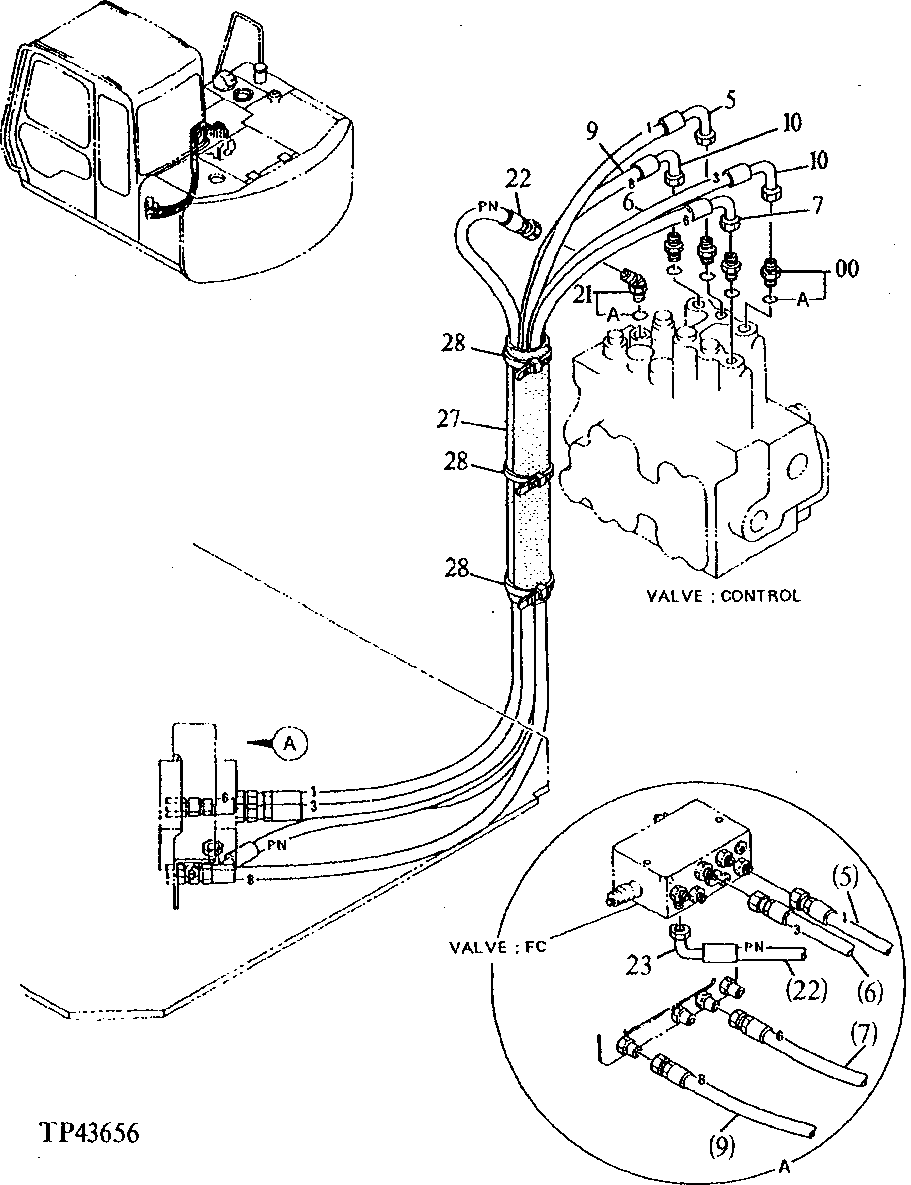

Запчасти John Deere 90E 184 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

0

4202422

Adapter Fitting

(SUB FOR TH108440)

4шт.

0A

CH11570

O-Ring

1шт.

5

AT72803

Hydraulic Hose

9/16" X 1498 mm (59") X 9/16"

1шт.

6

4447637

Hydraulic Hose

(SUB FOR AT71731)

1шт.

7

AT72803

Hydraulic Hose

9/16" X 1498 mm (59") X 9/16"

1шт.

9

AR103791

Hose

9/16" X 1625 mm (64") X 9/16"

1шт.

10

AE24616

Elbow Fitting

2шт.

21

4193826

Elbow Fitting

(SUB FOR TH106467)

1шт.

21A

M800650

Packing

1шт.

22

AT30743

Hydraulic Hose

11.1252" X 1625 mm (64") X 11.1252"

1шт.

23

AH89069

Elbow Fitting

1шт.

27

4217147

Isolator

(SUB FOR TH110676)

1шт.

28

H77698

Tie Band

3шт.
