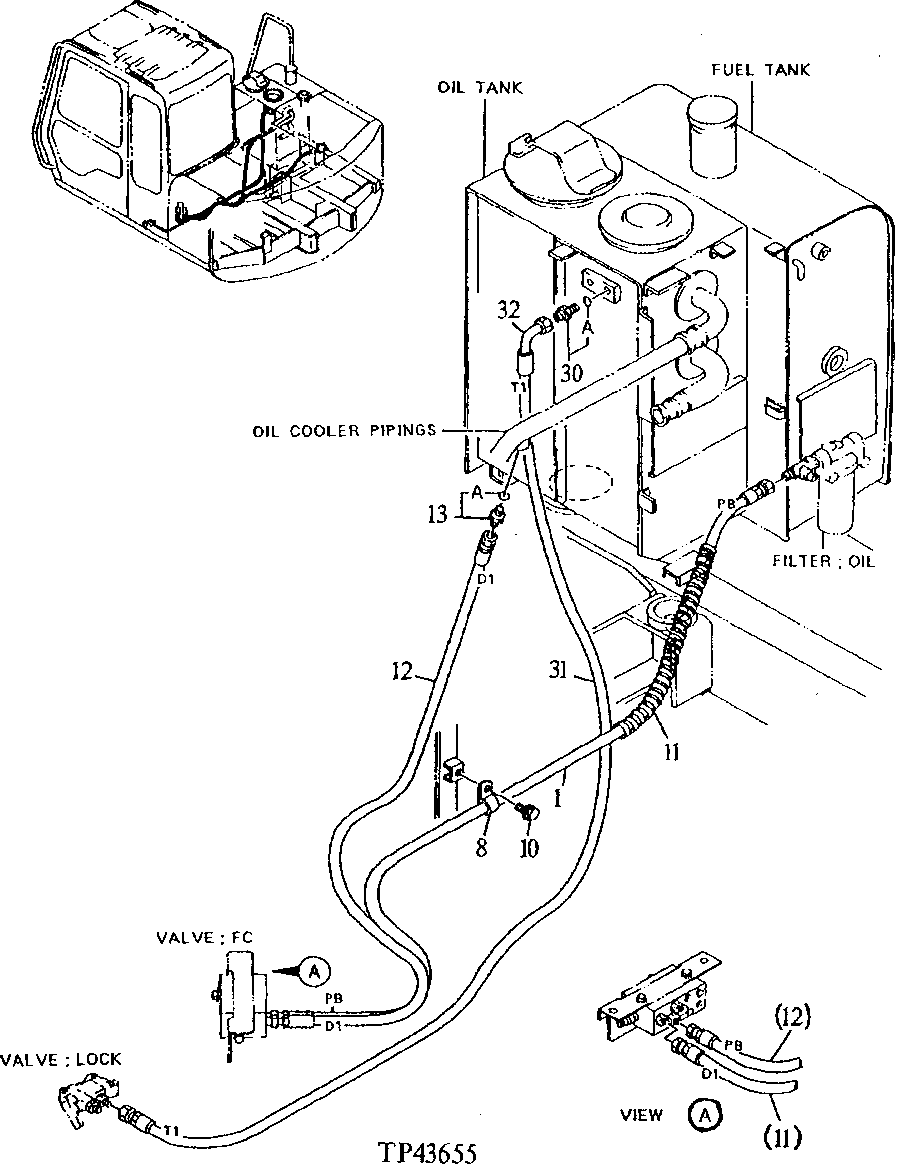

Запчасти John Deere 90E 183 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

4447637

Hydraulic Hose

SUB FOR AT71731

1шт.

8

T24432

Clamp

1шт.

10

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

11

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

1шт.

12

4447637

Hydraulic Hose

SUB FOR AT71731

1шт.

13

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

13A

CH11570

O-Ring

1шт.

30

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

30A

CH11570

O-Ring

1шт.

31

AE42000

Hydraulic Hose

9/16" X 2000 mm (78-3/4") X 9/16"

1шт.

32

AE24616

Elbow Fitting

1шт.
