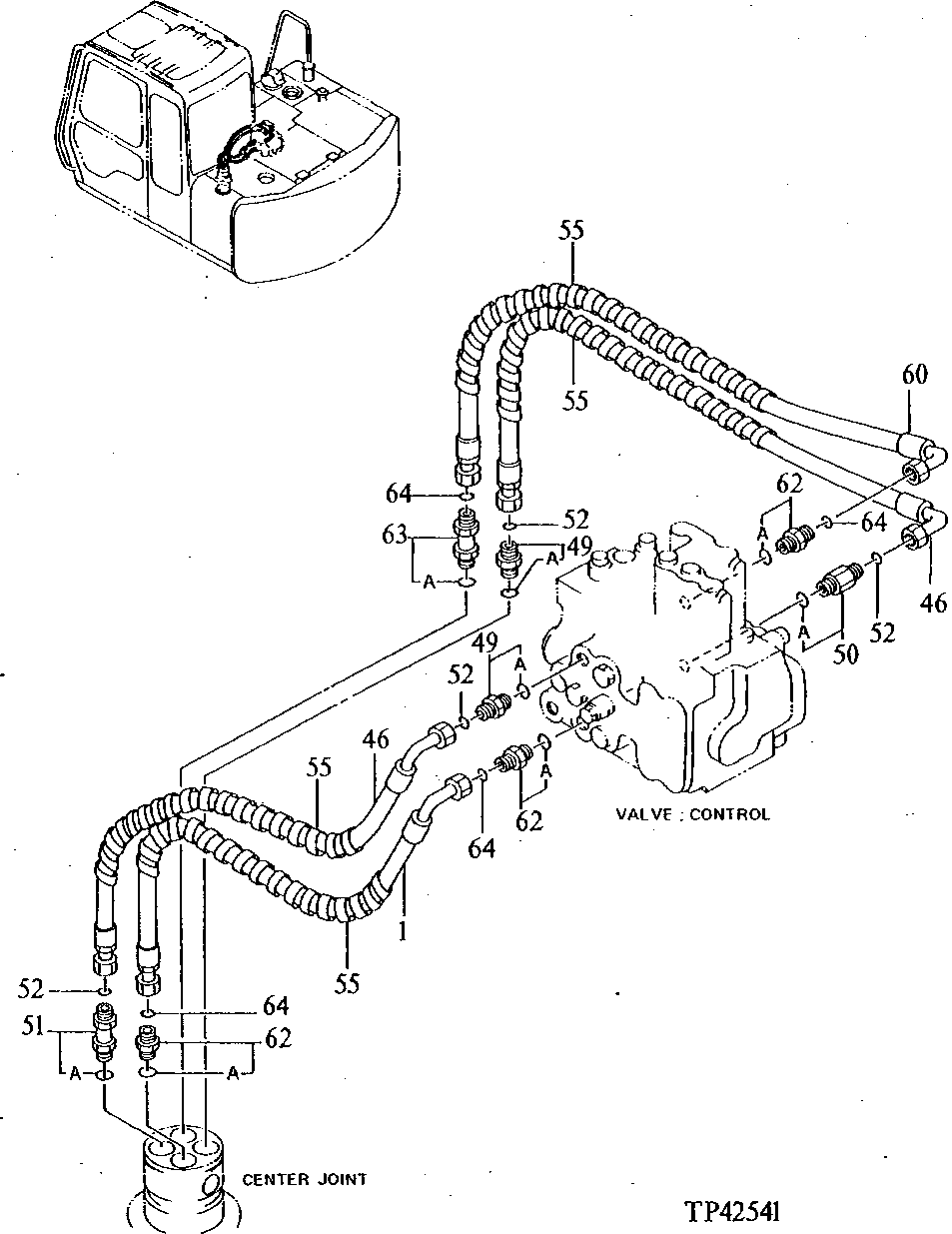

Запчасти John Deere 90E 181 - Main Pipings (Center Joint To Control Valve) 3360 HYDRAULIC SYSTEM

1

4210320

Hydraulic Hose

30.1752" X 750 mm (29-1/2") X 30.175 2" SUB FOR AT200750; SUB FOR AT130407

1шт.

46

AT200725

Hydraulic Hose

2шт.

49

4189602

Fitting

SUB FOR TH108350

2шт.

49A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

50

4197533

Adapter Fitting

SUB FOR AT200403

1шт.

50A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

51

4199247

Adapter Fitting

SUB FOR TH110569

1шт.

51A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

52

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

4шт.

55

Hose Guard

MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH SUB FOR AT138222; T H100996 NOT AVAILABLE FOR SERVICE

4шт.

60

4210322

Hydraulic Hose

30.1752" X 850 mm (33-1/2") X 30.175 2" SUB FOR AT200726; SUB FOR AT130409

1шт.

62

4197530

Adapter Fitting

SUB FOR TH109595

3шт.

62A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

63

4197532

Adapter Fitting

1шт.

63A

4235035

Adapter Fitting

1шт.

64

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

4шт.
