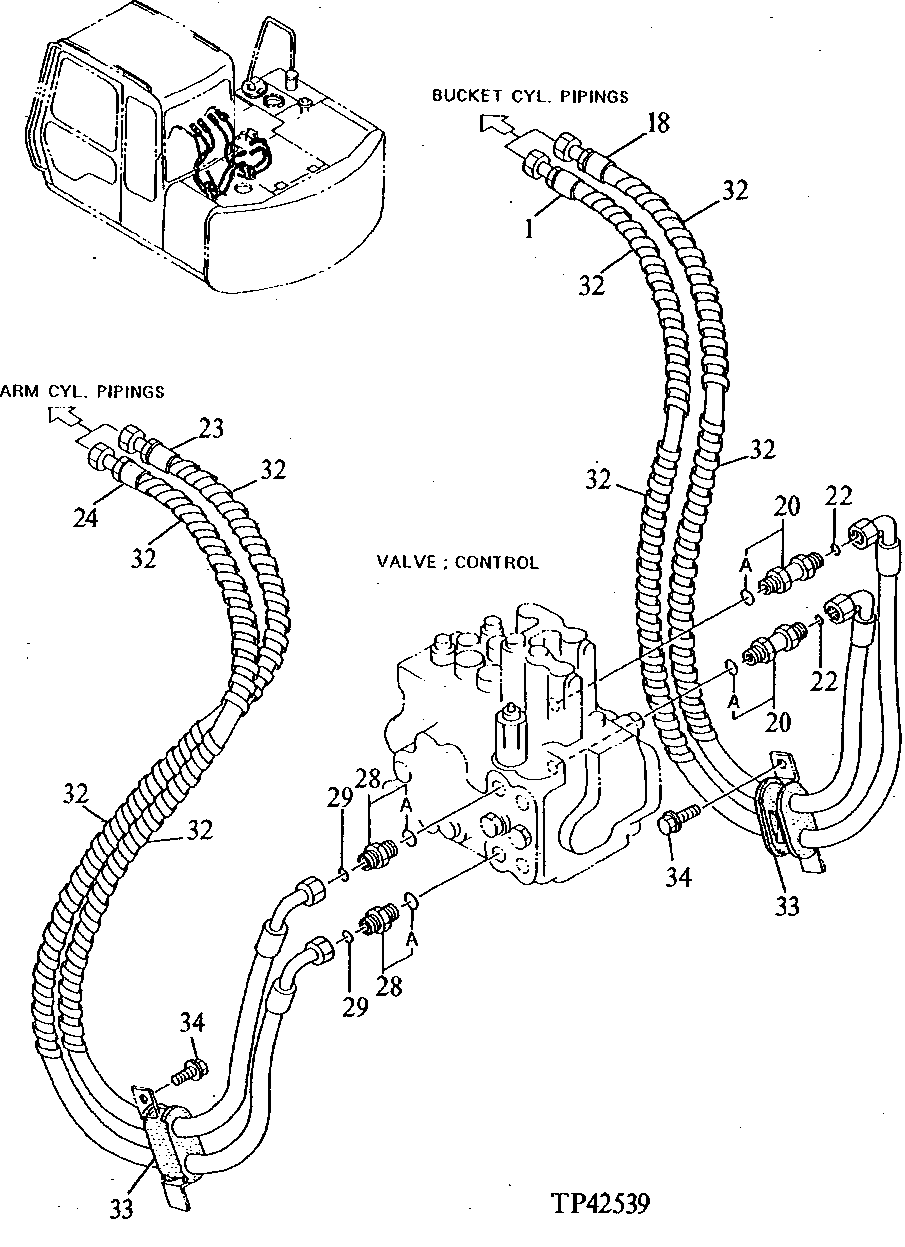

Запчасти John Deere 90E 179 - Main Pipings (Arm And Bucket Cylinders To Control Valve) 3360 HYDRAULIC SYSTEM

1

AT200732

Hydraulic Hose

13/16" X 1400 mm (55") X 13/16"

1шт.

18

AT200733

Hydraulic Hose

13/16" X 1300 mm (51-1/4") X 13/16"

1шт.

20

4199247

Adapter Fitting

(SUB FOR TH110569)

2шт.

20A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

22

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.

23

AT200735

Hydraulic Hose

13/16" X 1350 mm (53-1/4") X 13/16"

1шт.

24

AT200734

Hydraulic Hose

13/16" X 1450 mm (57") X 13/16"

1шт.

28

4189602

Fitting

(SUB FOR TH108350)

2шт.

28A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

29

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.

32

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

8шт.

33

3038206

Bushing

(SUB FOR TH110422)

2шт.

34

19M7872

Cap Screw

M12 X 25

2шт.

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.
