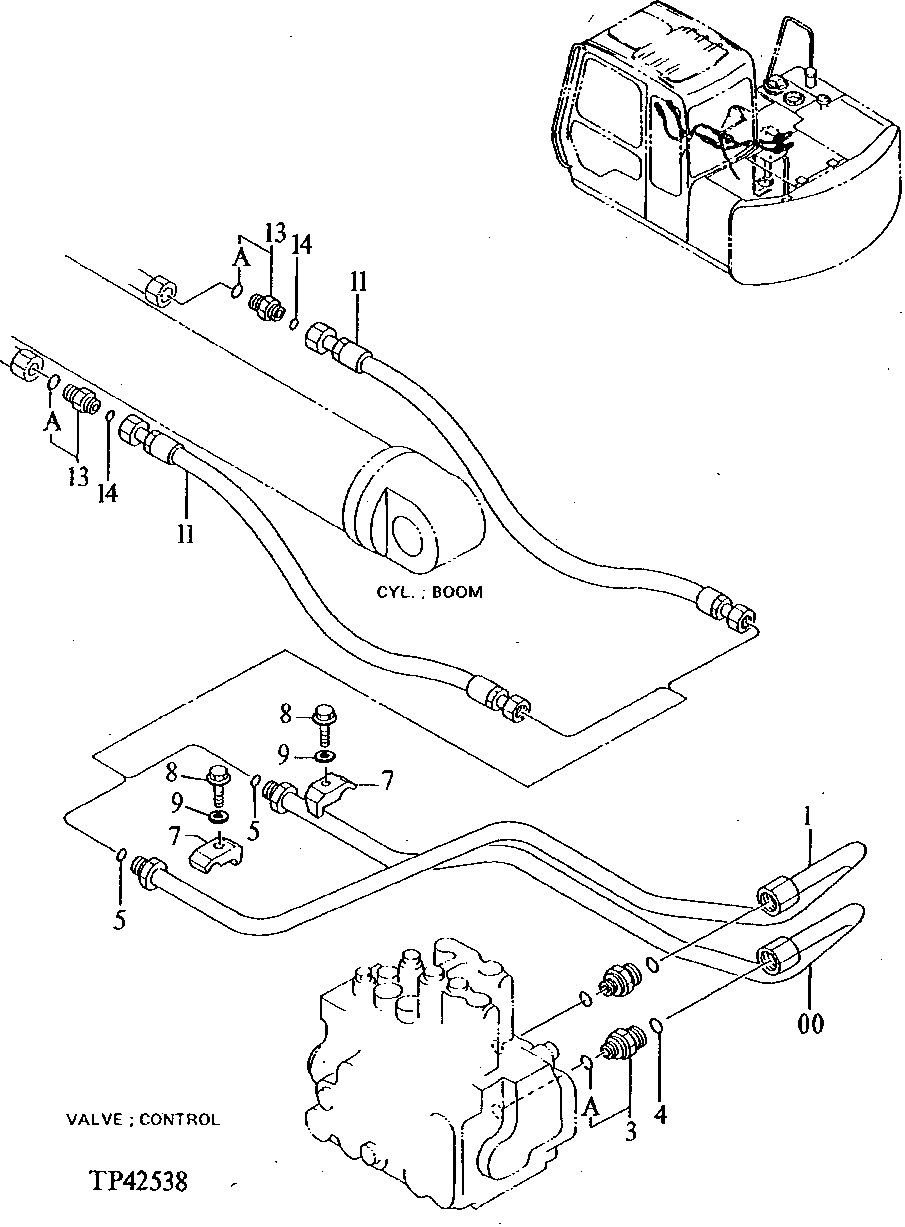

Запчасти John Deere 90E 178 - Main Pipings (Boom Cylinder To Control Valve) 3360 HYDRAULIC SYSTEM

0

8050829

Line

(SUB FOR AT200655)

1шт.

1

8050830

Line

(SUB FOR AT200656)

1шт.

3

4197530

Adapter Fitting

(SUB FOR TH109595)

2шт.

3A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

4

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

5

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.

7

4190125

Clamp

(SUB FOR TH108960)

2шт.

8

19M7496

Cap Screw

M12 X 45

2шт.

9

12H301

Lock Washer

1/2"

2шт.

11

AT200731

Hydraulic Hose

13/16" X 750 mm (29-1/2") X 13/16"

2шт.

13

4189602

Fitting

(SUB FOR TH108350)

2шт.

13A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

14

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.
