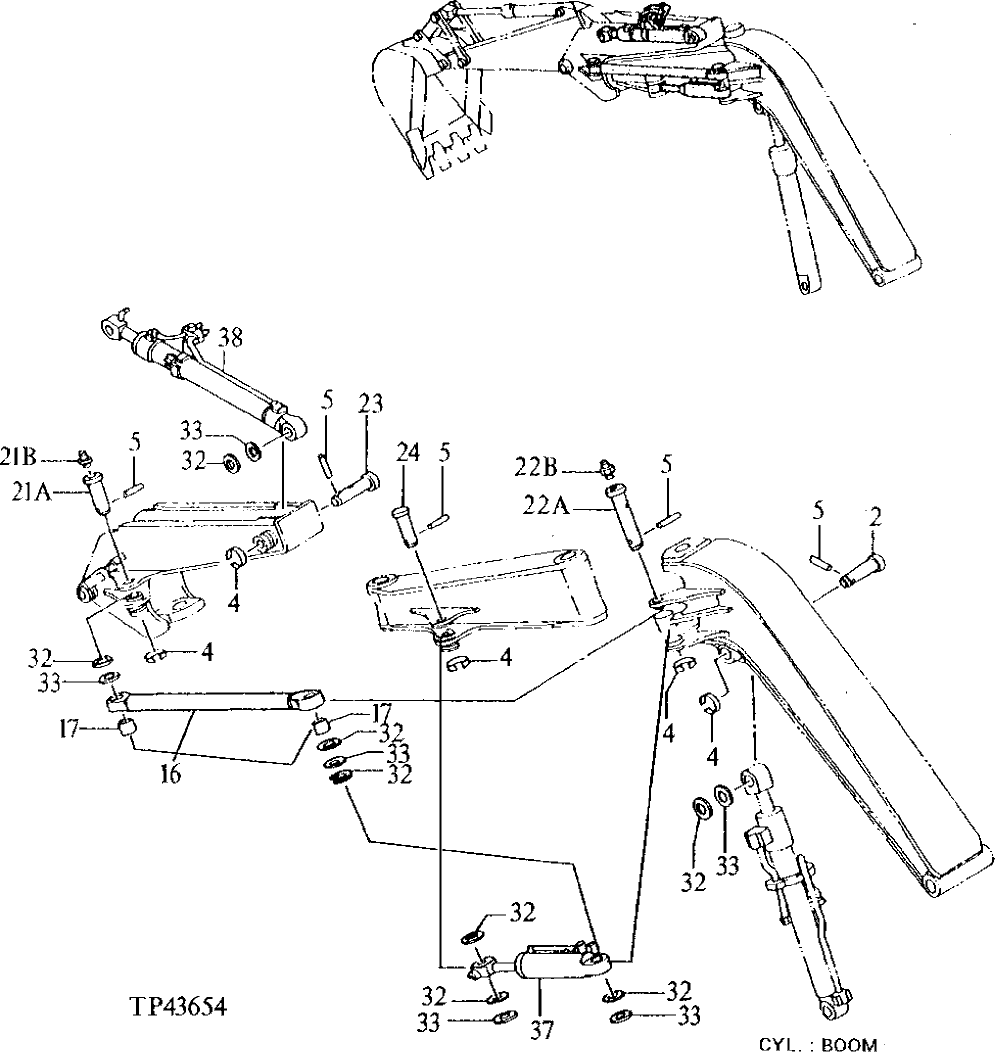

Запчасти John Deere 90E 177 - OFFSET BOOM 3344 FRAMES 3340

2

3055536

Pin Fastener

(SUB FOR AT200379)

1шт.

4

4065688

Retainer

(SUB FOR TH100624)

5шт.

5

4065689

Pin Fastener

17.500 X 81 mm (0.689" X 3.189") (SUB FOR TH100625)

5шт.

16

9078948

Support

(SUB FOR TH110986)

1шт.

17

4128479

Bushing

(SUB FOR TH106015)

2шт.

21A

3040621

Pin Fastener

55 X 161 mm (2.165" X 6. 339") (SUB FOR TH110440)

1шт.

21B

TH100074

Lubrication Fitting

1шт.

22A

3040620

Pin Fastener

55 X 326 mm (2.165" X 12 .835") (SUB FOR TH110439)

1шт.

22B

TH100074

Lubrication Fitting

1шт.

23

3061145

Pin Fastener

(SUB FOR AT200390)

1шт.

24

3055930

Pin Fastener

(SUB FOR AT200382)

1шт.

32

4180196

Washer

56 X 100 X 1.200 mm (2.205" X 3-15/ 16" X 3/64") (SUB FOR TH108046)(1.2)

8шт.

33

4042135

Washer

56 X 100 X 2.300 mm (2.205" X 3-15/1 6" X 0.091") (SUB FOR TH105940)(2.3)

6шт.

37

4290916

Cylinder

(SUB FOR AT200507)(OFFSET)

1шт.

38

4295802

Cylinder

(SUB FOR AT200518)(ARM)

1шт.
