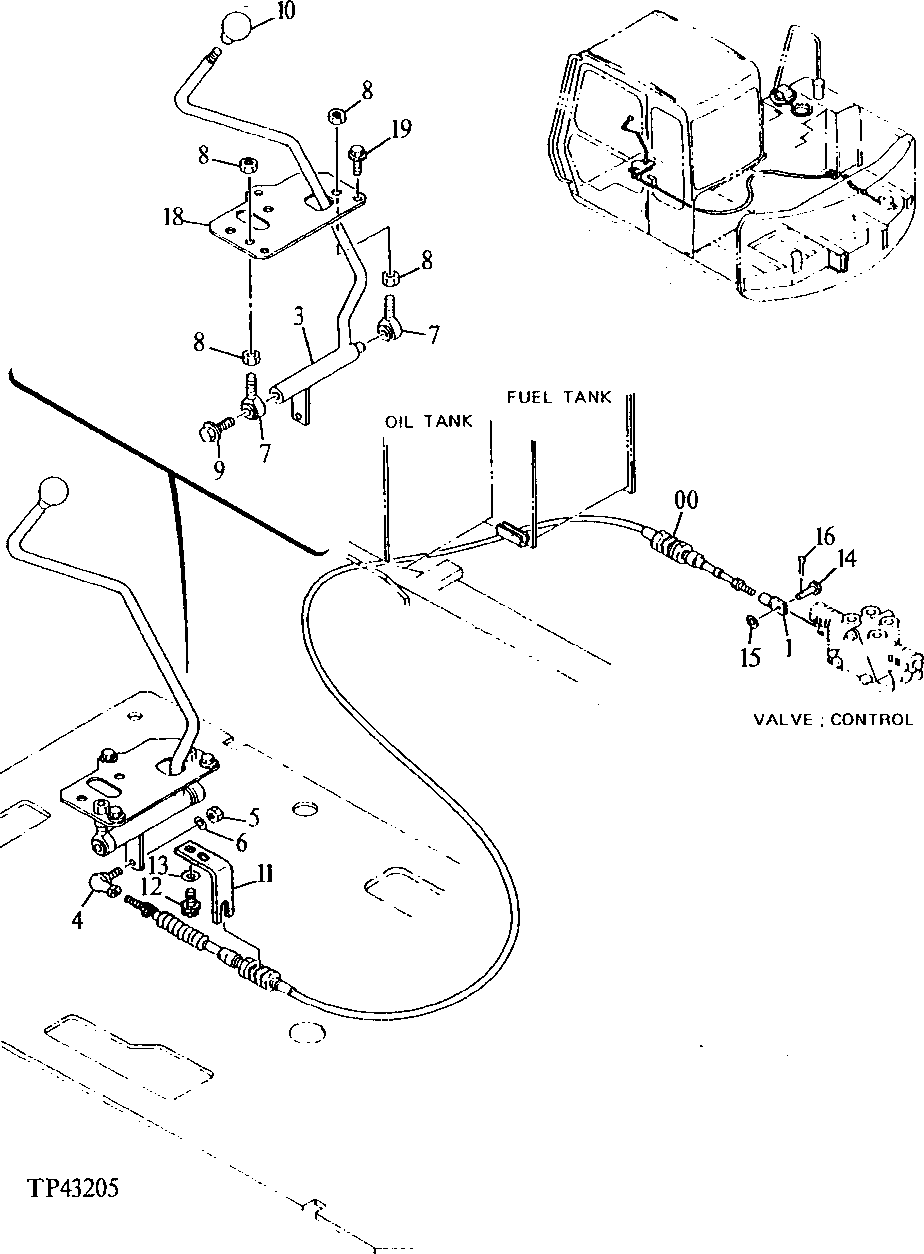

Запчасти John Deere 90E 171 - Blade Control Lever 3315 Control Linkage

0

4274665

Cable

(SUB FOR AT200465)

1шт.

1

4242315

Tie Rod End

(SUB FOR AT200415)

1шт.

3

8055218

Lever

(SUB FOR AT200684)

1шт.

4

T110021

Ball Joint Socket

1шт.

5

14M7273

Nut

M8

1шт.

6

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

7

4041959

Link End

(SUB FOR TH103790)

2шт.

8

14M7345

Nut

M14 (SUB FOR J952014 ) (SUB FOR TH103791)

4шт.

9

19M7493

Cap Screw

M12 X 40

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

24M7345

Washer

13.500 X 24 X 2.500 mm

1шт.

10

4117704

Knob

(SUB FOR TH100591)

1шт.

11

Bracket

( AT200545 NO LONGER AVAILABLE) (SUB AT1699 43, ALONG WITH (2) 19M8011 AND (2) 12M7067)

1шт.

4342305

Angle

(SUB FOR AT169943)

1шт.

12

19M7872

Cap Screw

M12 X 25 (USE WITH AT200545 BRACKET)

2шт.

12H301

Lock Washer

1/2" (USE WITH AT200545 BRACKET)

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)(U SE WITH AT169943 BRACKET)

2шт.

19M8011

Cap Screw

M12 X 30 (USE WITH AT169943 BRACKET)

2шт.

13

24M7345

Washer

13.500 X 24 X 2.500 mm

2шт.

14

0295608

Pin

(SUB FOR TH108148)

1шт.

15

24M7043

Washer

12 X 25 X 3 mm (SUB FO R TH108149 OR 0295609)

1шт.

16

11M7075

Cotter Pin

1.200 X 12 mm (SUB FOR TH108150)

1шт.

18

4288725

Plate

(SUB FOR AT200501)

1шт.

3072527

Plate

(SUB FOR AT171943)

1шт.

19

19M7662

Cap Screw

M10 X 30

3шт.

12M7066

Lock Washer

10 mm

3шт.
