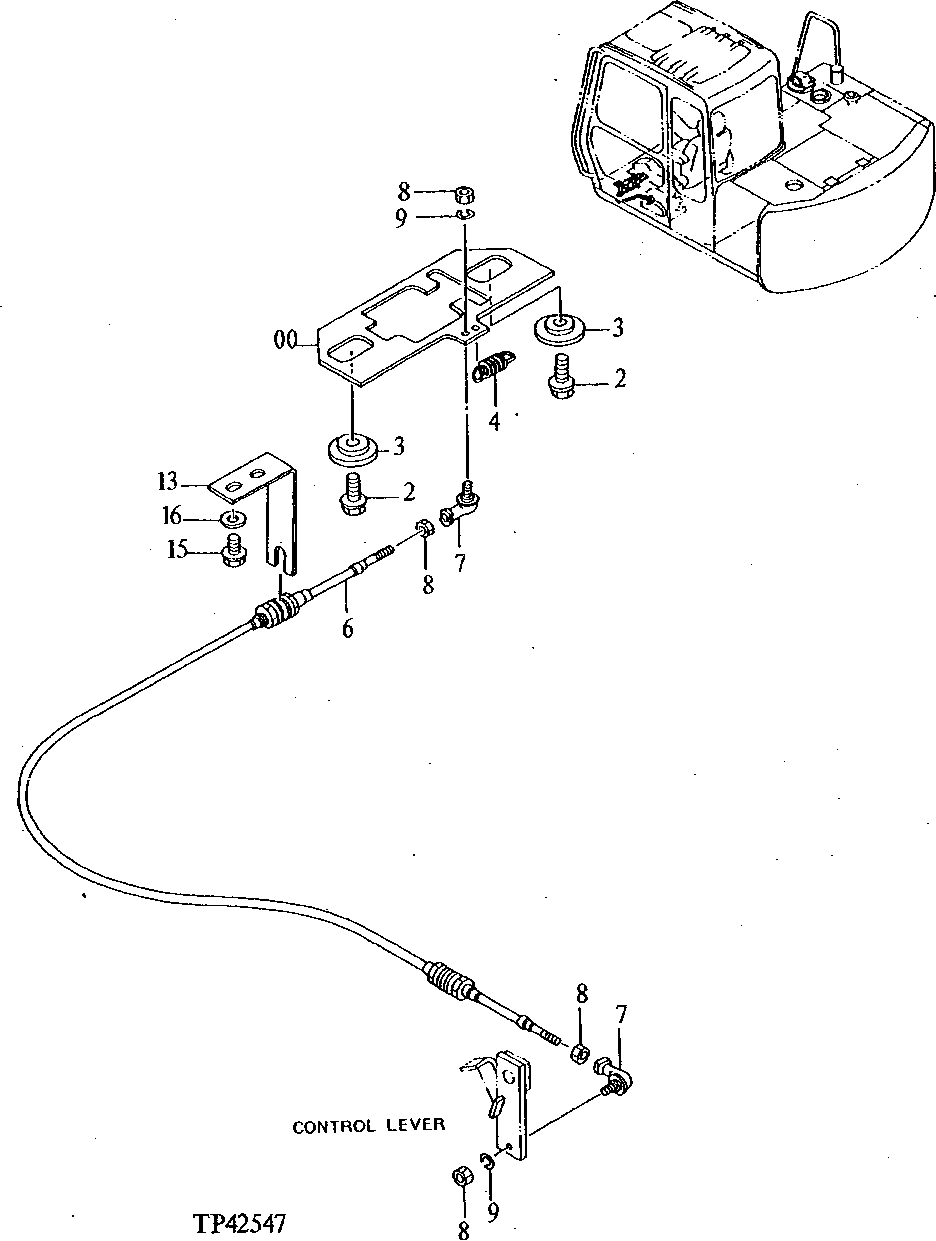

Запчасти John Deere 90E 169 - CONTROL LEVER LOCK 3315 Control Linkage

0

3057656

Lock Plate

(SUB FOR AT200385)

1шт.

2

19M8011

Cap Screw

M12 X 30

2шт.

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

3

4274220

Bushing

12.500 X 29.500 X 12 mm (0.492" X 1.161" X 0.472") (SUB FOR AT200459)

2шт.

4

4277678

Spring

(SUB FOR AT200474)

1шт.

6

4284319

Cable

(SUB FOR AT200488)

1шт.

7

4056016

Ball Joint

(SUB FOR TH100325)

2шт.

8

14M7297

Nut

M5

4шт.

9

12M7064

Lock Washer

5 mm

2шт.

13

4274647

Bracket

(SUB FOR AT200462)

1шт.

15

19M7872

Cap Screw

M12 X 25

2шт.

12H301

Lock Washer

1/2"

2шт.

16

24M7345

Washer

13.500 X 24 X 2.500 mm

2шт.
