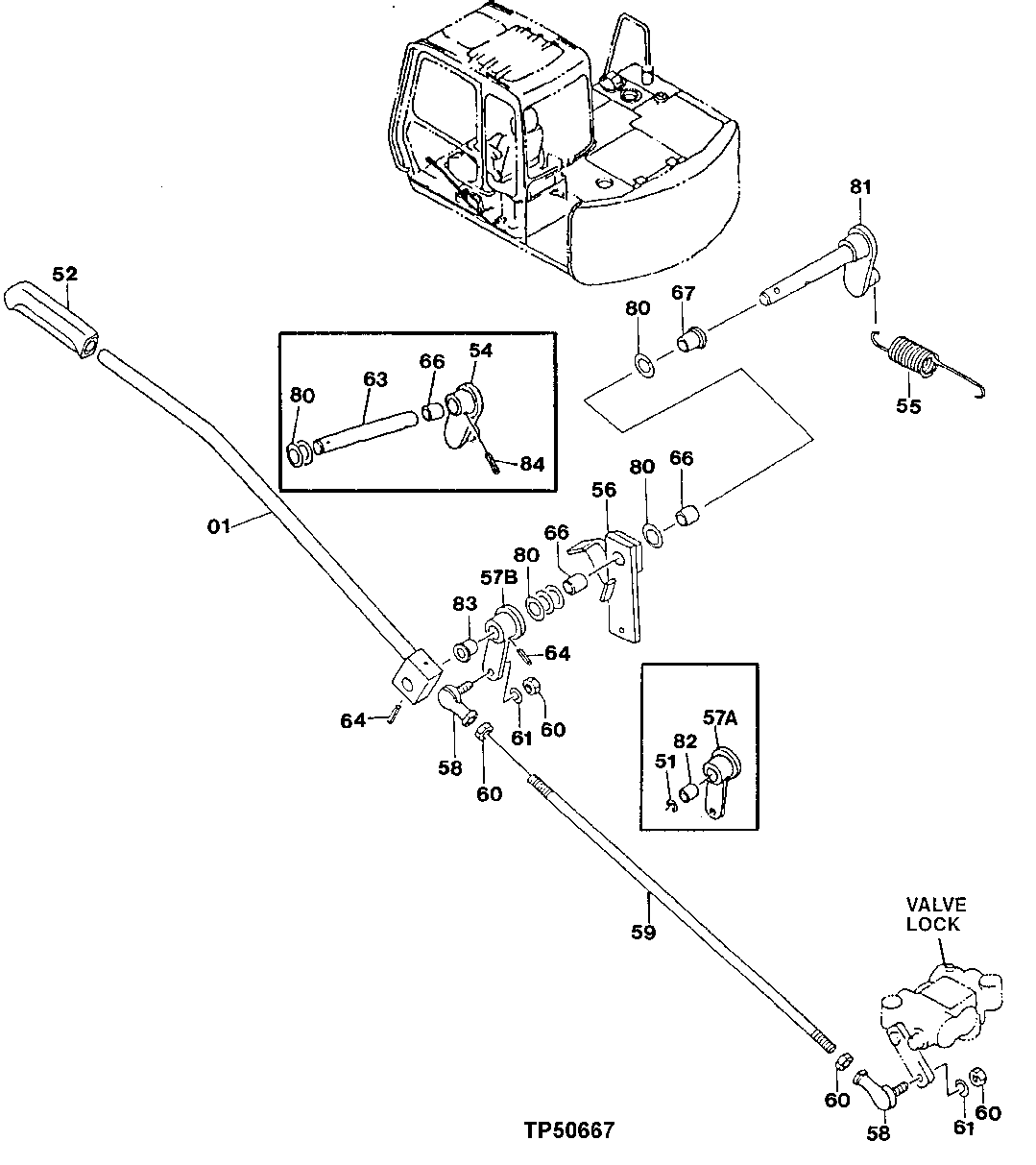

Запчасти John Deere 90E 167 - Control Lever 3315 Control Linkage

1

8050900

Lever

(SUB FOR AT154503)

1шт.

51

24M7053

Washer

17 X 30 X 3 mm (USE WITH AT154550)

1шт.

52

3051611

Grip

(SUB FOR AT154122)

1шт.

54

9739716

Link

(SUB FOR AT200716)

1шт.

55

4189184

Extension Spring

(SUB FOR TH108392)

1шт.

56

8053432

Link

(SUB FOR AT200662)

1шт.

57A

9738059

Link

(SUB FOR AT154550)

1шт.

57B

9743595

Lever

(SUB FOR AT177400)

1шт.

58

T110021

Ball Joint Socket

2шт.

59

4259591

Rod

(SUB FOR AT154262)

1шт.

60

14M7273

Nut

M8

4шт.

61

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

63

4259592

Pin

(SUB FOR AT154263)

ARшт.

64

34M7225

Spring Pin

8 X 28 mm (SUB FOR 34M6402)

2шт.

66

4259767

Bushing

(SUB FOR AT154271)

2шт.

67

4341810

Bushing

16.100 X 20.100 X 12 mm (0.63 4" X 0.791" X 0.472") (USE WIT H AT181699 ) (SUB FOR AT177401 )

2шт.

80

4081592

Shim

(SUB FOR TH102030)

5шт.

81

9747605

Link

(SUB FOR AT181699)

ARшт.

82

4259767

Bushing

(USE WITH AT154550 ) (SUB FOR AT154271)

1шт.

83

4341810

Bushing

16.100 X 20.100 X 12 mm (0.63 4" X 0.791" X 0.472") (USE WIT H AT177400 ) (SUB FOR AT177401 )

1шт.

84

34M7225

Spring Pin

8 X 28 mm (USE WITH AT20 0716 ) (SUB FOR 34M6402)

1шт.
