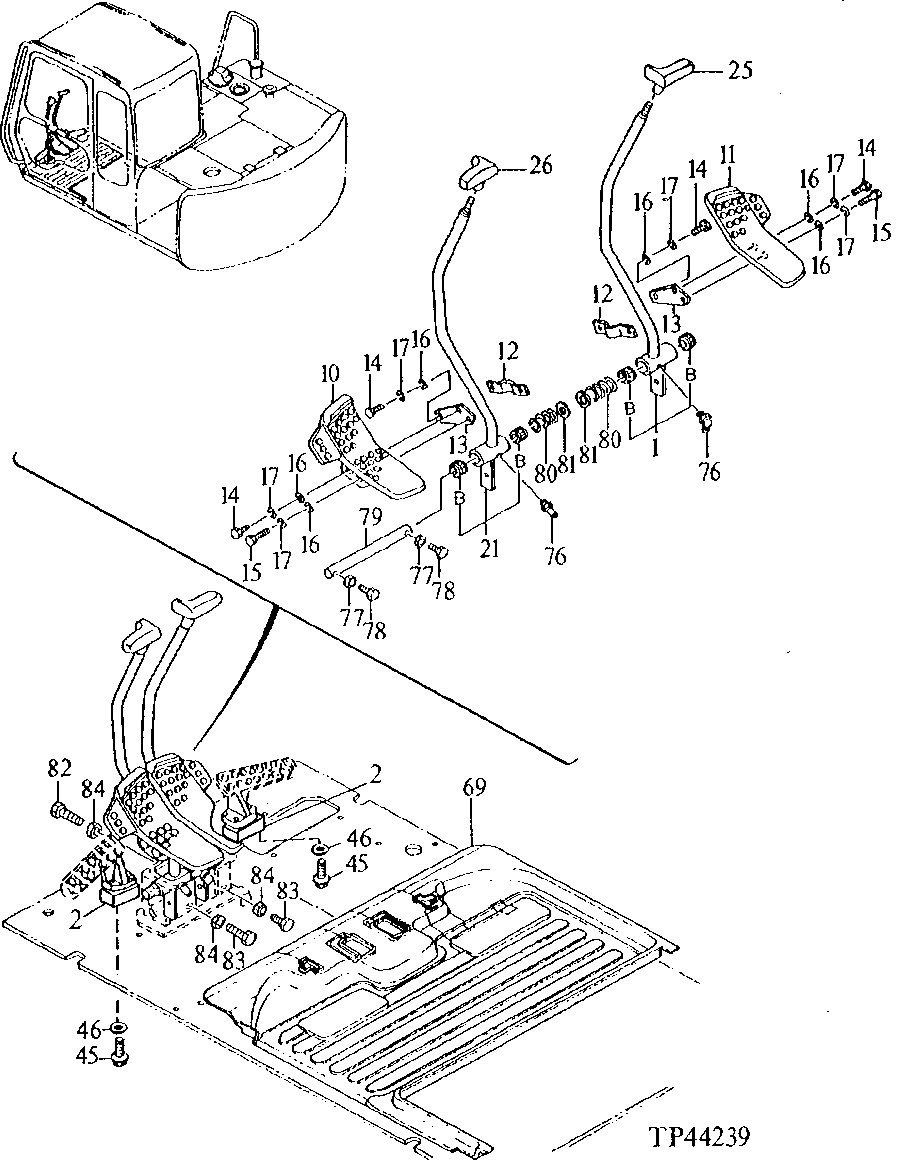

Запчасти John Deere 90E 166 - Control Lever 3315 Control Linkage

1

9114138

Lever

(SUB FOR AT200704)

1шт.

1B

4063692

Needle Bearing

(SUB FOR TH103818)

2шт.

2

4322824

Spacer

(SUB FOR AT163712)

2шт.

10

1024224

Pedal

(SUB FOR AT154053)(USE IF AVAILABLE)

1шт.

1024224

Pedal

(SUB FOR AT154053 ) (SUB FOR AT202291)

1шт.

11

1024384

Pedal

(SUB FOR AT154054)(USE IF AVAILABLE)

1шт.

1024384

Pedal

(SUB FOR AT154054 ) (SUB FOR AT202292)

1шт.

12

4300922

Support

(SUB FOR AT200526)

2шт.

13

4321861

Bracket

(SUB FOR AT200608)

2шт.

14

T116333

Bolt

M10 X 30

4шт.

15

19M8012

Cap Screw

M10 X 45 (SUB FOR 19M7917)

2шт.

16

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

17

12M7066

Lock Washer

10 mm

6шт.

21

9114140

Lever

(SUB FOR AT200705)

1шт.

21B

4063692

Needle Bearing

(SUB FOR TH103818)

2шт.

25

2030249

Grip

(SUB FOR AT154077)

1шт.

26

2030254

Grip

(SUB FOR AT154078)

1шт.

45

19M8655

Cap Screw

M10 X 55

6шт.

46

12M7066

Lock Washer

10 mm

6шт.

69

0001309

Mat

(SUB FOR AT200139)

1шт.

76

T116334

Lubrication Fitting

2шт.

77

14M7274

Nut

M10

2шт.

78

19M7662

Cap Screw

M10 X 30

2шт.

79

4201336

Pin Fastener

20 X 240 mm (0.787" X 9. 449") (SUB FOR TH110572)

1шт.

80

4081592

Shim

(SUB FOR TH102030)

8шт.

81

24M7051

Washer

21 X 37 X 3 mm

2шт.

82

19M7496

Cap Screw

M12 X 45

2шт.

83

19M7363

Cap Screw

M12 X 60

2шт.

84

14M7275

Nut

M12

4шт.
