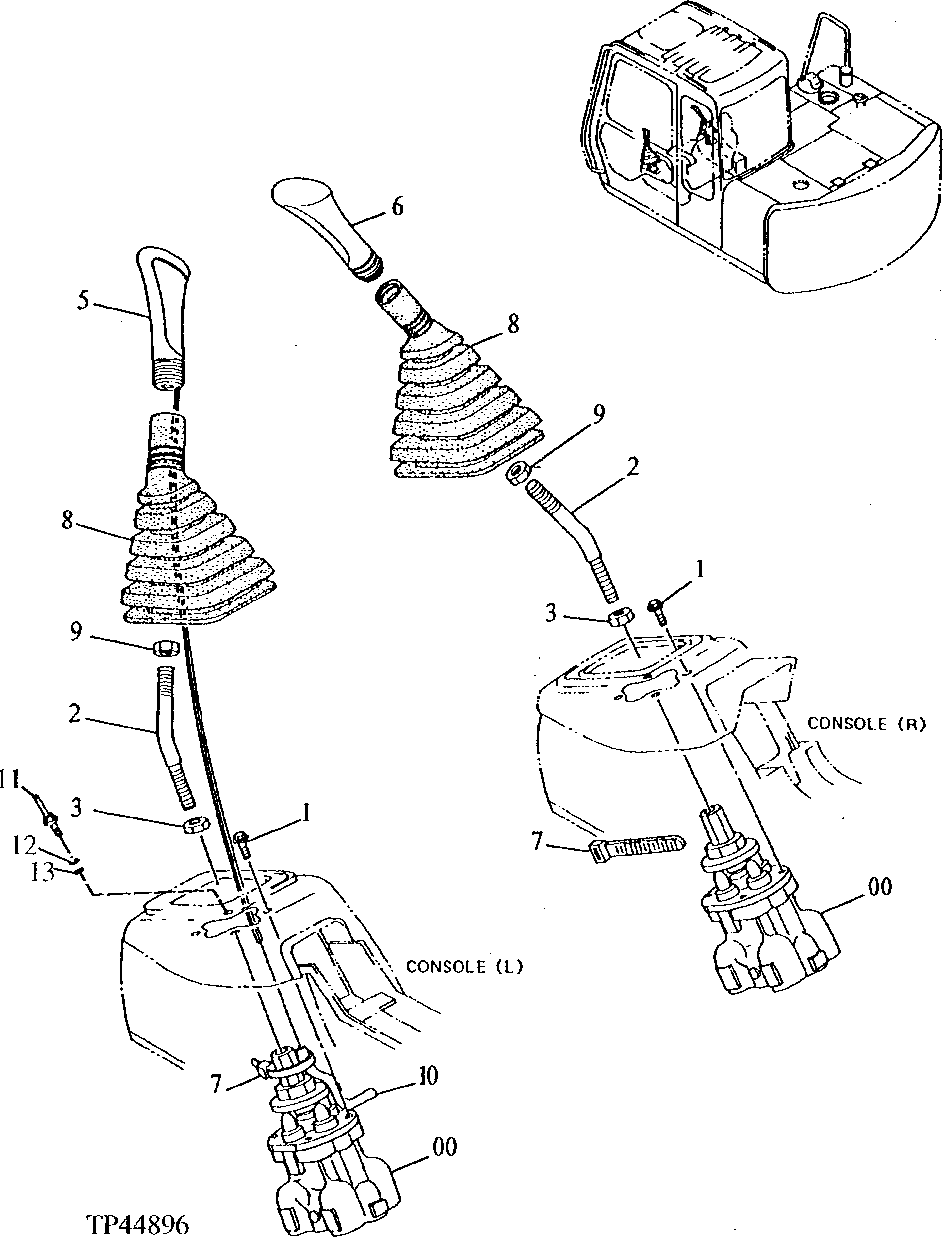

Запчасти John Deere 90E 165 - Control Lever 3315 Control Linkage

0

AT154525

Hyd Actuated Control Valve

NLA (ORDER AT189841)

2шт.

AT189841

Hyd/Pilot Cntl Valve Reman

(REMAN FOR AT154525) (USE AT 154525 IF AVAILABLE), (PILOT)

2шт.

1

19M7407

Cap Screw

M8 X 25

7шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

7шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

7шт.

2

4284522

Lever

(SUB FOR AT154379)

2шт.

3

14M7141

Nut

M14

2шт.

5

Grip

(INCLUDES HORN SWITCH) ( AT163880 NO LONGER AVAILABLE) (SUB AT167505, ALONG WITH 34M7086 AND AT177372)

1шт.

2033123

Grip

(SUB FOR AT167505)(INCLUDES HORN SWITCH)

1шт.

6

2031487

Grip

(SUB FOR AT154084)

1шт.

7

H77698

Tie Band

(USE AS REQUIRED)

3шт.

8

2038578

Boot

(SUB FOR AT154080)

2шт.

9

14M7357

Nut

M12

2шт.

10

4300772

Tube

(SUB FOR AT200522)

1шт.

11

19M7407

Cap Screw

M8 X 25

1шт.

34M7086

Spring Pin

3 X 32 mm (SUB FOR 43396 21)(ALONG WITH 4342802)

1шт.

34M7086

Spring Pin

3 X 32 mm (SUB FOR 4339 621, ALONG WITH 4342802

1шт.

4342802

Screw

(SUB FOR 4339621, ALONG WITH 34M7086)

1шт.

12

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

13

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.
