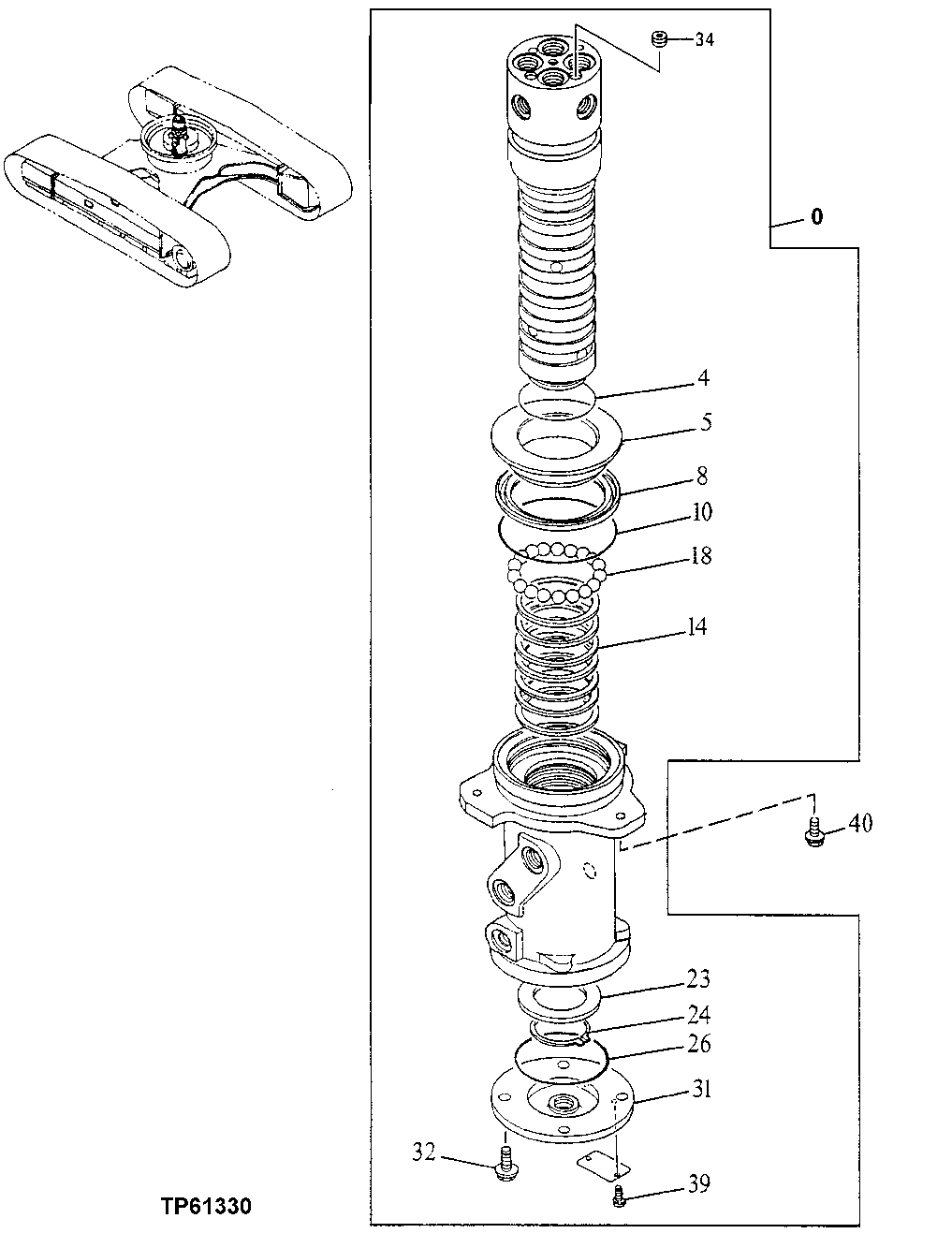

Запчасти John Deere 90E 8 - Rotary Manifold (Blade) 0260 HYDRAULIC SYSTEM

0

AT200706

Manifold

ROTARY, NLA (ORDER AT182280)

1шт.

AT182280

Manifold Reman

(REMAN FOR AT200706)

1шт.

4

AT264419

O-Ring

(SUB FOR U46456 OR A810085)

1шт.

5

4193261

Cover

(SUB FOR TH110502)

1шт.

8

4196169

Seal

(SUB FOR TH110538)(DUST)

1шт.

10

AT264271

O-Ring

(SUB FOR AT154736)

1шт.

14

AT154162

Seal

7шт.

18

972658

Ball

(SUB FOR T38788)

18шт.

23

3070250

Ring

(SUB FOR TH110503 ) (SUB FOR AT203646)

1шт.

24

40M7048

Snap Ring

1шт.

26

CH16109

Packing

1шт.

31

2034607

Cover

(SUB FOR AT154083 ) (SUB FOR AT170452)

1шт.

32

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

34

94-2012

Fitting Plug

(SUB FOR TH100653)

2шт.

39

37H99

Screw

0.100" X 1/4"

2шт.

40

19M8011

Cap Screw

M12 X 30

3шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

3шт.
