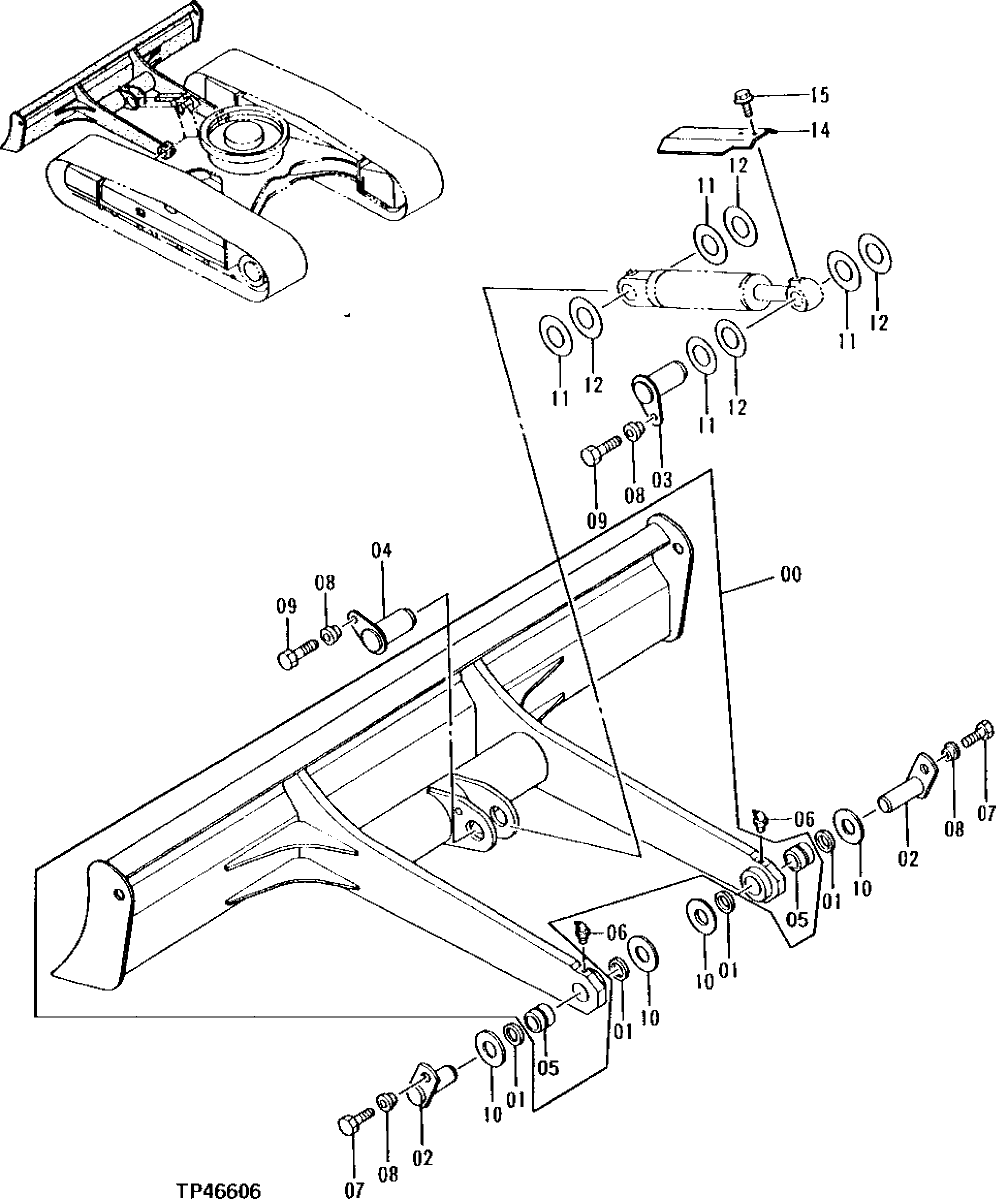

Запчасти John Deere 90E 154 - Blade (010333 - ) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

0

8062560

Blade

NLA, SUB FOR AT171932 Convenience Assembly

1шт.

1

4082194

Seal

SUB FOR AT120759

4шт.

2

9744509

Pin Fastener

SUB FOR AT171935

2шт.

3

9744510

Pin Fastener

SUB FOR AT171936

1шт.

4

9744511

Pin Fastener

SUB FOR AT171937

1шт.

5

4350531

Bushing

SUB FOR AT171934

2шт.

6

T116334

Lubrication Fitting

2шт.

7

19M8035

Cap Screw

M16 X 35

1шт.

8

4350527

Bushing

SUB FOR AT171938

4шт.

9

19M7488

Cap Screw

M16 X 40

2шт.

10

4082148

Washer

51 X 110 X 1 mm (2.008" X 4.3 31" X 0.039") SUB FOR AT126192

4шт.

11

4350528

Shim

SUB FOR AT171939

4шт.

12

4350529

Washer

SUB FOR AT171940

4шт.

14

4350530

Cover

SUB FOR AT171941

1шт.

15

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.
