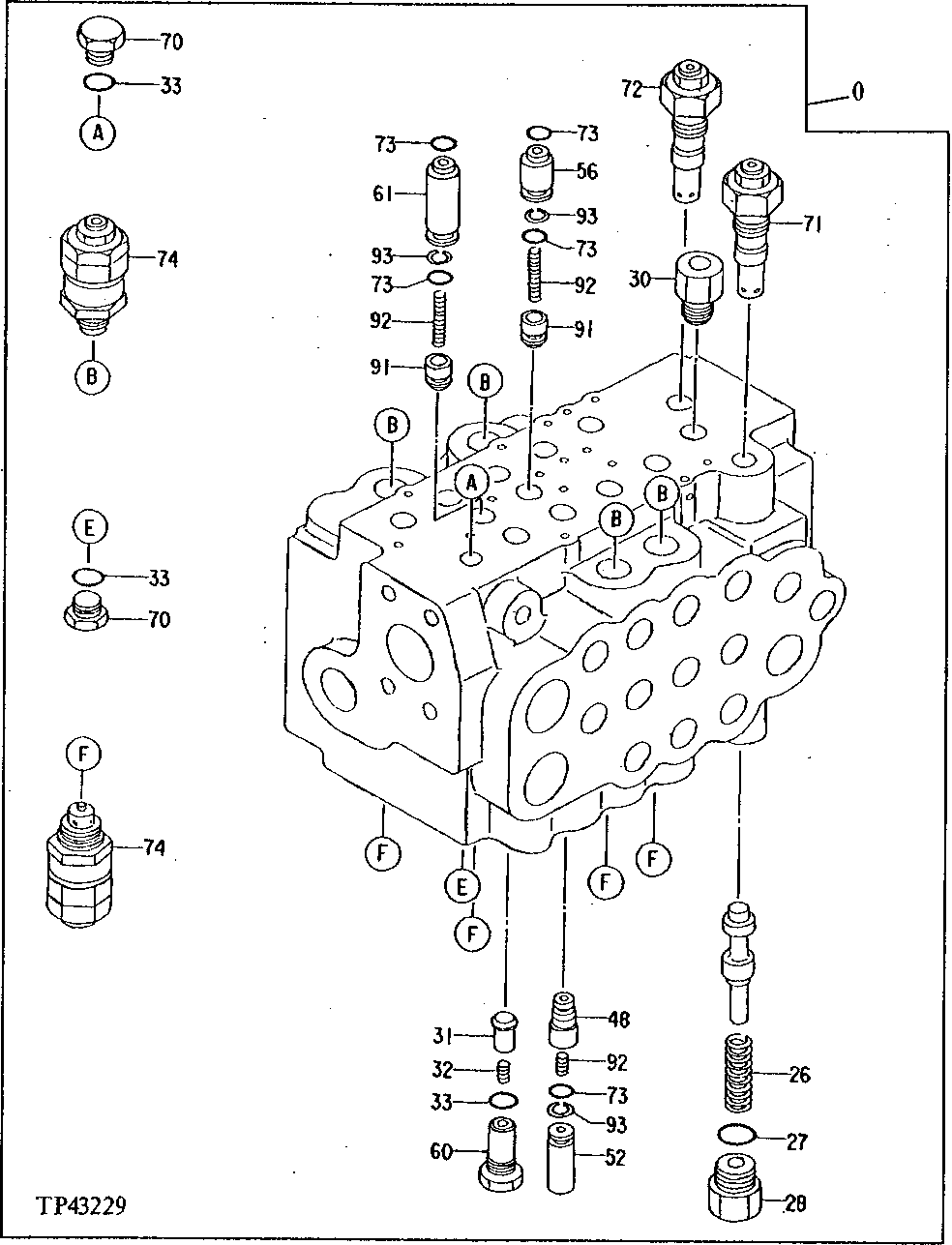

Запчасти John Deere 90E 151 - Control Valve (Offset Boom) 2160 HYDRAULIC SYSTEM

0

4325343

Hyd Actuated Control Valve

(SUB FOR AT200544 ) (SUB FOR AT163680)( CONTAINS ALL ITEMS ON THIS PAGE - ADDITI ONAL COMPONENTS LISTED ON PREVIOUS PAGES )

1шт.

26

0332908

Spring

(SUB FOR TH110309)

1шт.

27

R26906

O-Ring

19.177 X 2.464 mm (0.755" X 0.097")

1шт.

28

0332909

Drain Plug

(SUB FOR TH110310)

1шт.

30

0332911

Drain Plug

(SUB FOR TH110312)

1шт.

31

0455201

Poppet

(SUB FOR AT200317)

1шт.

32

0455202

Spring

(SUB FOR AT200318)

1шт.

33

CH11570

O-Ring

3шт.

48

0455204

Poppet

(SUB FOR AT200320)

1шт.

52

0455205

Piston

(SUB FOR AT200321)

1шт.

56

0332927

Plug

(SUB FOR TH110328)

1шт.

60

0455206

Fitting Plug

(SUB FOR AT200322)

1шт.

61

0332932

Plug

(SUB FOR TH110333)

1шт.

70

0218608

Drain Plug

(SUB FOR TH110243)

2шт.

71

4307373

Pressure Relief Valve

(SUB FOR AT200553)

1шт.

72

4307374

Pressure Relief Valve

(SUB FOR AT200554)

1шт.

73

4140438

O-Ring

12.300 X 2.400 mm (31/64" X 3/32") (SUB FOR TH110456)

5шт.

74

4306947

Pressure Relief Valve

(SUB FOR AT200552)

8шт.

91

0332941

Poppet

(SUB FOR TH110342)

2шт.

92

0455207

Spring

(SUB FOR AT200323)

3шт.

93

4040813

Back-Up Ring

(SUB FOR TH110449)

3шт.
