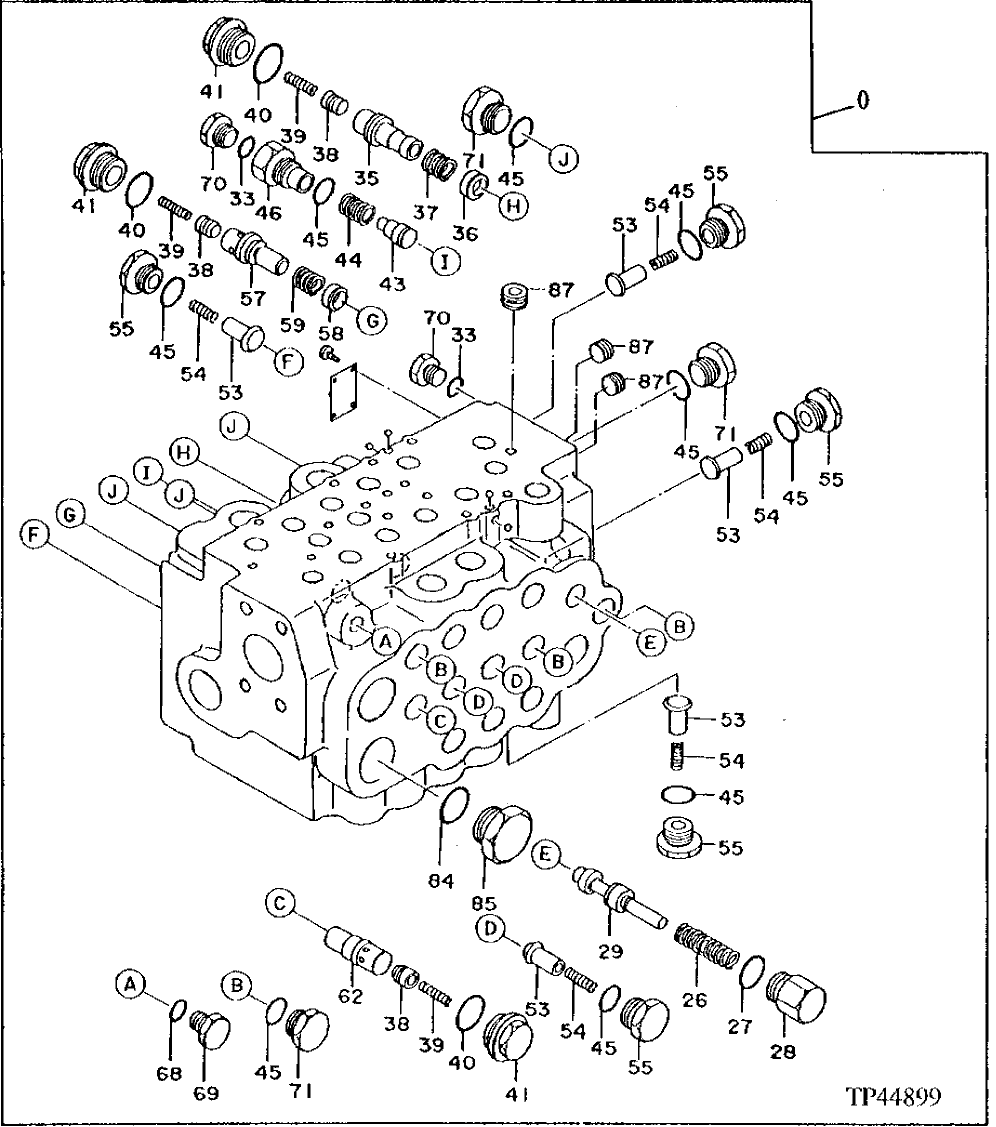

Запчасти John Deere 90E 147 - Control Valve (Standard) 2160 HYDRAULIC SYSTEM

0

4325342

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS LISTED ON THIS PAG E - ADDITIONAL COMPONENTS LISTED ON PRE VIOUS AND FOLLOWING PAGES) (SUB FOR AT1 86089 ) (SUB FOR AT200495 OR AT163679)

1шт.

26

0332908

Spring

(SUB FOR TH110309)

1шт.

27

R26906

O-Ring

19.177 X 2.464 mm (0.755" X 0.097")

1шт.

28

0332909

Drain Plug

(SUB FOR TH110310)

1шт.

29

Poppet

(NOT AVAILABLE FOR SERVICE)

1шт.

33

CH11570

O-Ring

2шт.

35

0455101

Sleeve

(SUB FOR AT200305)

1шт.

36

0455102

Poppet

(SUB FOR AT200306)

1шт.

37

0332917

Spring

(SUB FOR TH110318)

1шт.

38

0103012

Poppet

(SUB FOR TH105703)

3шт.

39

0103013

Spring

(SUB FOR TH105704)

3шт.

40

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

3шт.

41

0332918

Drain Plug

(SUB FOR TH110319)

3шт.

43

0455103

Poppet

(SUB FOR AT200307)

1шт.

44

0455104

Spring

(SUB FOR AT200308)

1шт.

45

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

14шт.

46

0455105

Plug

(SUB FOR AT200309)

1шт.

53

0455106

Poppet

(SUB FOR AT200310)

6шт.

54

0225209

Spring

(SUB FOR TH105754)

6шт.

55

0455107

Fitting Plug

(SUB FOR AT200311)

6шт.

57

0455108

Sleeve

(SUB FOR AT200312)

1шт.

58

0455109

Poppet

(SUB FOR AT200313)

1шт.

59

0455110

Spring

(SUB FOR AT200314)

1шт.

62

0455111

Sleeve

(SUB FOR AT200315)

1шт.

68

M800650

Packing

1шт.

69

0332936

Fitting

(SUB FOR TH110337)

1шт.

70

0218608

Drain Plug

(SUB FOR TH110243)

2шт.

71

0225216

Fitting Plug

(SUB FOR TH105757)

7шт.

84

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

85

0332940

Fitting

(SUB FOR TH110341)

1шт.

87

0455112

Plug

(SUB FOR AT200316)

3шт.
