Запчасти John Deere 90E 130 - WINDOW GUARD 1910 Hood Or Engine Enclosure

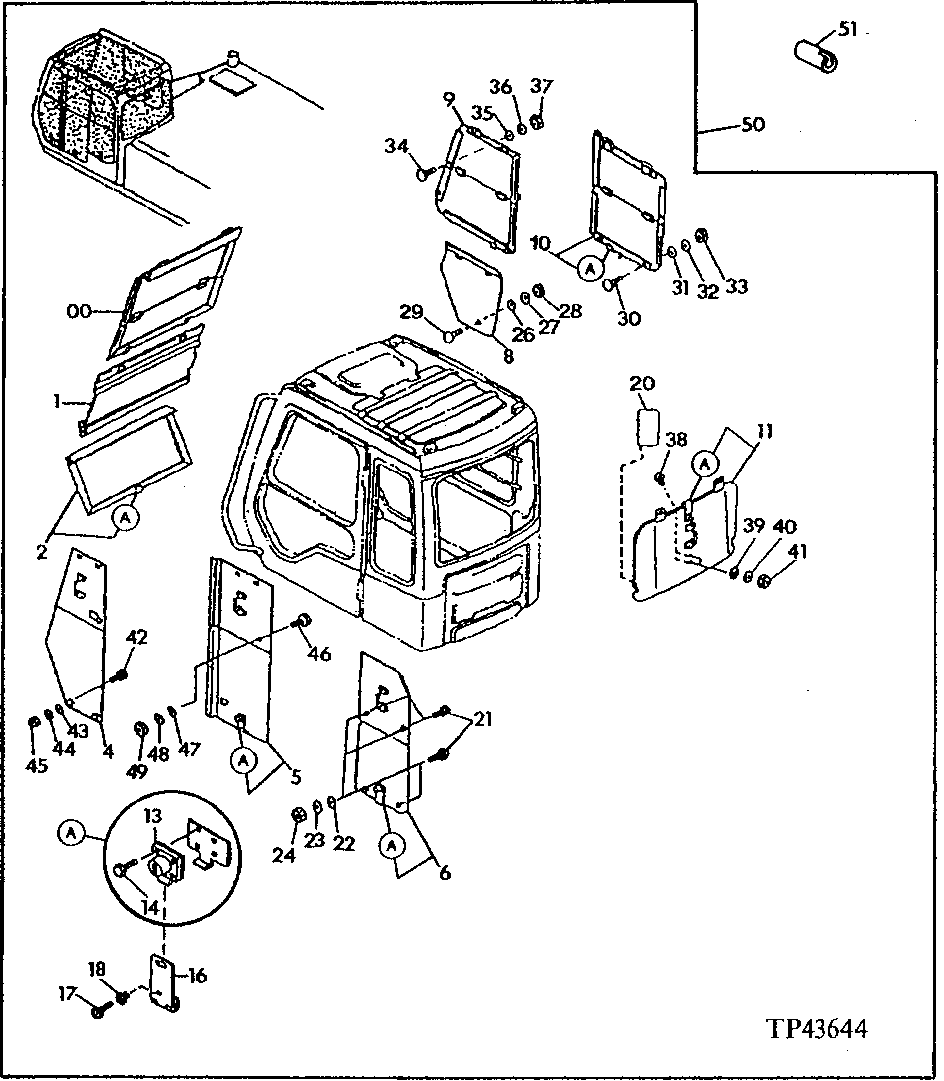

Схема запчастей John Deere 90E - 130 - WINDOW GUARD 1910 Hood Or Engine Enclosure

Артикул

Название

Примечание

Количество

0

AT155170

Cover

1шт.

1

AT155171

Cover

1шт.

2

AT155172

Cover

1шт.

4

AT155173

Cover

1шт.

5

AT152205

Cover

1шт.

6

AT155175

Cover

1шт.

8

AT154908

Cover

1шт.

9

AT155176

Cover

1шт.

10

AT155177

Cover

1шт.

11

AT155159

Cover

1шт.

13

4361601

Lock

(SUB FOR TH108982 ) (SUB F OR AT176636)(USE H800 KEY)

1шт.

AT194969

Key

(SUB FOR AT147803)(H800) (NOT ILLUSTRATED)

1шт.

14

21M7271

Screw

M5 X 16

4шт.

16

TH108983

Hinge

ARшт.

17

21M7249

Screw

M5 X 10

ARшт.

18

T205218

Washer

(SUB FOR TH111908, 4107762)

ARшт.

20

AT152168

Label

1шт.

21

Isolator

( AT155189 NO LONGER AVAILABLE) (SUB T65321 BULK MATERIAL CUT TO LENGTH)

4шт.

22

Washer

( 24M7027 NO LONGER REQUIRED)

4шт.

23

Lock Washer

( 12M7064 NO LONGER REQUIRED)

4шт.

24

Nut

( 14M7297 NO LONGER REQUIRED)

4шт.

26

Washer

( 24M7027 NO LONGER REQUIRED)

1шт.

27

Lock Washer

( 12M7064 NO LONGER REQUIRED)

1шт.

28

Nut

( 14M7297 NO LONGER REQUIRED)

1шт.

29

Isolator

( AT155189 NO LONGER AVAILABLE) (SUB T65321 BULK MATERIAL CUT TO LENGTH)

1шт.

30

Isolator

( AT155189 NO LONGER AVAILABLE) (SUB T65321 BULK MATERIAL CUT TO LENGTH)

3шт.

31

Washer

( 24M7027 NO LONGER REQUIRED)

3шт.

32

Lock Washer

( 12M7064 NO LONGER REQUIRED)

3шт.

33

Nut

( 14M7297 NO LONGER REQUIRED)

3шт.

34

Isolator

( AT155189 NO LONGER AVAILABLE) (SUB T65321 BULK MATERIAL CUT TO LENGTH)

3шт.

35

Washer

( 24M7027 NO LONGER REQUIRED)

3шт.

36

Lock Washer

( 12M7064 NO LONGER REQUIRED)

3шт.

37

Nut

( 14M7297 NO LONGER REQUIRED)

3шт.

38

Isolator

( AT155189 NO LONGER AVAILABLE) (SUB T65321 BULK MATERIAL CUT TO LENGTH)

2шт.

39

Washer

( 24M7027 NO LONGER REQUIRED)

2шт.

40

Lock Washer

( 12M7064 NO LONGER REQUIRED)

2шт.

41

Nut

( 14M7297 NO LONGER REQUIRED)

2шт.

42

Isolator

( AT155189 NO LONGER AVAILABLE) (SUB T65321 BULK MATERIAL CUT TO LENGTH)

2шт.

43

Washer

( 24M7027 NO LONGER REQUIRED)

2шт.

44

Lock Washer

( 12M7064 NO LONGER REQUIRED)

2шт.

45

Nut

( 14M7297 NO LONGER REQUIRED)

2шт.

46

Isolator

( AT155189 NO LONGER AVAILABLE) (SUB T65321 BULK MATERIAL CUT TO LENGTH)

1шт.

47

Washer

( 24M7027 NO LONGER REQUIRED)

1шт.

48

Lock Washer

( 12M7064 NO LONGER REQUIRED)

1шт.

49

Nut

( 14M7297 NO LONGER REQUIRED)

1шт.

50

AT159915

Kit

(VANDAL PROTECTION)

1шт.

51

Kit

(SUB FOR AT159454)(VAND AL PROTECTION HOOK KIT)

1шт.

Выбрано товаров: 47
