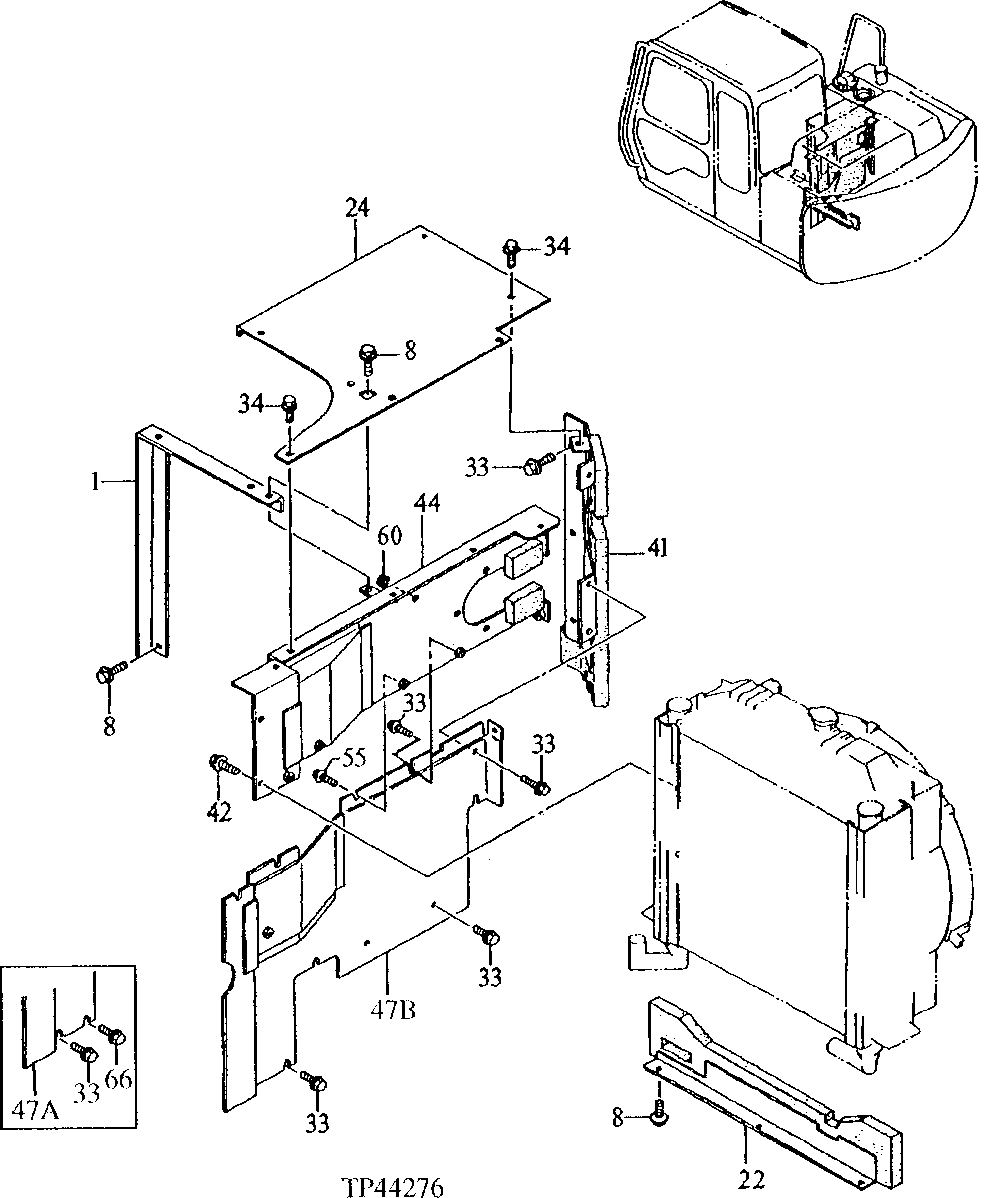

Запчасти John Deere 90E 122 - Covers 1910 Hood Or Engine Enclosure

1

8050978

Support

(SUB FOR AT200658)

1шт.

8

19M7402

Cap Screw

M10 X 25

5шт.

12M7066

Lock Washer

10 mm

5шт.

24M7028

Washer

10.500 X 20 X 2 mm

5шт.

22

8054900

Cover

(SUB FOR AT200679)

1шт.

24

3064753

Cover

(SUB FOR AT200395)

1шт.

33

19M7402

Cap Screw

M10 X 25

14шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

14шт.

24M7346

Washer

11 X 20 X 2 mm

14шт.

34

19M7662

Cap Screw

M10 X 30

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

24M7346

Washer

11 X 20 X 2 mm

6шт.

41

8056098

Cover

(SUB FOR AT200686)

1шт.

42

19M7938

Cap Screw

M10 X 20 (SUB FOR AT200008 OR J031020 USE ALONG WITH 12M7066 , AND 24M7296)

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

44

7026225

Cover

(SUB FOR AT200638)

1шт.

7028758

Cover

(SUB FOR AT165851)

1шт.

47A

7026284

Cover

(SUB FOR AT200639)

1шт.

47B

7028759

Cover

(SUB FOR AT164250)

1шт.

55

19M7550

Cap Screw

M10 X 35

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7346

Washer

11 X 20 X 2 mm

1шт.

60

94-2801

Bushing

(SUB FOR AT200710)

1шт.

66

19M8324

Cap Screw

M10 X 16

1шт.

12M7066

Lock Washer

10 mm

1шт.
