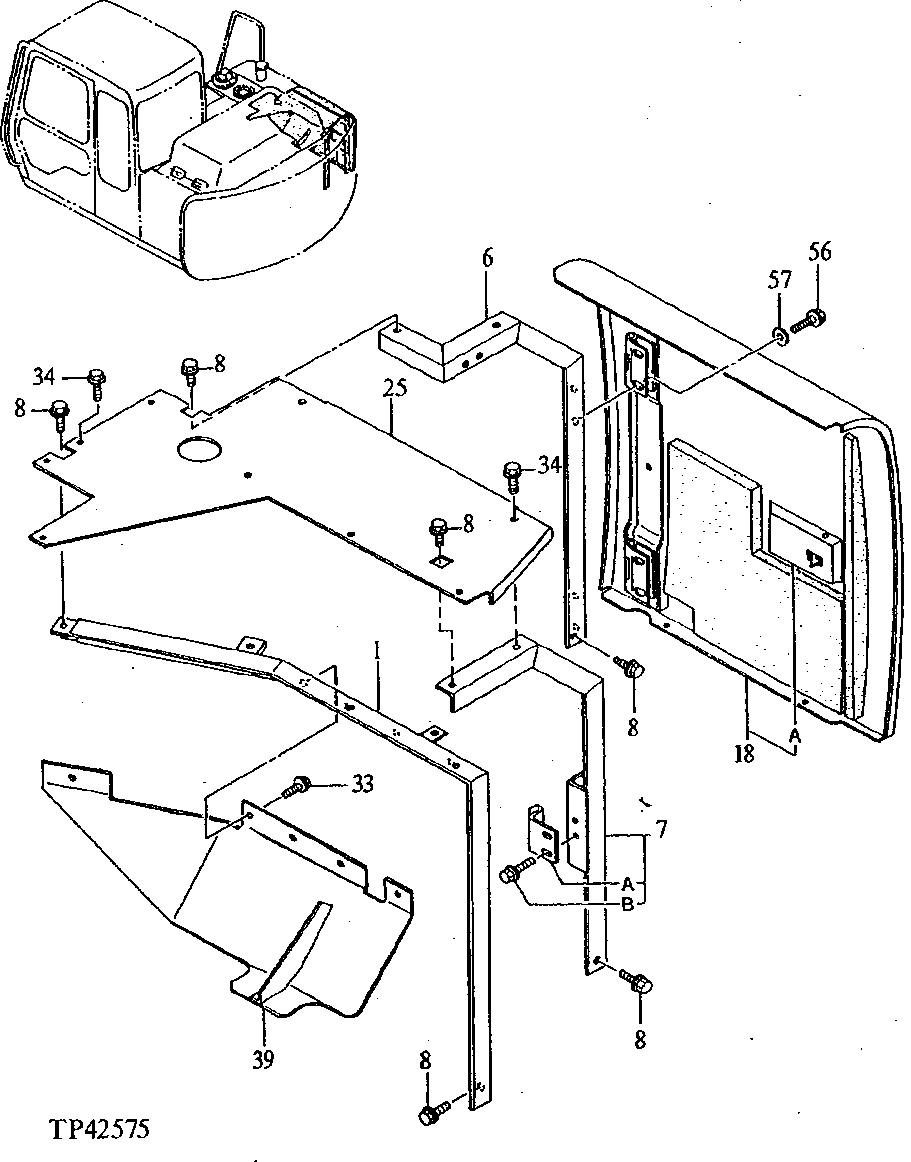

Запчасти John Deere 90E 121 - Covers 1910 Hood Or Engine Enclosure

1

7026357

Support

(SUB FOR AT200640)

1шт.

6

8056088

Support

(SUB FOR AT200657)

1шт.

7

9119336

Support

(SUB FOR AT200709)

1шт.

7A

4257087

Stop

(SUB FOR AT154930)

1шт.

7B

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

8

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

18

6013656

Door

(SUB FOR AT200629)

1шт.

18A

Lock

(SUB AT214010)( TH110898 NOT AVAILABLE FOR SERVICE)

1шт.

25

3064146

Cover

(SUB FOR AT200681)

1шт.

33

19M7402

Cap Screw

M10 X 25

5шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

5шт.

24M7346

Washer

11 X 20 X 2 mm

5шт.

34

19M7662

Cap Screw

M10 X 30

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

24M7346

Washer

11 X 20 X 2 mm

6шт.

39

7027520

Cover

(SUB FOR AT200646)

1шт.

56

19M7662

Cap Screw

M10 X 30

4шт.

57

M135494

Washer

12.500 X 35 X 4.500 mm (0.492" X 1.378" X 0.177") (SUB FOR AT121286 OR 4183252)

4шт.
