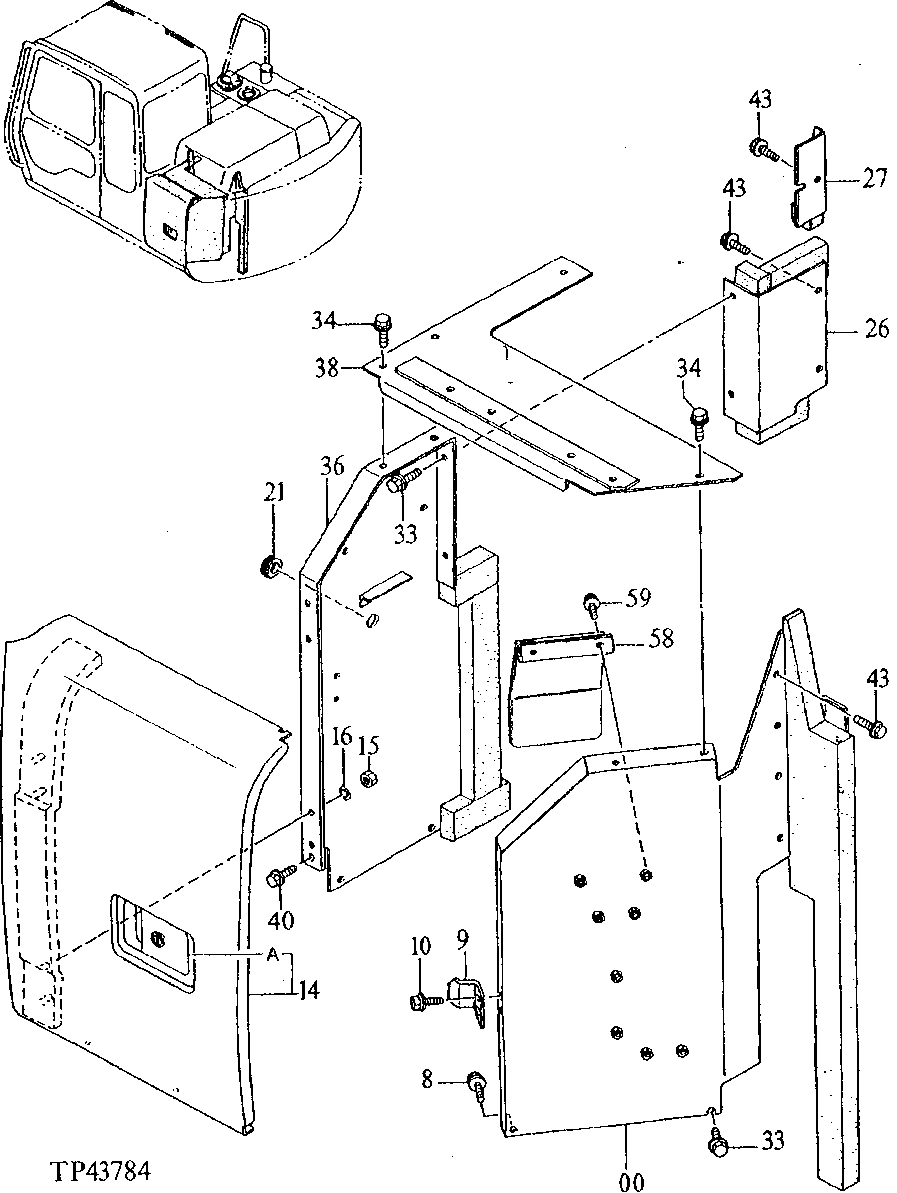

Запчасти John Deere 90E 120 - Covers 1910 Hood Or Engine Enclosure

0

7026585

Cover

(SUB FOR AT200642)

1шт.

8

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

9

4276407

Isolator

(SUB FOR AT200471)

1шт.

10

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

14

5004033

Door

(SUB FOR AT200616)

1шт.

14A

Lock

(SUB AT214010)( TH110126 NOT AVAILABLE FOR SERVICE)

1шт.

15

14M7274

Nut

M10

4шт.

16

12M7066

Lock Washer

10 mm

4шт.

21

94-2807

Grommet

(SUB FOR AT122152)

1шт.

26

8054899

Cover

(SUB FOR AT200678)

1шт.

27

8054986

Cover

(SUB FOR AT200682)

1шт.

33

19M7402

Cap Screw

M10 X 25

5шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

5шт.

24M7346

Washer

11 X 20 X 2 mm

5шт.

34

19M7662

Cap Screw

M10 X 30

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

36

7027164

Cover

(SUB FOR AT200644)

1шт.

38

8054929

Cover

(SUB FOR AT200680)

1шт.

40

19M7572

Cap Screw

M10 X 45 (SUB FOR AT200010 OR J031045, USE ALONG WITH 12M7066 , AND 24M7296)

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

1шт.

43

19M8324

Cap Screw

M10 X 16

8шт.

12M7066

Lock Washer

10 mm

8шт.

58

3065271

Cover

(SUB FOR AT200397)

1шт.

59

19M7932

Cap Screw

M8 X 16

2шт.
