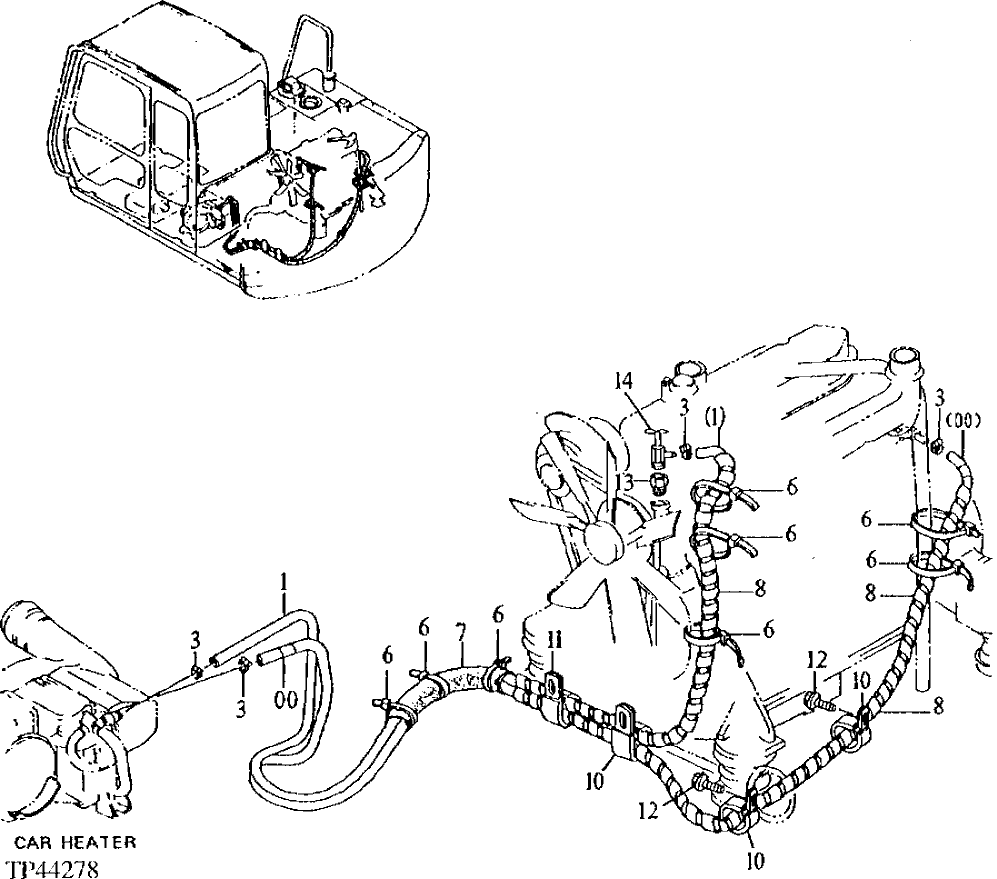

Запчасти John Deere 90E 118 - HEATER PIPINGS 1830 HEATING AND AIR CONDITIONING

0

Hose

(CUT TO LENGTH FROM T78162 BULK MATERIA L) ( AT200761 NOT AVAILABLE FOR SERVICE)

1шт.

1

Hose

(SUB FOR T78162)(CUT TO LENGTH FROM TY22328 BULK MATERIAL) ( AT 200762 NOT AVAILABLE FOR SERVICE )

1шт.

3

WZ2141223

Hose Clamp

(SUB FOR AA34965)

4шт.

6

H77698

Tie Band

ARшт.

7

4167524

Isolator

(SUB FOR TH106494, 4326 809 ) (SUB FOR AT164251)

1шт.

8

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222 ( TH100996 NOT AVAILABLE FOR SERVICE) )

2шт.

10

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

3шт.

11

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

1шт.

12

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

13

4322433

Adapter Fitting

(SUB FOR AT163708)

1шт.

14

AT35831

Drain Valve

1шт.
