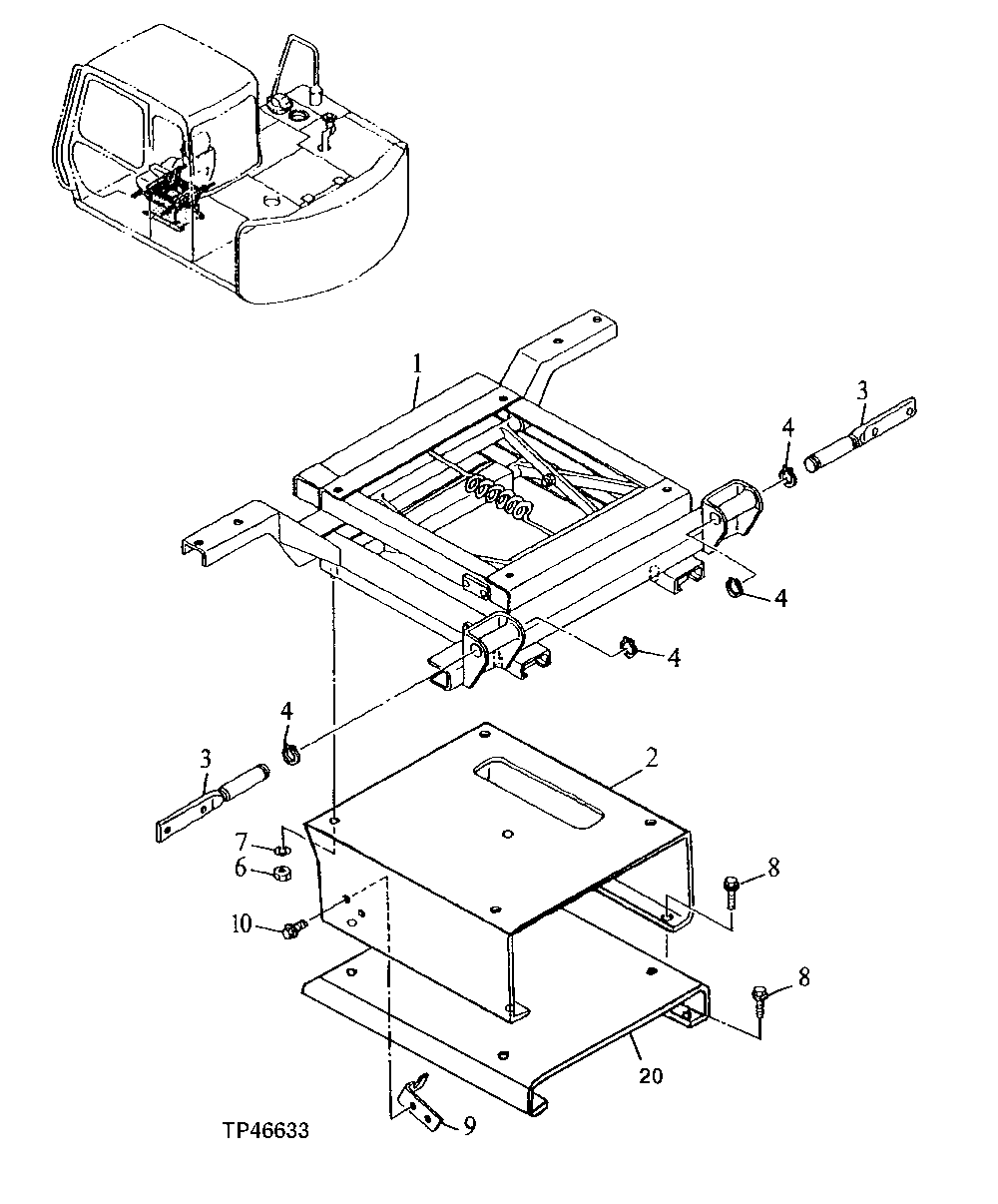

Запчасти John Deere 90E 108 - Seat Stand 1821 SEAT AND SEAT BELT

1

4293352

Stand

NLA, SUB FOR AT155016

1шт.

2

2031965

Stand

SUB FOR AT200365

1шт.

3

3052566

Pin

SUB FOR AT154900

2шт.

4

40M1824

Snap Ring

4шт.

6

14M7444

Nut

M10 SUB FOR TH104196 AND J952010

4шт.

7

12M7066

Lock Washer

10 mm

4шт.

8

19M7402

Cap Screw

M10 X 25

8шт.

12M7066

Lock Washer

10 mm

8шт.

9

9737686

Bracket

SUB FOR AT200713

1шт.

10

19M7077

Cap Screw

M6 X 20

2шт.

20

AT134364

Support

1шт.
