Запчасти John Deere 90E 107 - Seat 1821 SEAT AND SEAT BELT

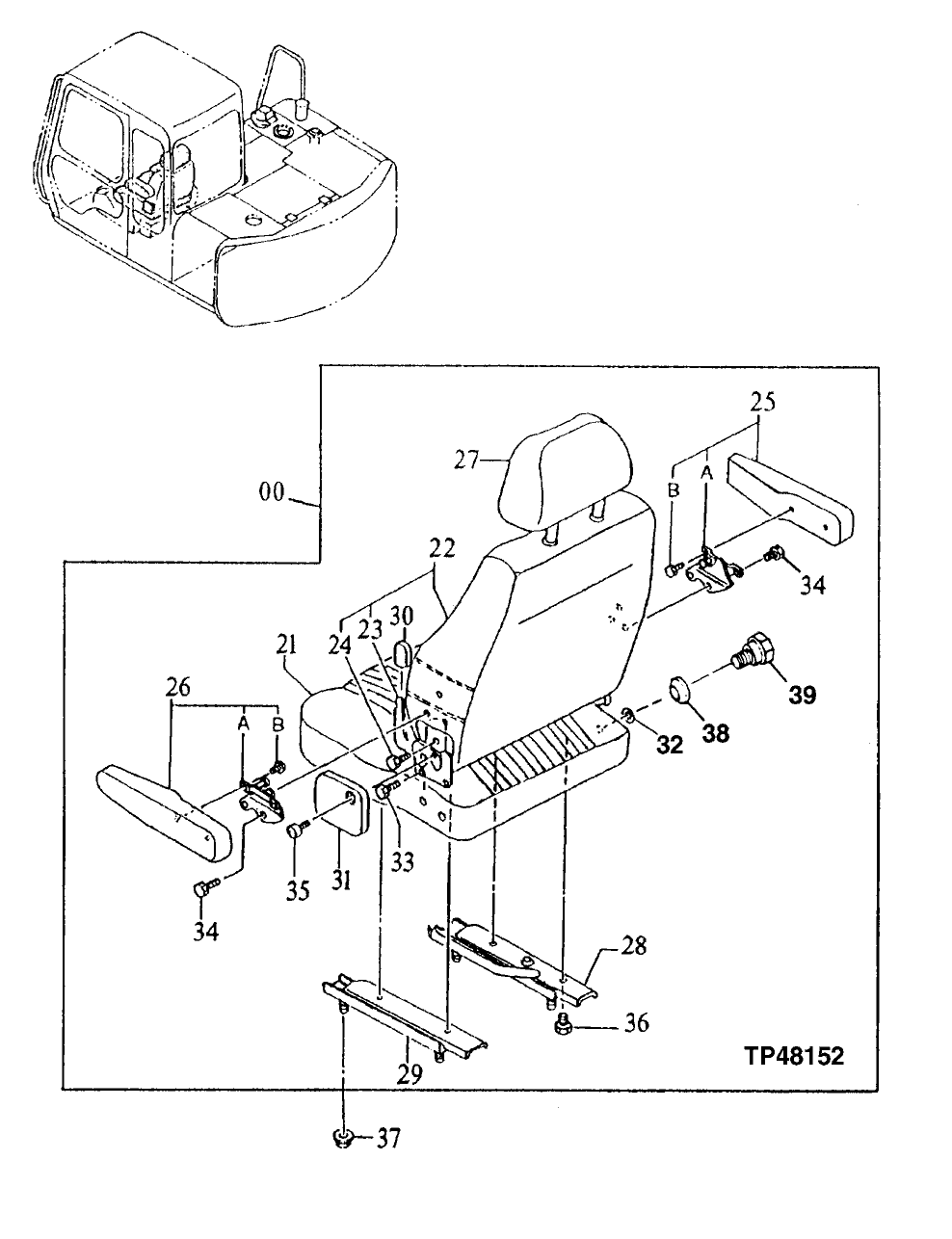

Схема запчастей John Deere 90E - 107 - Seat 1821 SEAT AND SEAT BELT

Артикул

Название

Примечание

Количество

0

Seat

4276535 NLA, SUB FOR AT200472

1шт.

Seat

4327589 NLA, SUB FOR AT168200

1шт.

22

4282814

Seat Back

SUB FOR AT200485

1шт.

Cushion

4346759 NLA, 4282807 NLA, SUB FOR AT200480

1шт.

4330328

Seat Back

SUB FOR AT168201

1шт.

23

4222852

Lever

SUB FOR AT200409

1шт.

24

19M7407

Cap Screw

M8 X 25 SUB FOR 4222853, ALONG WITH 12M7065

2шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

2шт.

25

4242610

Armrest

SUB FOR AT200566 OR 4310083

1шт.

25A

4310085

Link

SUB FOR AT200568

1шт.

25B

T110323

Screw

M6 X 16 SUB FOR AT200476

2шт.

26

4242611

Armrest

4310082 NLA, SUB FOR AT200565

1шт.

26A

4310084

Link

SUB FOR AT200567

1шт.

26B

T110323

Screw

M6 X 16 SUB FOR AT200476

2шт.

27

4679327

Seat Assembly

ALSO ORDER M669008 (8), FYA40009826, FY A00014799, J900820 (4), AND A590908 (4), SUB FOR 4341209 AND AT200484 OR 4282811

1шт.

Head Restraint

Not Required

1шт.

28

4282809

Adjuster

SUB FOR AT200482

1шт.

29

4282808

Adjuster

SUB FOR AT200481

1шт.

30

4282805

Grip

SUB FOR AT200479 Lever

1шт.

31

4282810

Cover

SUB FOR AT200483

1шт.

32

4222861

Washer

SUB FOR AT200411

1шт.

33

19M7407

Cap Screw

M8 X 25 SUB FOR 4222853, ALONG WITH 12M7065

2шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

2шт.

34

21M7277

Screw

M6 X 25 SUB FOR AT200412

4шт.

35

21M7265

Screw

M5 X 12 SUB FOR AT200455

1шт.

36

21M7192

Screw

M8 X 16 SUB FOR 4222865, ALONG WITH 12M7065

4шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.

37

14M7273

Nut

M8

4шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.

38

4368256

Bushing

SUB FOR AT177820

1шт.

39

4368257

Cap Screw

SUB FOR AT177821

1шт.

Выбрано товаров: 31
