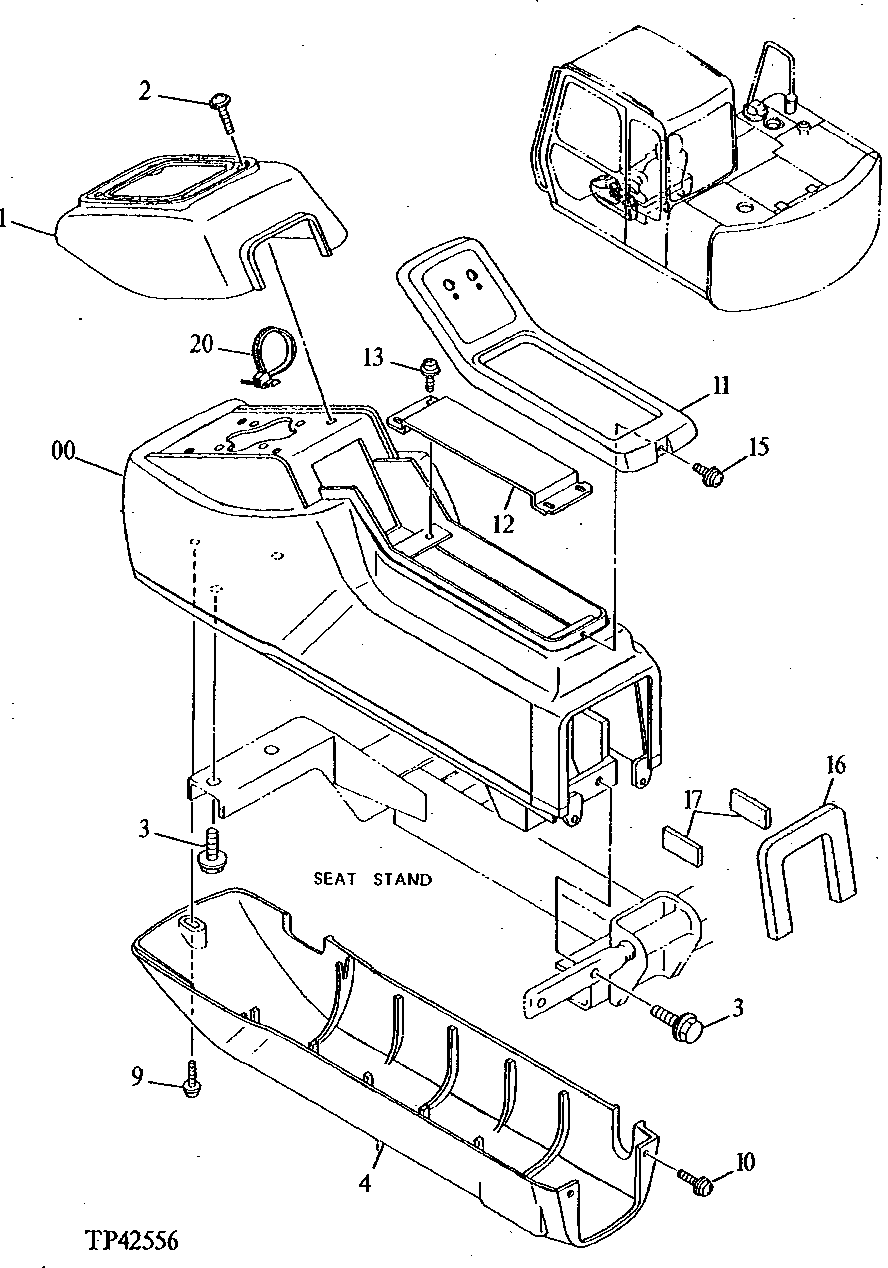

Запчасти John Deere 90E 102 - Left Console 1810 Operator Enclosure

0

5003051

Stand

(SUB FOR AT155143)

1шт.

1

1015067

Cover

(SUB FOR AT154892)

1шт.

2

19M7177

Cap Screw

M6 X 35

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

3

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

4

1015072

Cover

(SUB FOR AT154893)

1шт.

9

21M7277

Screw

M6 X 25

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

10

21M7246

Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

11

8052226

Cover

(SUB FOR AT155166)

1шт.

12

3062139

Cover

(SUB FOR AT155696)

1шт.

13

19M7700

Cap Screw

M5 X 10

4шт.

12M7064

Lock Washer

5 mm

4шт.

24M7348

Washer

5.500 X 10 X 1 mm

4шт.

15

21M7271

Screw

M5 X 16 (SUB FOR 21M6070)

1шт.

12M7064

Lock Washer

5 mm

1шт.

24M7348

Washer

5.500 X 10 X 1 mm

1шт.

16

4289705

Isolator

(SUB FOR AT200504)

1шт.

17

Rubber Mount

(CUT TO LENGTH FROM BULK MATERIAL) ( AT200505 NOT AVAILABLE FOR SERVICE)

2шт.

20

H77698

Tie Band

1шт.
