Запчасти John Deere 90E 97 - Cab 1810 Operator Enclosure

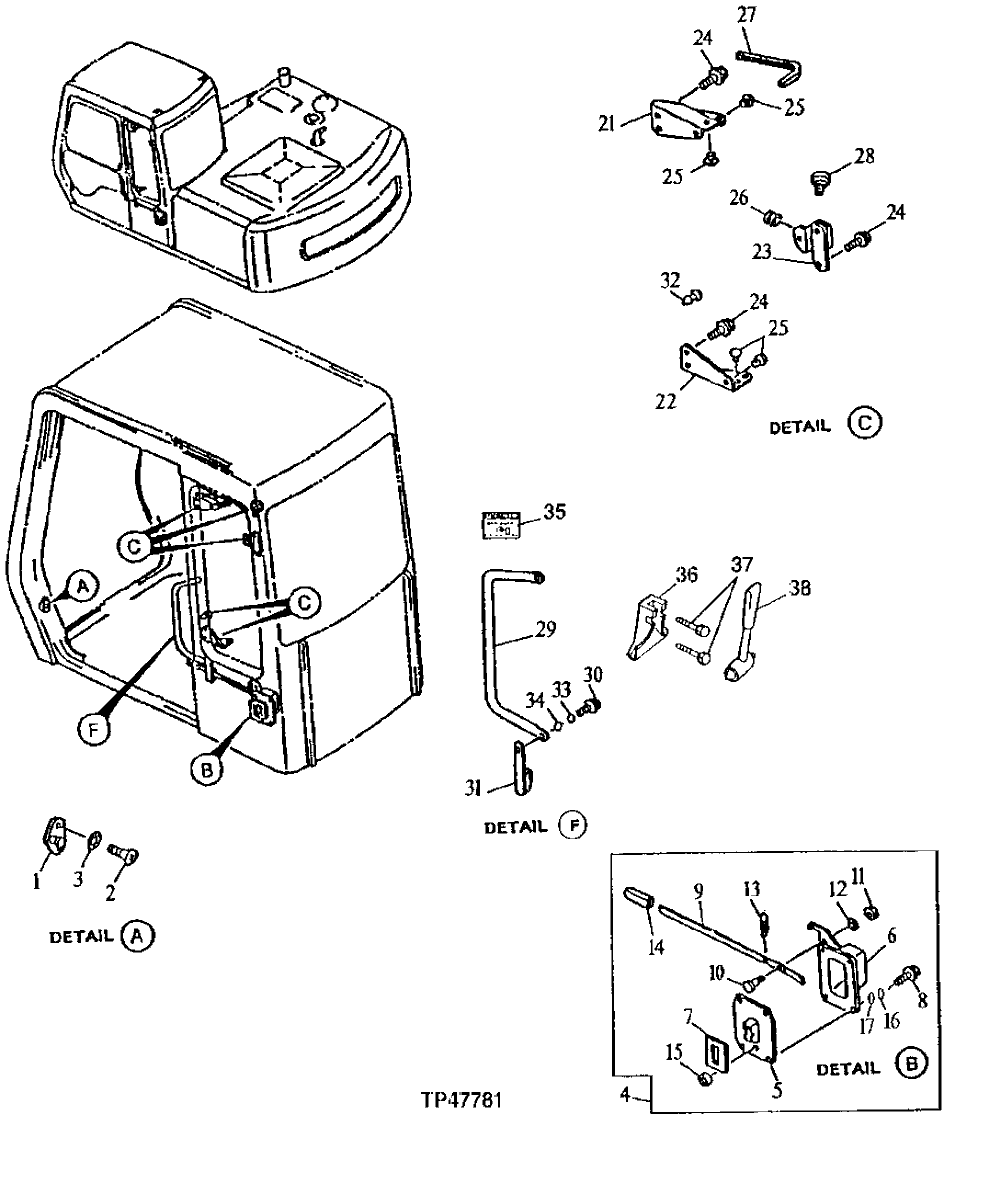

Схема запчастей John Deere 90E - 97 - Cab 1810 Operator Enclosure

Артикул

Название

Примечание

Количество

0

4319064

Cab

(SUB FOR AT200575)(NOT ILLUSTRATED) (CONTAI NS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPO NENTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.

1

4347518

Striker

(SUB FOR TH101170 OR 4128473)

1шт.

2

4320163

Screw

(SUB FOR AT200584)

2шт.

3

Washer

(NOT AVAILABLE FOR SERVICE)

2шт.

4

4289533

Catch

(SUB FOR AT154443)

1шт.

5

4204588

Lock

(SUB FOR TH108670)

1шт.

6

4295560

Cover

(SUB FOR AT157050)

1шт.

7

4204590

Gasket

(SUB FOR TH108672)

1шт.

8

19M7881

Screw

M8 X 20

4шт.

9

4295561

Lever

(SUB FOR AT157051)

1шт.

10

4204593

Bolt

(SUB FOR TH108675)

1шт.

11

14M7272

Nut

M6

1шт.

12

12M7006

Lock Washer

6 mm

1шт.

13

4208103

Spring

(SUB FOR TH108676 ) (SUB FOR AT121585)

1шт.

14

4089012

Cap

(SUB FOR TH101184)

1шт.

15

4204591

Seal

(SUB FOR TH108673)

1шт.

16

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

17

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

21

4204601

Bracket

(SUB FOR TH108684)

1шт.

22

4204602

Bracket

(SUB FOR TH108685)

1шт.

23

4320164

Bracket

(SUB FOR AT200585)

1шт.

24

19M7881

Screw

M8 X 20

6шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

25

4295489

Cushion

(SUB FOR AT156996)

5шт.

26

4204604

Grommet

(SUB FOR TH108687)

1шт.

27

4295607

Belting

(SUB FOR AT157056)

1шт.

28

4295573

Hook

(SUB FOR AT157057)

1шт.

29

4320165J

Handrail

(SUB FOR AT200586 OR 4320165)

1шт.

30

19M7662

Cap Screw

M10 X 30

2шт.

31

4320166

Isolator

(SUB FOR AT200587)

1шт.

32

Clip

(NOT AVAILABLE FOR SERVICE)

1шт.

33

12M7066

Lock Washer

10 mm

2шт.

34

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

35

T190393

Label

(SUB FOR T157809)(IMPORTANT - B REAK WINDOW FOR SECONDARY EXIT)

1шт.

36

2038764

Bracket

(SUB FOR T158021)

1шт.

37

19M7372

Cap Screw

M5 X 16

2шт.

12M7064

Lock Washer

5 mm

2шт.

24M7348

Washer

5.500 X 10 X 1 mm

2шт.

38

4362700

Hammer

(SUB FOR T158020)

1шт.

Выбрано товаров: 40
