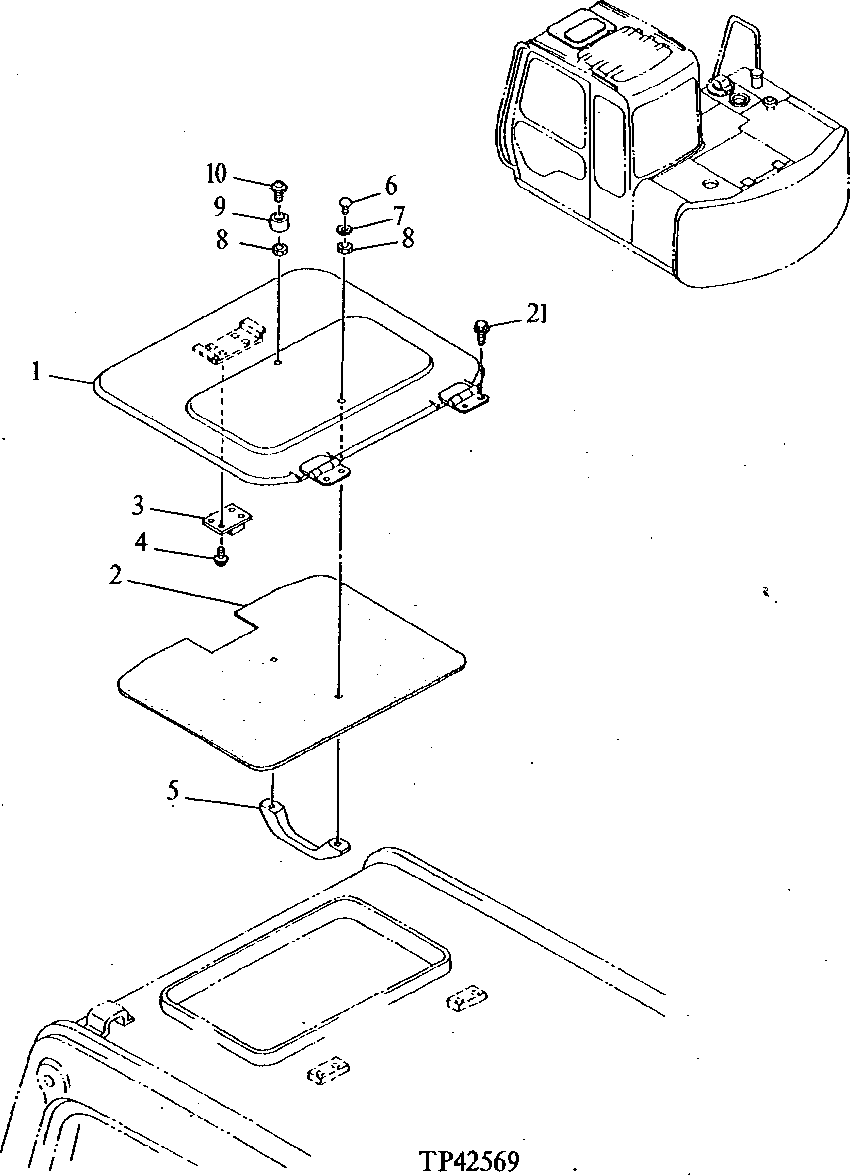

Запчасти John Deere 90E 96 - Cab 1810 Operator Enclosure

0

4319064

Cab

(SUB FOR AT200575)(NOT ILLUSTRATED) (CONTAI NS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPO NENTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.

1

4320645

Cover

(SUB FOR AT200605)

1шт.

2

4320646

Pad

(SUB FOR AT200606)

1шт.

3

4204578

Lock

(SUB FOR TH108660)

1шт.

4

19M7372

Cap Screw

M5 X 16

4шт.

12M7064

Lock Washer

5 mm

4шт.

24M7348

Washer

5.500 X 10 X 1 mm

4шт.

5

4204579

Handle

(SUB FOR TH108661)

1шт.

6

4204580

Bumper

(SUB FOR TH108662)

1шт.

7

4204581

Washer

5.500 X 15 X 2 mm (0.217" X 0.5 91" X 0.079") (SUB FOR TH108663)

1шт.

8

14M7297

Nut

M5

2шт.

9

4307527

Isolator

(SUB FOR AT200557)

1шт.

10

4307545

Screw

(SUB FOR AT200558)

1шт.

21

4295487

Bolt

(SUB FOR AT157034)

4шт.
