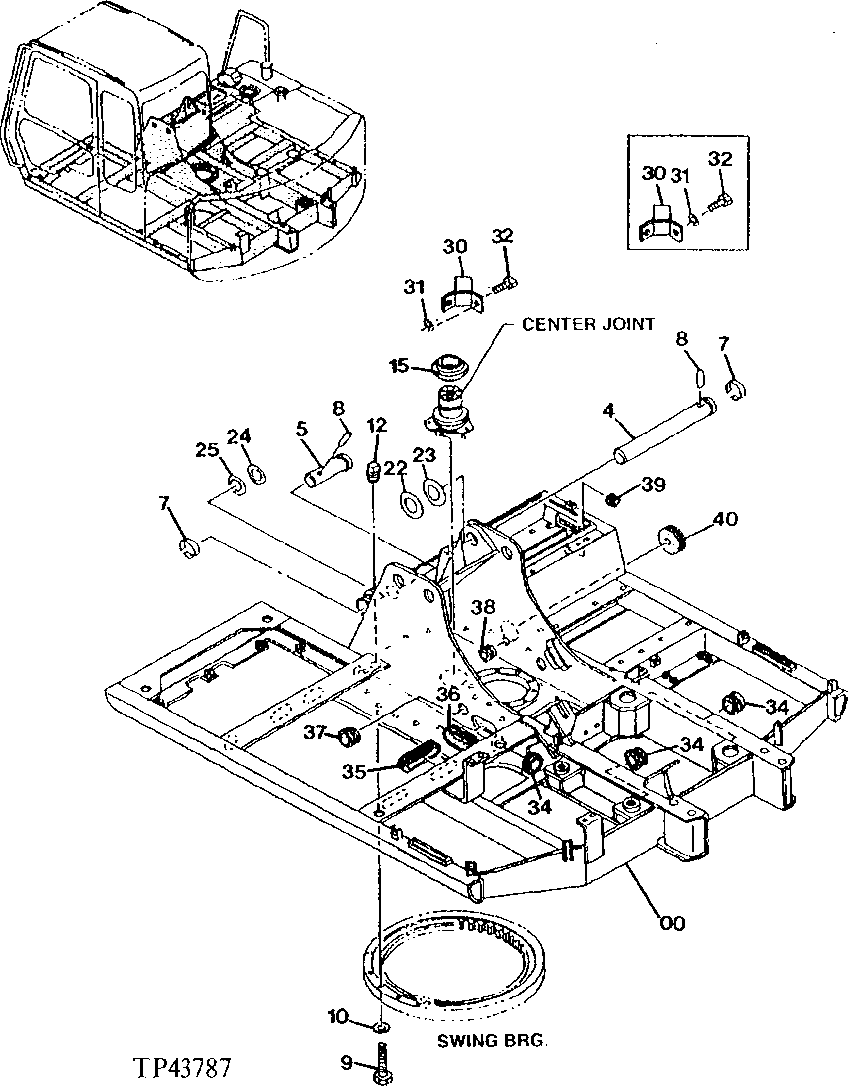

Запчасти John Deere 90E 87 - Main Frame 1740 Frame Installation

0

5003746

Main Frame

(SUB FOR AT200613)(CONVENIENCE ASSEMBLY)

1шт.

4

3043504

Pin Fastener

(SUB FOR TH110413)

1шт.

5

3055930

Pin Fastener

(SUB FOR AT200382)

1шт.

7

4065688

Retainer

(SUB FOR TH100624)

2шт.

8

4065689

Pin Fastener

17.500 X 81 mm (0.689" X 3.189") (SUB FOR TH100625)

2шт.

9

19M8350

Cap Screw

M16 X 85

22шт.

10

R73290

Washer

16.280 X 27 X 2.670 mm (4 1/64" X 1-1/16" X 0.105")

22шт.

12

J75214

Fitting Plug

(SUB FOR TH105686)

1шт.

15

4195033

Cover

(SUB FOR TH110533)

1шт.

22

4224058

Washer

61 X 130 X 2 mm (2.402" X 5.11 8" X 0.079") (SUB FOR TH112248)

2шт.

23

4224057

Washer

61 X 130 X 1 mm (2.402" X 5.11 8" X 0.039") (SUB FOR TH112247)

2шт.

24

4180196

Washer

56 X 100 X 1.200 mm (2.205" X 3-1 5/16" X 3/64") (SUB FOR TH108046)

2шт.

25

4042135

Washer

56 X 100 X 2.300 mm (2.205" X 3-1 5/16" X 0.091") (SUB FOR TH105940)

1шт.

30

8082204

Bracket

(SUB FOR 8036895 ) (ALSO OR DER (2) 19M7403 AND 24M7047)

1шт.

31

24M7345

Washer

13.500 X 24 X 2.500 mm

2шт.

32

19M8017

Cap Screw

M12 X 20

2шт.

19M8011

Cap Screw

M12 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

34

4509404

Grommet

(SUB FOR TH100553)

4шт.

35

4293794

Bushing

(SUB FOR AT200511)

1шт.

36

4293803

Bushing

(SUB FOR AT200513)

1шт.

37

4201749

Grommet

(SUB FOR TH108205)

1шт.

38

4210661

Grommet

(SUB FOR TH111369)

1шт.

39

94-2816

Grommet

(SUB FOR AT155186)

1шт.

40

4293796

Bushing

(SUB FOR AT200512)

1шт.
