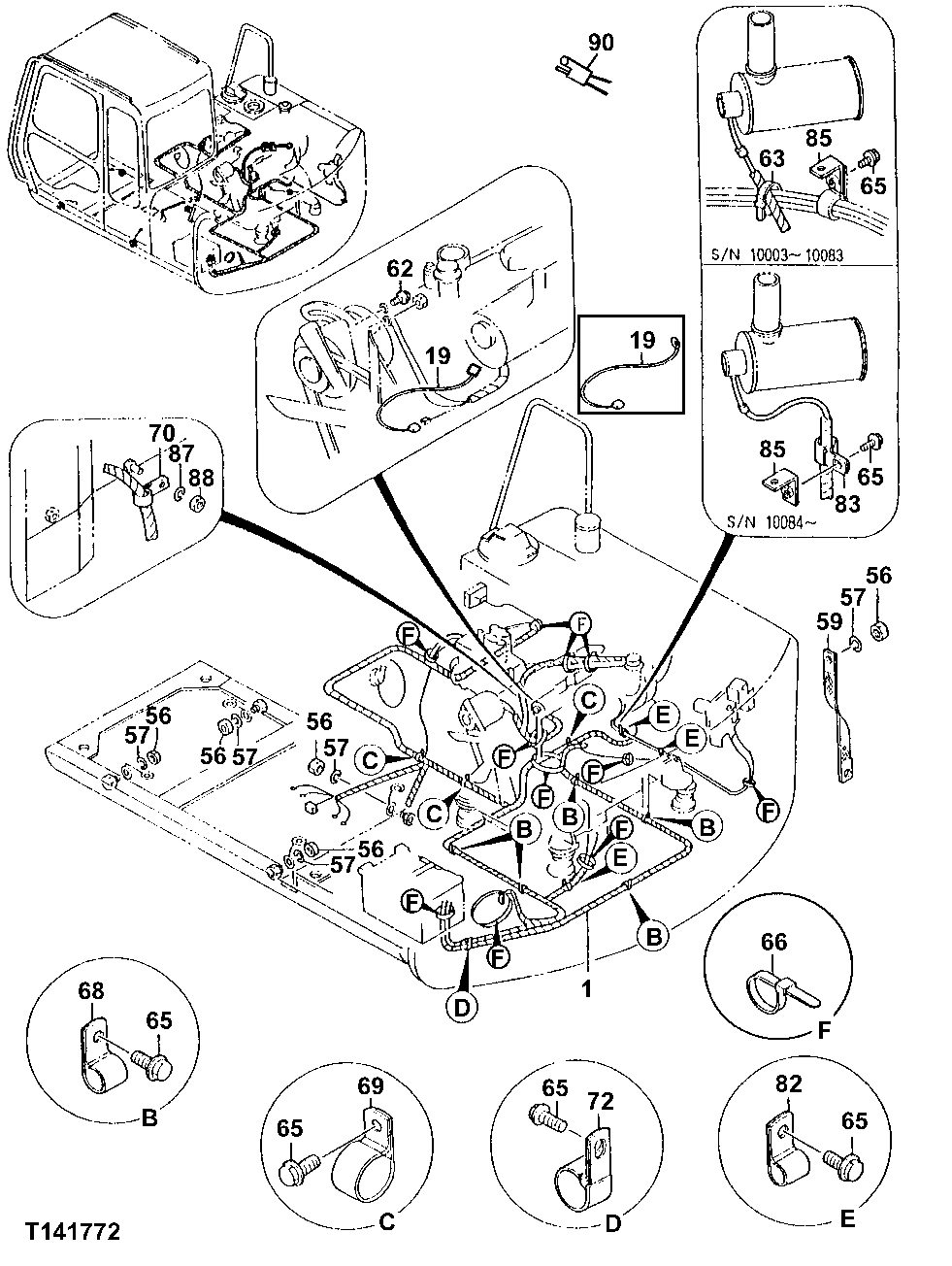

Запчасти John Deere 90E 82 - ELECTRIC PARTS 1674 Wiring Harness And Switches

1

0001361

Wiring Harness

(SUB FOR AT200143)(ENGINE)

1шт.

0001747

Wiring Harness

(SUB FOR AT173243)(ENGINE)

1шт.

1A

4288109

Diode

(SUB FOR (12) AT174465)(NOT ILLUSTRATE D) (COMPONENT OF WIRE HARNESS) (SEPARAT E DIODES) (1-KEYSWITCH, 1-SWING STOP CU SHION SOLENOID, 1-GRIP SOLENOID, 1-FUEL SHUTOFF SOLENOID, 1-OPTIONAL EQUIPMENT )

12шт.

4374532

Diode

(SUB FOR AT179476)(NOT ILLUSTRATED) (COMP ONENT OF WIRE HARNESS) (PLASTIC CONNECTOR CONTAINS 5 DIODES) (1-KEYSWITCH, 1-SWING S TOP CUSHION SOLENOID, 1-GRIP SOLENOID, 1-F UEL SHUTOFF SOLENOID, 1-OPTIONAL EQUIPMENT )

1шт.

19

4448296

Wiring Harness

(SUB FOR AT155617)(STARTER)

1шт.

56

14M7274

Nut

M10

5шт.

57

12M7066

Lock Washer

10 mm

5шт.

59

4305981

Brace

(SUB FOR AT200547)(ENG INE FRAME GROUND STRAP)

1шт.

62

19M7964

Cap Screw

M8 X 12

1шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

63

H77698

Tie Band

1шт.

65

19M7938

Cap Screw

M10 X 20

12шт.

12M7066

Lock Washer

10 mm

12шт.

66

H77698

Tie Band

11шт.

68

T28949

Clamp

(SUB FOR TH108458 OR 4190274)

5шт.

69

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

3шт.

70

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

1шт.

72

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

82

AH79175

Clip

(SUB FOR TH108600 OR 4190272)

2шт.

83

AH79175

Clip

(SUB FOR TH108600 OR 4190272)

2шт.

85

9741842

Bracket

(SUB FOR AT200715)

1шт.

87

12M7066

Lock Washer

10 mm

1шт.

88

14M7274

Nut

M10

1шт.

90

AT172578

Wiring Harness

(DIODE) (USED TO PROTECT AGAINST VOLTAGE SPIKES)

1шт.
