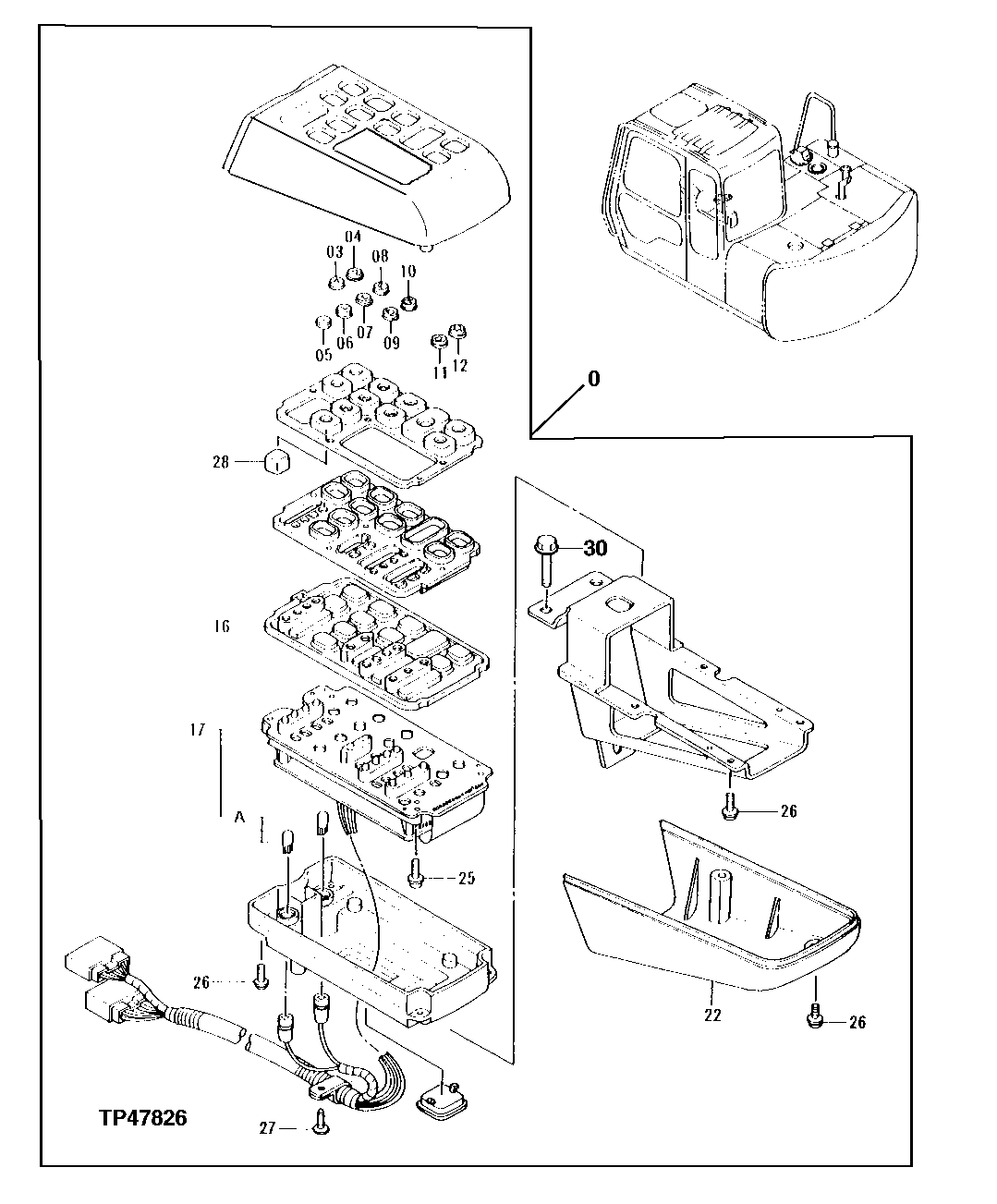

Запчасти John Deere 90E 76 - Switch Box 1674 Wiring Harness And Switches

0

Box

(SUB AT169104)( AT2004 60 NO LONGER AVAILABLE)

1шт.

4331397

Box

(SUB FOR AT169104)

1шт.

3

4297090

Panel

(SUB FOR AT155592)

1шт.

4

4297091

Panel

(SUB FOR AT155593)

1шт.

5

4297092

Panel

1шт.

6

4297093

Panel

1шт.

7

4297094

Panel

1шт.

8

4297095

Panel

1шт.

9

4297096

Panel

(SUB FOR AT155598)

1шт.

10

4297097

Panel

(SUB FOR AT155599)

1шт.

11

4297098

Panel

(SUB FOR AT155600)

1шт.

12

4297099

Panel

(SUB FOR AT155601)

1шт.

16

4297112

Switch

(SUB FOR AT155605)

1шт.

17

4342048

Circuit Board

(SUB FOR AT169105)

1шт.

17A

4297110

Lamp

(SUB FOR AT155607)

2шт.

22

4297106

Cover

(SUB FOR AT155611)

1шт.

25

4297103

Screw

(SUB FOR AT155614)

4шт.

26

Screw With Washer

(SUB FOR AT155615)( 4297102 NLA)

12шт.

21M7396

Screw

M4 X 10

12шт.

24M7117

Washer

4.300 X 9 X 0.800 mm

12шт.

12H315

Lock Washer

0.164"

12шт.

27

T116079

Screw

(SUB FOR AT155616, 4297101)

1шт.

28

4311599

Spacer

(SUB FOR AT201048)

10шт.

30

19M7932

Cap Screw

M8 X 16

3шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.
