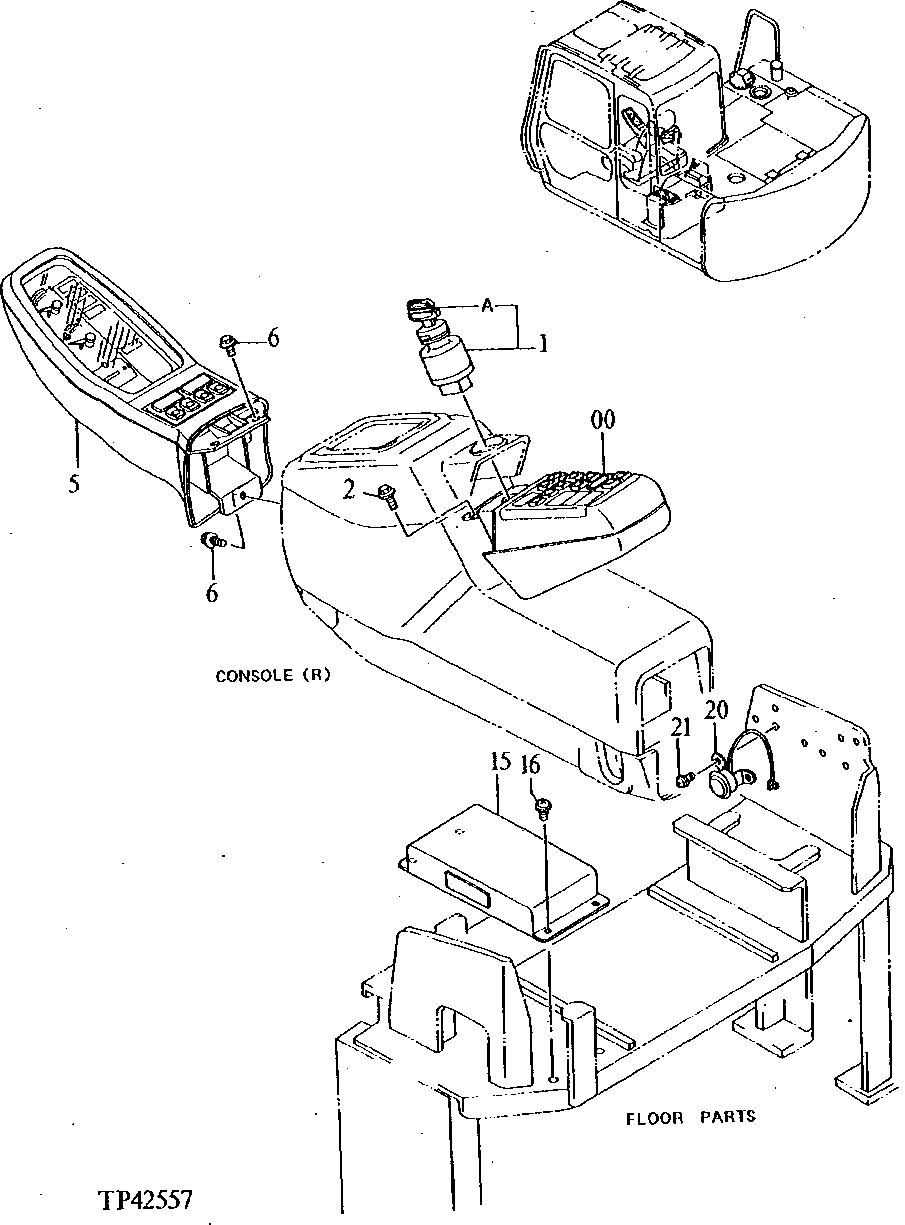

Запчасти John Deere 90E 74 - ELECTRIC PARTS 1674 Wiring Harness And Switches

0

Box

(SUB AT169104)(SWITCH) ( AT 200460 NO LONGER AVAILABLE)

1шт.

4331397

Box

(SUB FOR AT169104)(SWITCH)

1шт.

1

4477373

Switch

(SUB FOR AT154992) Ignition Switch

1шт.

1A

AT194969

Key

(SUB FOR AT147803)(SET OF TWO)

1шт.

2

19M7932

Cap Screw

M8 X 16

3шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.

5

4303554

Panel

(SUB FOR AT200535)(GAUGE)

1шт.

6

19M7932

Cap Screw

M8 X 16

3шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.

15

4688258

Control

(SUB FOR AT154919 ) (SU B FOR AT169088)(MONITOR)

1шт.

16

J900614

Bolt

(SUB FOR TH104056)

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

20

4258403

Audible Warning Alarm

(SUB FOR AT154934)(MONITOR)

1шт.

21

19M7372

Cap Screw

M5 X 16

2шт.

12M7064

Lock Washer

5 mm

2шт.

24M7348

Washer

5.500 X 10 X 1 mm

2шт.
