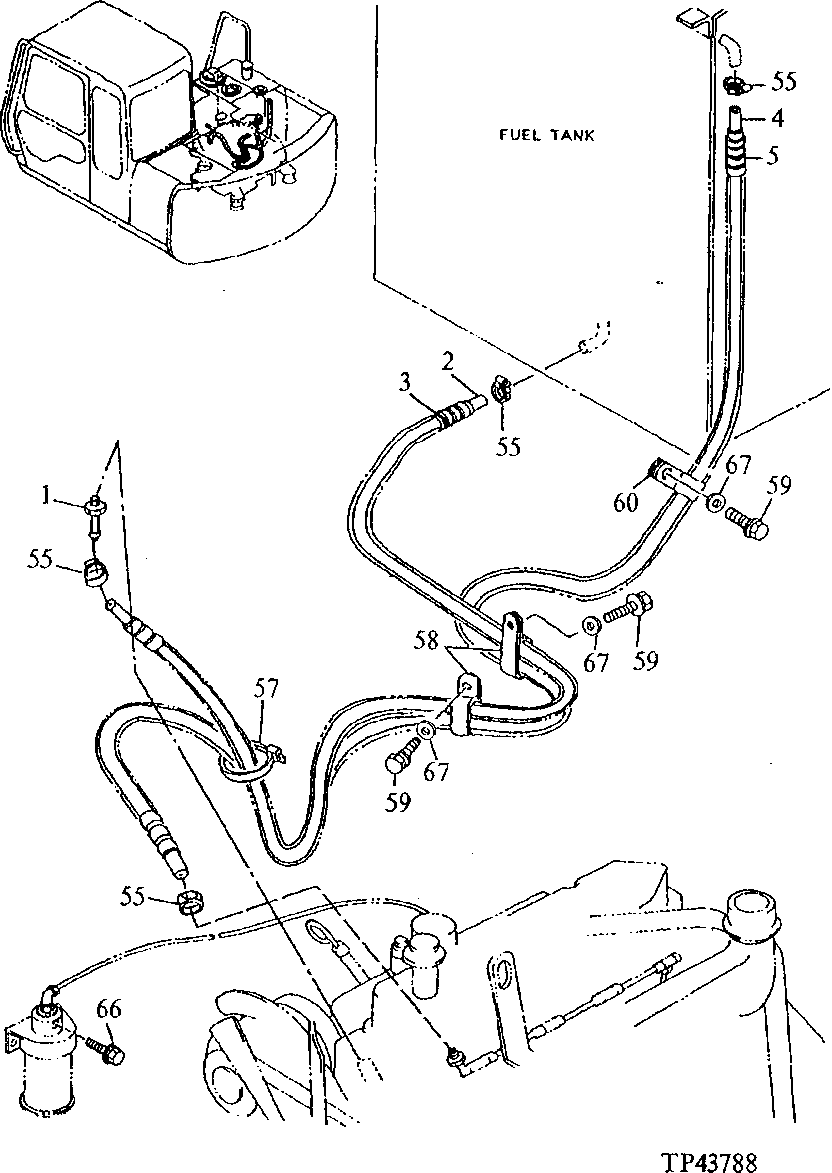

Запчасти John Deere 90E 62 - FUEL PIPINGS ( - 030315) 0560 External Fuel Supply Systems

1

R67293

Fitting

(SUB FOR TH100897)

1шт.

2

Hose

(CUT TO LENGTH FROM M87571 BULK MATERIA L) ( AT200763 NOT AVAILABLE FOR SERVICE)

1шт.

3

Tube

(CUT TO LENGTH FROM T83427 BULK MATERIA L) ( AT200551 NOT AVAILABLE FOR SERVICE)

1шт.

4

Hose

(CUT TO LENGTH FROM M87571 BULK MATERIA L) ( AT200764 NOT AVAILABLE FOR SERVICE)

1шт.

5

Tube

(CUT TO LENGTH FROM T83427 BULK MATERIA L) ( AT200470 NOT AVAILABLE FOR SERVICE)

1шт.

55

TY22464

Clamp

(SUB FOR AR21836)

4шт.

57

H77698

Tie Band

1шт.

58

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

2шт.

59

19M7938

Cap Screw

M10 X 20

3шт.

60

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

1шт.

64

H77698

Tie Band

1шт.

66

J900614

Bolt

(SUB FOR 19M8425, THIS APPL ICATION ) (SUB FOR TH104056)

2шт.

12M7006

Lock Washer

6 mm

2шт.

67

12M7066

Lock Washer

10 mm

3шт.
