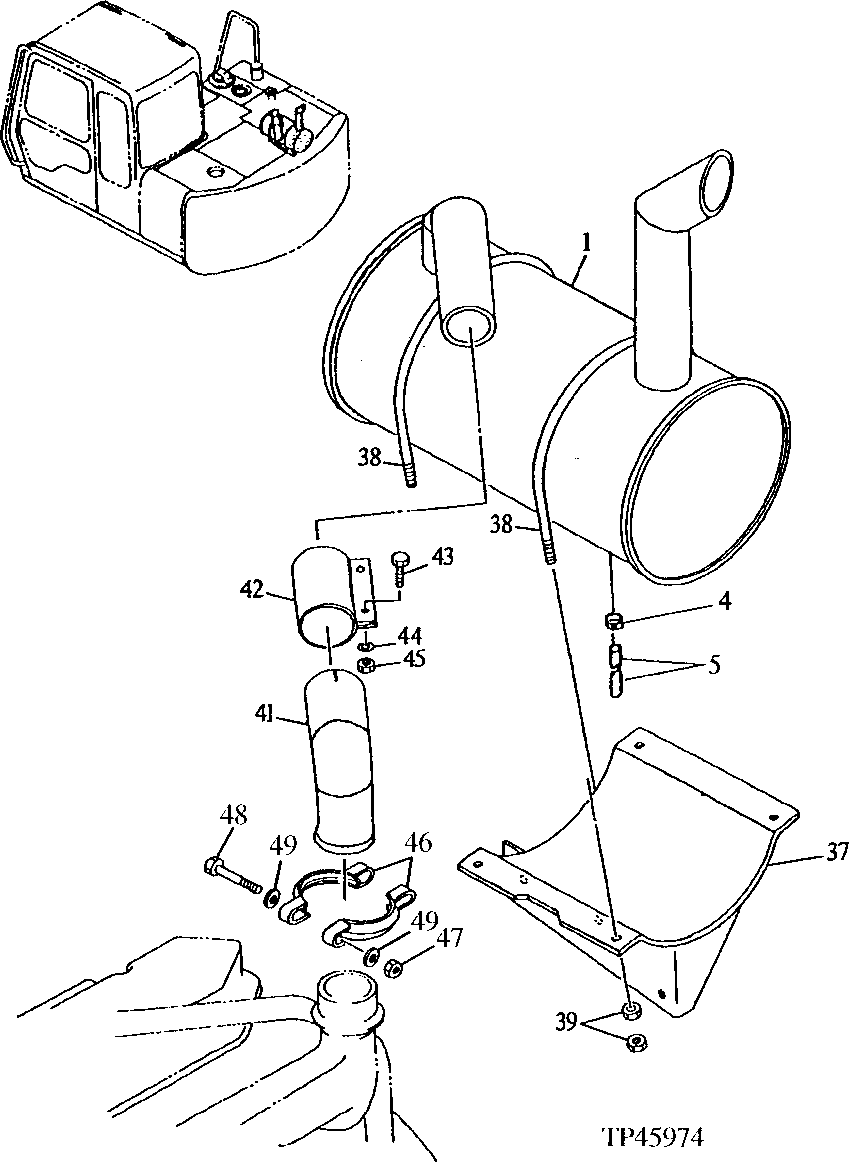

Запчасти John Deere 90E 61 - Muffler 0530 External Exhaust Systems

1

4692173

Muffler

(SUB FOR AT200532 AND 4302539)

1шт.

4

TY22462

Clamp

(SUB FOR AR77962 OR AR48236)

1шт.

5

Structural Tube

(NOT AVAILABLE FOR SERVICE)

1шт.

37

7026213

Bracket

(SUB FOR AT200637)

1шт.

38

4252533

U-Bolt

(SUB FOR AT200421)

2шт.

39

14M7274

Nut

M10

8шт.

41

8054735

Line

(SUB FOR AT200677)

1шт.

42

4320757

Clamp

(SUB FOR AT200607)

1шт.

43

19M7493

Cap Screw

M12 X 40

2шт.

44

12H301

Lock Washer

1/2"

2шт.

45

14M7275

Nut

M12

2шт.

46

AT72624

Half Clamp

2шт.

47

U13184

Lock Nut

9.525 mm (3/8")

2шт.

48

19H3734

Screw

3/8" X 3"

2шт.

49

24H1682

Washer

13/32" X 7/8" X 0.120"

ARшт.
