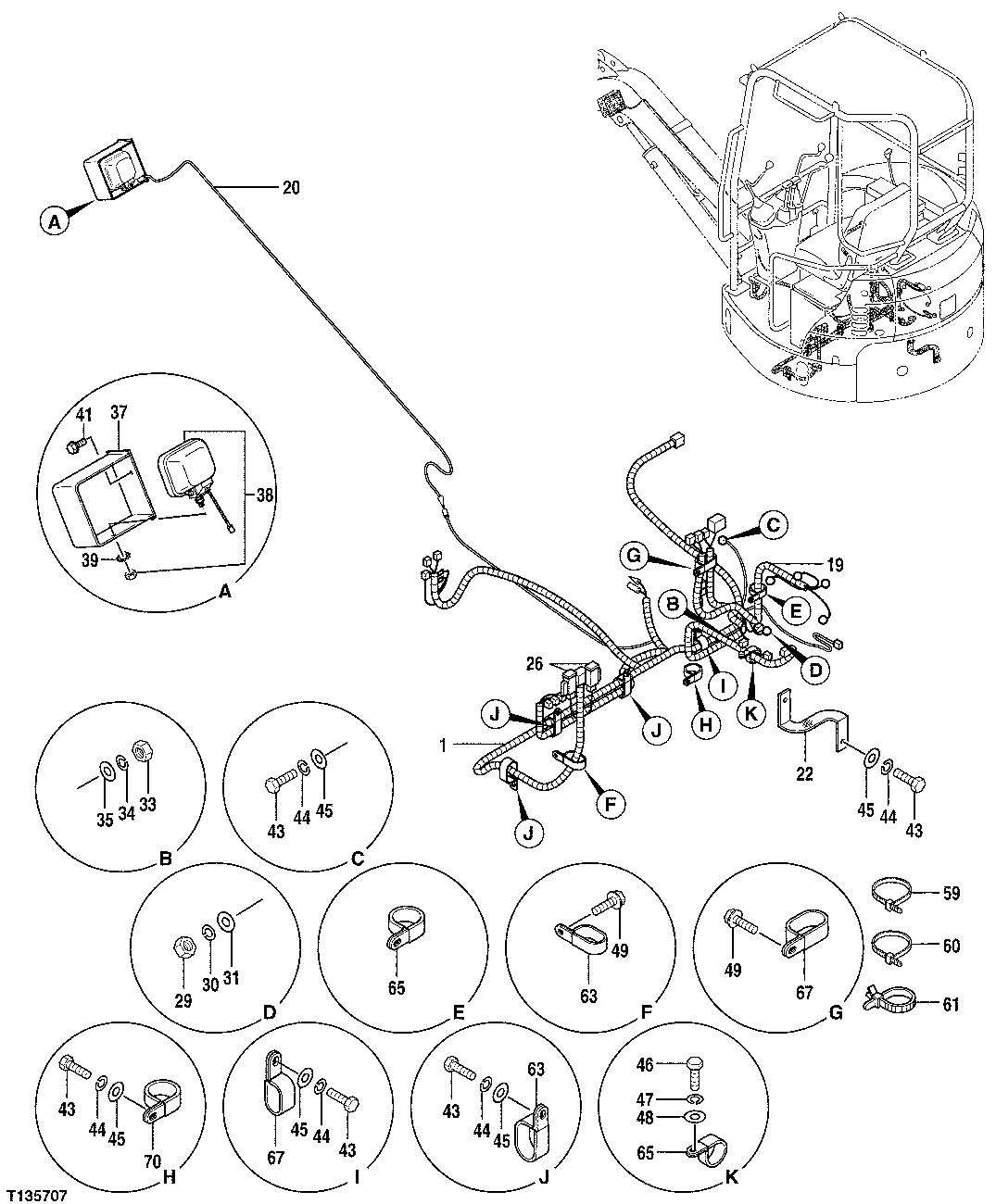

Запчасти John Deere 7ZTS 48 - ELECTRIC PARTS 1674 WIRING HARNESS AND SWITCHES

1

2045917

Wiring Harness

(SUB FOR TH2045917)(SEE DTAC SOLUT ION FOR REPAIR KIT AND CONNECTORS)

1шт.

19

2045916

Wiring Harness

(SUB FOR TH2045916)(ENGINE)

1шт.

20

4351342

Wiring Harness

(SUB FOR TH4351342)(LIGHT)

1шт.

22

4372789

Ground Cable

SUB FOR AT251308

1шт.

26

4331898

Fuse

SUB FOR AT251232

2шт.

29

14M7272

Nut

M6

1шт.

30

12M7006

Lock Washer

6 mm

1шт.

31

12M7054

Lock Washer

19 mm

1шт.

33

14M7273

Nut

M8

1шт.

34

Washer

12M7065 NLA

1шт.

35

12M7036

Lock Plate

1шт.

37

4457415J

Guard

SUB FOR TH9755600, 9755600 OR 4457415

1шт.

38

4361457

Lamp

SUB FOR AT251285

1шт.

39

12M7032

Lock Washer

8.400 mm

1шт.

41

19M8011

Cap Screw

M12 X 30

1шт.

24M7044

Washer

13 X 20 X 2 mm

1шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

43

19M8324

Cap Screw

M10 X 16

8шт.

44

12M7066

Lock Washer

10 mm

8шт.

45

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR 12M7096

8шт.

46

19M7162

Cap Screw

M8 X 16 SUB FOR THJ970816; SUB FOR J952010

1шт.

47

Washer

12M7065 NLA

1шт.

48

12M7036

Lock Plate

1шт.

49

19M7938

Cap Screw

M10 X 20

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

59

R44302

Tie Band

SUB FOR TH4326365

4шт.

60

H77698

Tie Band

17шт.

61

4254600

Clip

SUB FOR AT154928

1шт.

63

T32854

Clamp

4шт.

65

4190275

Clamp

SUB FOR TH108598

2шт.

67

R50454

Clamp

SUB FOR TH109445 OR 4192034

2шт.

70

R73384

Clamp

SUB FOR TH108597 OR 4190253

1шт.
