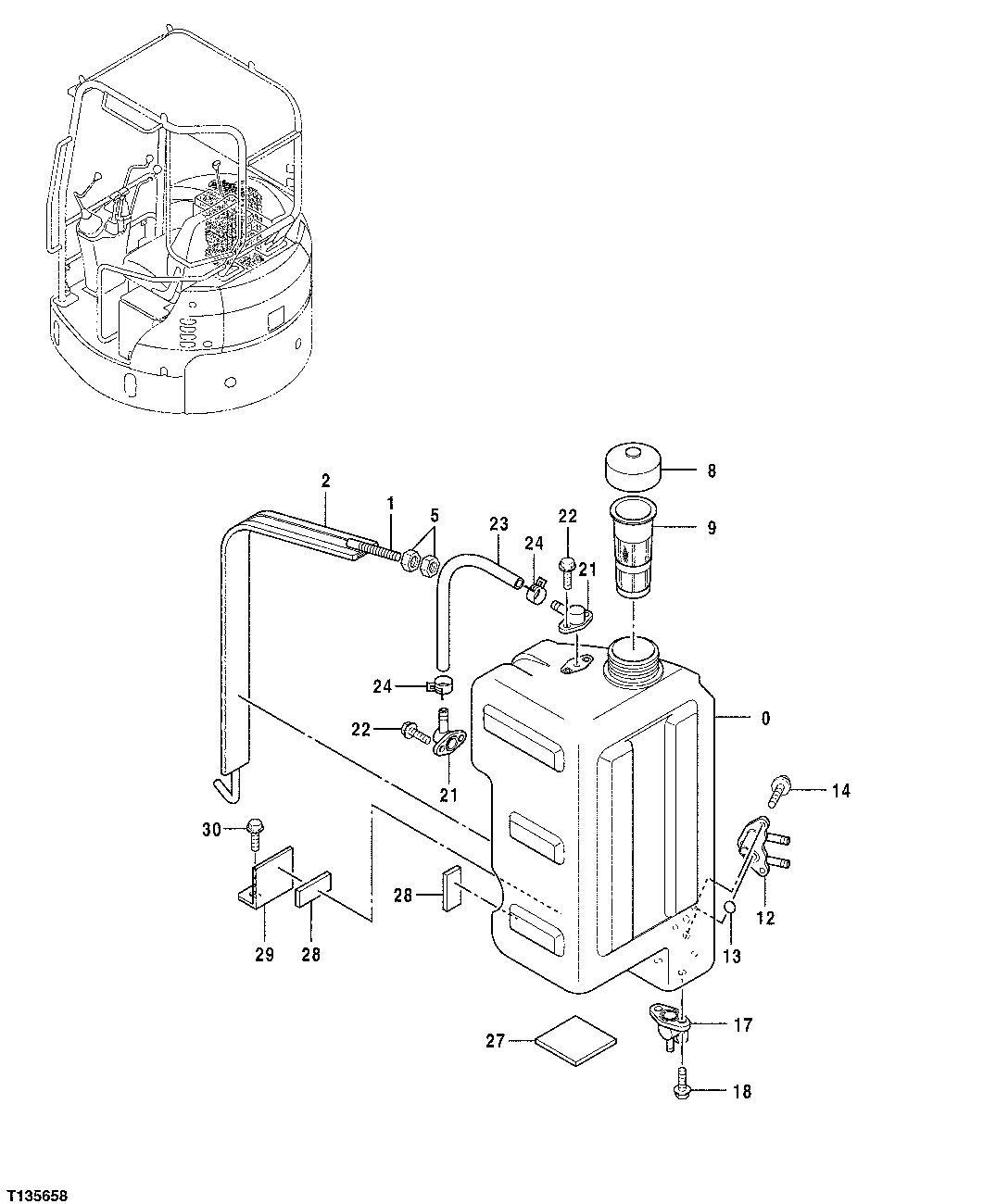

Запчасти John Deere 7ZTS 43 - FUEL TANK 0564 FUEL TANK

0

4442448

Fuel Tank

SUB FOR TH4442448

1шт.

1

9756275

Strap

SUB FOR TH9756275

1шт.

2

4450722

Isolator

SUB FOR TH4450722

1шт.

5

14M7274

Nut

M10

2шт.

8

4442447

Filler Cap

SUB FOR TH4442447

1шт.

9

4442449

Strainer

1шт.

TH4472918

Filter

1шт.

12

4355689

Adapter Fitting

SUB FOR AT251278

1шт.

13

4202987

O-Ring

SUB FOR AT251170

2шт.

14

21M7347

Screw

M5 X 14

3шт.

12M7006

Lock Washer

6 mm

3шт.

17

4358947

Drain Valve

SUB FOR AT251283

1шт.

18

19M8425

Cap Screw

M6 X 16

2шт.

24M7267

Washer

6.400 X 11 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

2шт.

21

4608249

Elbow Fitting

SUB FOR 4400756 OR AT251416

2шт.

22

19M8425

Cap Screw

M6 X 16

4шт.

12M7006

Lock Washer

6 mm

4шт.

23

Bulk Hose

CUT TO LENGTH 610MM MAKE FROM TY22551; SUB FOR TH4442450, TH4427945 OR 4427945

1шт.

24

4351486

Hose Clamp

SUB FOR AT251251

2шт.

27

4446779

Isolator

SUB FOR 4402292

1шт.

28

4392516

Isolator

SUB FOR AT251348

2шт.

29

4459659

Bracket

SUB FOR TH4459659

1шт.

30

19M7402

Cap Screw

M10 X 25

1шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.
