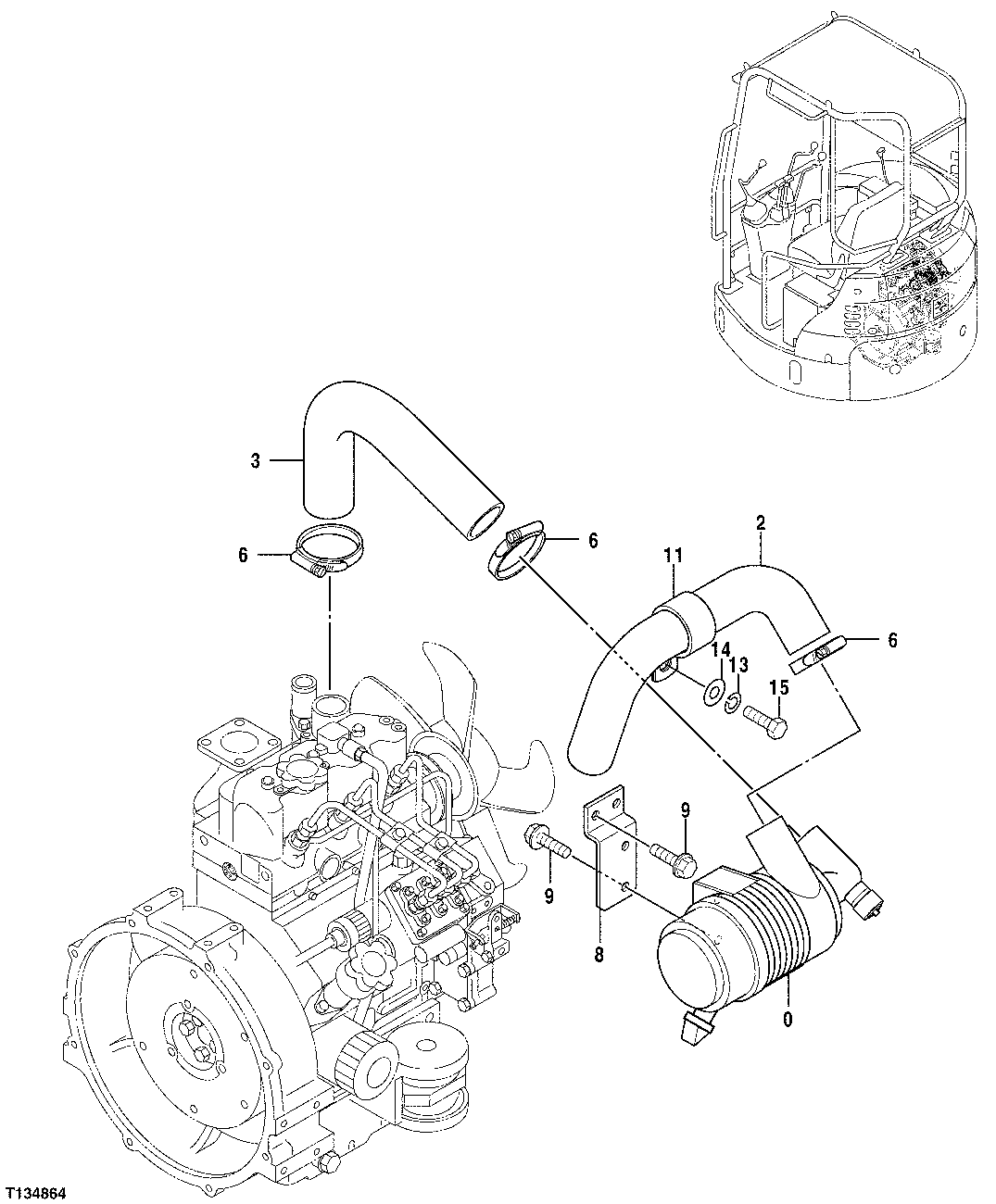

Запчасти John Deere 7ZTS 40 - AIR CLEANER 0521 AIR CLEANER AND PIPING

0

4440027

Air Cleaner

SUB FOR TH4440027

1шт.

1

M113621

Filter Element

(NOT ILLUSTRATED)

1шт.

2

4440347

Hose

SUB FOR TH4440347

1шт.

3

4440348

Hose

SUB FOR TH4440348

1шт.

6

TY22470

Clamp

SUB FOR AR65293

3шт.

8

4440343

Bracket

SUB FOR TH4440343

1шт.

9

19M7881

Screw

M8 X 20

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.

11

N198631

Clamp

SUB FOR TH109598 OR 4190265

1шт.

13

12M7066

Lock Washer

10 mm

1шт.

14

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR 12M7096

1шт.

15

19M7402

Cap Screw

M10 X 25

1шт.
