Запчасти John Deere 7ZTS 37 - TIMING GEAR CASE AND FLYWHEEL HOUSING 0433 FLYWHEEL, HOUSING AND FASTENINGS

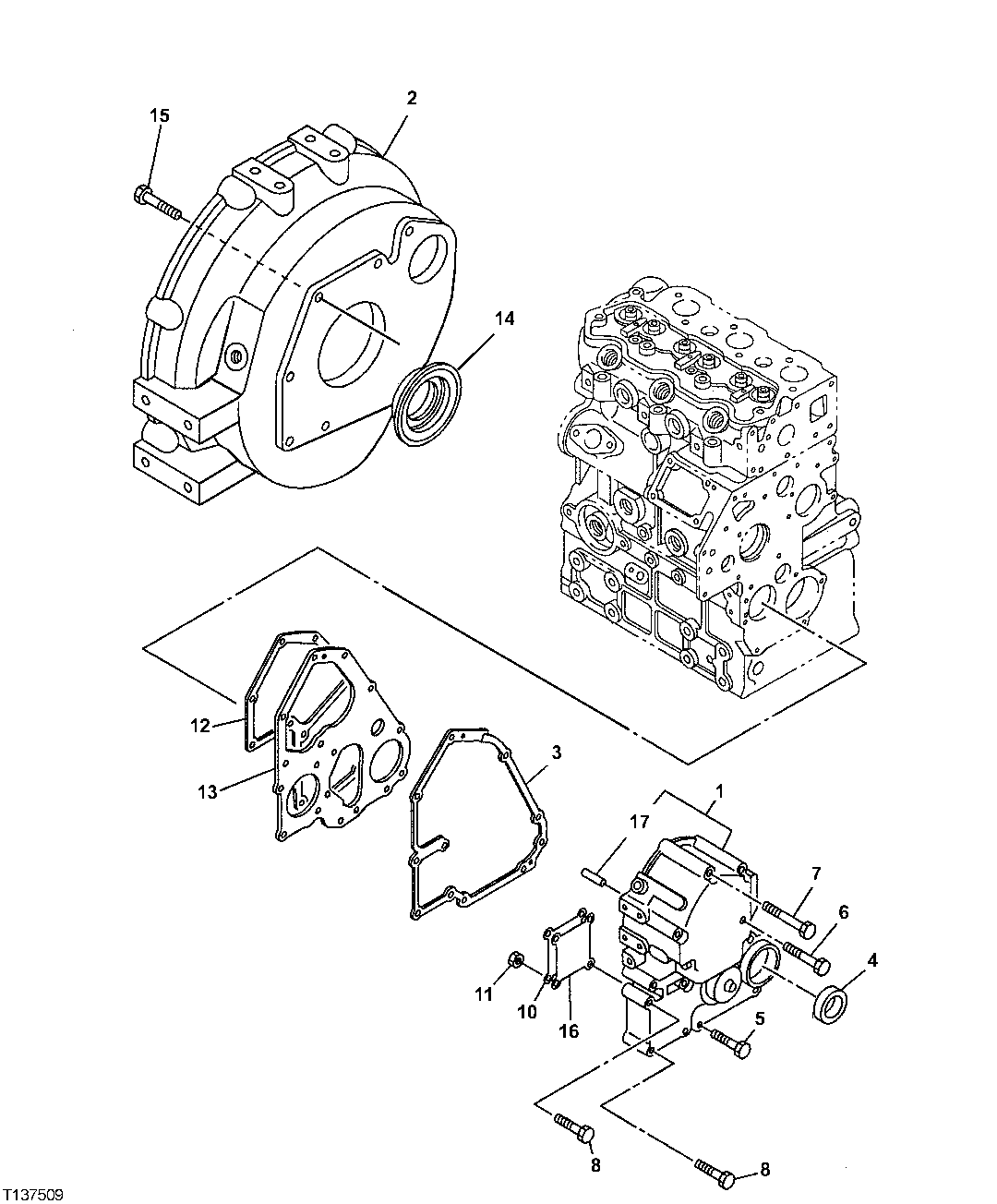

Схема запчастей John Deere 7ZTS - 37 - TIMING GEAR CASE AND FLYWHEEL HOUSING 0433 FLYWHEEL, HOUSING AND FASTENINGS

Артикул

Название

Примечание

Количество

1

5863015420

Cover

(SUB FOR AT263184)

1шт.

2

5863015440

Housing

(SUB FOR AT263185)

1шт.

3

5863008680

Gasket

(SUB FOR AT263122)

1шт.

4

5863011310

Seal

(SUB FOR AT263147)

1шт.

5

5863000520

Bolt

(SUB FOR AT263006)

4шт.

6

5863015460

Bolt

(SUB FOR AT263186)

3шт.

7

5863015470

Bolt

(SUB FOR AT263187)

2шт.

8

5863000210

Bolt

(SUB FOR AT263276)

2шт.

5863015480

Bolt

(SUB FOR AT263277)

2шт.

10

5863015490

Cover

(SUB FOR AT263221)

1шт.

11

5863001080

Nut

(SUB FOR AT263018)

4шт.

12

5863008670

Gasket

(SUB FOR AT263121)

1шт.

13

5863015510

Plate

(SUB FOR AT263188)

1шт.

14

5863011300

Seal

(SUB FOR AT263146)

1шт.

15

5863000570

Bolt

(SUB FOR AT263007)

8шт.

16

5863008690

Gasket

(SUB FOR AT263123)

1шт.

17

5863001310

Dowel Pin

(SUB FOR AT263028)

1шт.

Выбрано товаров: 17
