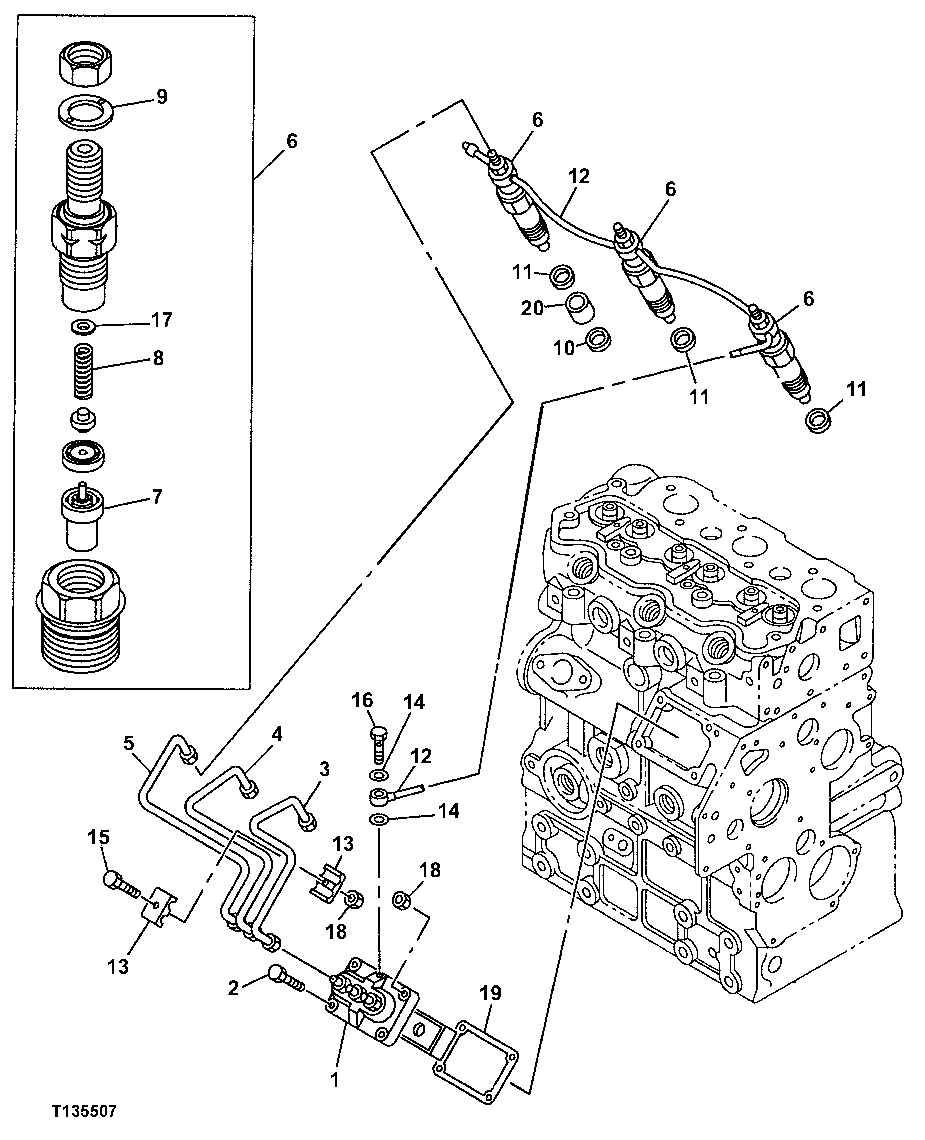

Запчасти John Deere 7ZTS 28 - Fuel Injection System ( - 520574) 0413 FUEL INJECTION SYSTEM

1

5863016630

Pump

1шт.

5863019590

Pump

1шт.

2

5863000490

Bolt

SUB FOR AT263004

2шт.

3

5863015640

Fuel Line

SUB FOR AT263194

1шт.

4

5863015660

Fuel Line

SUB FOR AT263195

1шт.

5

5863015680

Fuel Line

SUB FOR AT263196

1шт.

6

5863005950

Injection Nozzle

SUB FOR AT263095

3шт.

7

5863005990

Nozzle

SUB FOR AT263096

3шт.

8

5863006800

Spring

SUB FOR AT263106

3шт.

9

5863006060

Washer

SUB FOR AT263099

3шт.

10

5863011460

Gasket

SUB FOR AT263148

3шт.

11

5863006050

Gasket

SUB FOR AT263098

3шт.

12

5863015700

Fuel Line

SUB FOR AT263197

1шт.

13

5863011470

Half Clamp

SUB FOR AT263149

2шт.

14

5863001130

Gasket

SUB FOR AT263020

2шт.

15

5863000130

Bolt

SUB FOR AT262997

2шт.

16

5863007480

Bolt

SUB FOR AT263144 OR 5863010780

1шт.

17

5863006670

Shim

SUB FOR AT263105

3шт.

18

5863001070

Nut

SUB FOR AT263017

4шт.

19

5863006620

Shim

TK=0.2, SUB FOR AT263100

ARшт.

5863006630

Shim

TK=0.3, SUB FOR AT263101

ARшт.

5863006640

Shim

TK=0.4, SUB FOR AT263102

ARшт.

5863006650

Shim

TK=0.5, SUB FOR AT263103

ARшт.

5863006660

Shim

TK=0.5, SUB FOR AT263104

ARшт.

20

5863003130

Insert

SUB FOR AT263062

3шт.
