20 - CYLINDER BLOCK

Запчасти John Deere 7ZTS 20 - CYLINDER BLOCK 0404 CYLINDER BLOCK

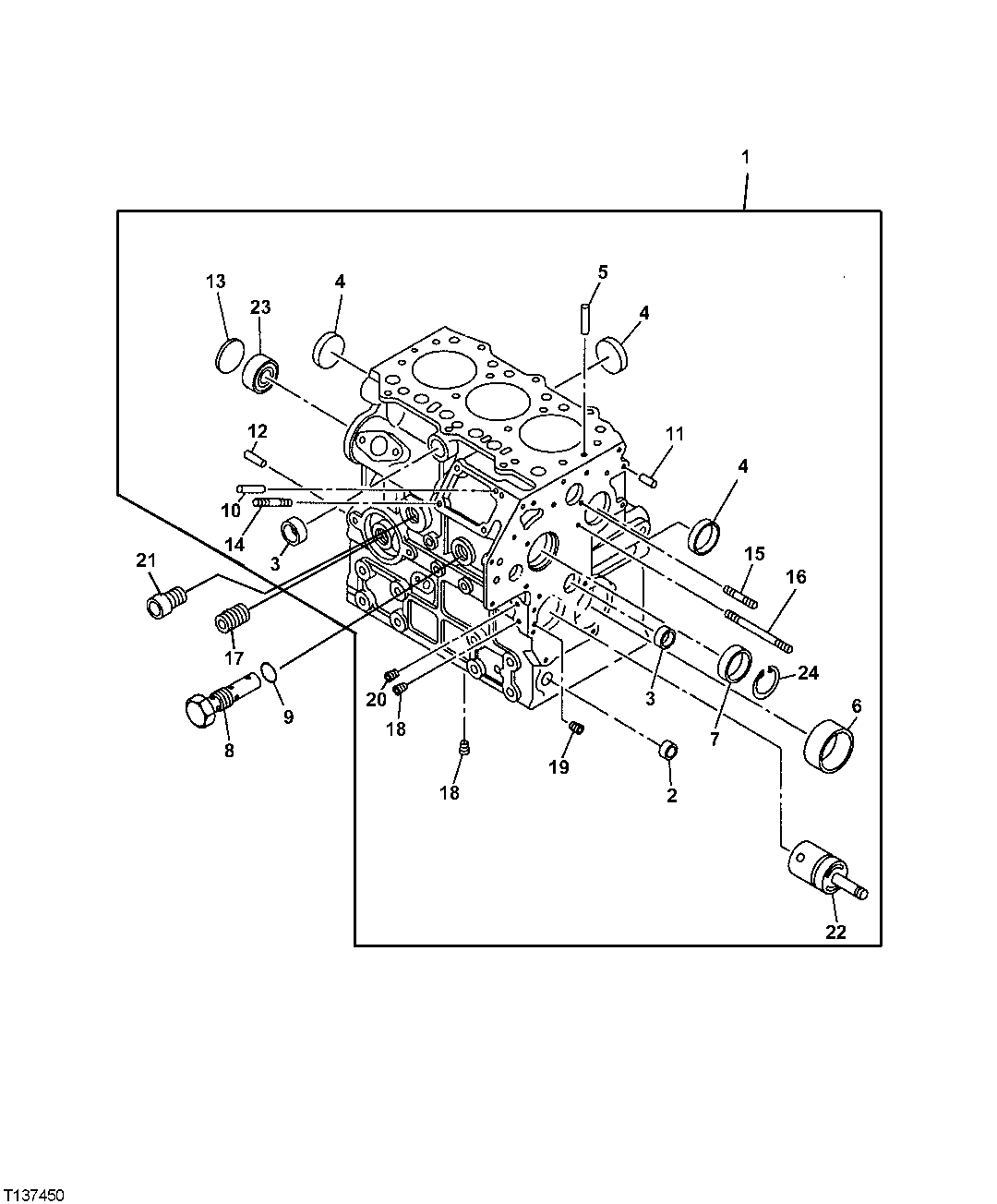

Схема запчастей John Deere 7ZTS - 20 - CYLINDER BLOCK 0404 CYLINDER BLOCK
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5863014730

Cylinder Block

1шт.

2

5863001850

Plug

(SUB FOR AT263055)

1шт.

3

5863001860

Plug

(SUB FOR AT263056)

2шт.

4

5863014380

Plug

(SUB FOR AT263163)

4шт.

5

5863001340

Dowel Pin

(SUB FOR AT263029)

2шт.

6

5863014750

Bushing

(SUB FOR AT263295)STANDARD

1шт.

5863014770

Bushing

(SUB FOR AT263296)(1/4)

1шт.

Bushing

(1/2)

1шт.

7

5863001580

Bushing

(SUB FOR AT263045)

1шт.

8

5863014810

Pressure Relief Valve

(SUB FOR AT263297)

1шт.

9

5863001750

Back-Up Ring

(SUB FOR AT263053)

1шт.

10

5863001350

Dowel Pin

(SUB FOR AT263030)

2шт.

11

5863001370

Dowel Pin

(SUB FOR AT263032)

2шт.

12

5863001390

Dowel Pin

(SUB FOR AT263033)

2шт.

13

5863001810

Plug

(SUB FOR AT263054)

1шт.

14

5863012440

Stud

(SUB FOR AT263159)

2шт.

15

5863000790

Stud

(SUB FOR AT263011)

1шт.

16

5863000800

Stud

(SUB FOR AT263012)

1шт.

AT263298

Stud

2шт.

17

5863007580

Stud

(SUB FOR AT263112)

1шт.

18

5863010710

Fitting Plug

(SUB FOR AT263141)

5шт.

19

5863010720

Fitting Plug

(SUB FOR AT263142)

1шт.

20

5863010690

Fitting Plug

(SUB FOR AT263139)

4шт.

21

5863001930

Pipe Plug

(SUB FOR AT263299)

1шт.

22

5863018450

Shaft

(SUB FOR AT263120 OR 5863008650)

1шт.

23

5863001540

Bearing

(SUB FOR AT263043)

1шт.

24

5863001480

Snap Ring

(SUB FOR AT263038)

1шт.
