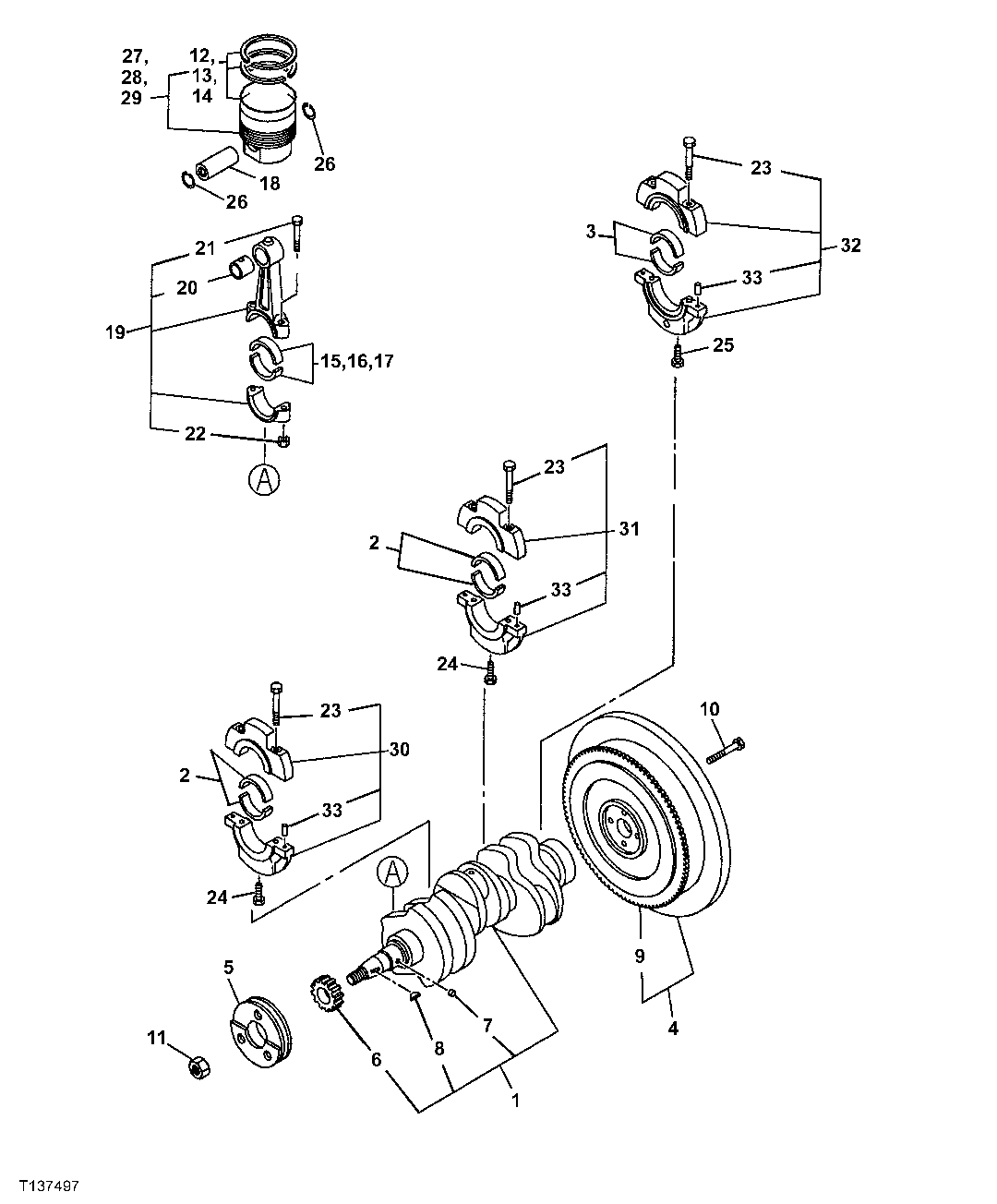

Запчасти John Deere 7ZTS 16 - CRANKSHAFT, PISTON AND FLYWHEEL 0401 CRANKSHAFT AND MAIN BEARINGS

1

5863015010

Crankshaft

SUB FOR AT263172

1шт.

2

5863019780

Bearing

(SUB FOR AT263173)(STD) SUB FOR 5863015090

2шт.

5863015340

Bearing

(SUB FOR AT263265)(0.25) (UPPER)

1шт.

5863015360

Bearing

(SUB FOR AT263266)(0.25) (LOWER)

1шт.

5863015380

Bearing

(SUB FOR AT263267)(0.5) (UPPER)

1шт.

5863015400

Bearing

(SUB FOR AT263268)(0.5) (LOWER)

1шт.

3

5863015100

Bearing

(SUB FOR AT263174 OR 5863011270)(STD)

1шт.

5863015340

Bearing

(SUB FOR AT263265)(0.25) (UPPER)

1шт.

5863015360

Bearing

(SUB FOR AT263266)(0.25) (LOWER)

1шт.

5863015380

Bearing

(SUB FOR AT263267)(0.5) (UPPER)

1шт.

5863015400

Bearing

(SUB FOR AT263268)(0.5) (LOWER)

1шт.

4

5863015110

Flywheel

SUB FOR AT263175

1шт.

5

5863015130

Pulley

SUB FOR AT263176

1шт.

6

5863003520

Gear

SUB FOR AT263070

1шт.

7

5863001420

Shaft Key

SUB FOR AT263034

1шт.

8

5863001440

Shaft Key

SUB FOR AT263036

1шт.

9

5863003670

Gear

SUB FOR AT263072

1шт.

10

5863000060

Bolt

SUB FOR AT262995

4шт.

11

5863001030

Nut

SUB FOR AT263016

1шт.

12

5863003370

Piston Ring Kit

(SUB FOR AT263066)(STD)

3шт.

13

5863003380

Piston Ring Kit

(SUB FOR AT263067)(0.50)

3шт.

14

5863003390

Piston Ring Kit

(SUB FOR AT263068)(0.25)

3шт.

15

5863019790

Bearing

(SUB FOR AT263177, 58630 11130 OR 5863015150)(STD)

6шт.

16

5863015170

Bearing

(SUB FOR AT263178)(0.25)

6шт.

17

5863015190

Bearing

(SUB FOR AT263179)(0.5)

6шт.

18

5863003560

Piston Pin

SUB FOR AT263071

3шт.

19

5863015210

Connecting Rod

SUB FOR AT263180

3шт.

20

5863011160

Bushing

SUB FOR AT263145

3шт.

21

5863003430

Bolt

SUB FOR AT263069

6шт.

22

5863000990

Nut

SUB FOR AT263014

6шт.

23

5863015230

Bolt

SUB FOR AT263274

4шт.

5863015240

Bolt

SUB FOR AT263275

2шт.

24

5863000610

Bolt

SUB FOR AT263008

2шт.

25

5863000310

Bolt

SUB FOR AT263000

2шт.

26

5863001450

Snap Ring

(SUB FOR AT263037)(STD)

6шт.

27

5863003200

Piston Replacement Kit

SUB FOR AT263063

3шт.

28

5863003220

Piston Replacement Kit

(SUB FOR AT263065)(0.25)

3шт.

29

5863003210

Piston Replacement Kit

(SUB FOR AT263064)(0.5)

3шт.

30

5863015280

Bearing Cap

SUB FOR AT263181

1шт.

31

5863015300

Bearing Cap

SUB FOR AT263182

1шт.

32

5863015320

Bearing Cap

SUB FOR AT263183

1шт.

33

5863001360

Dowel Pin

SUB FOR AT263031

6шт.
