Запчасти John Deere 7ZTS 14 - PROPEL MOTOR 0267 HYDRAULIC DRIVE MOTOR

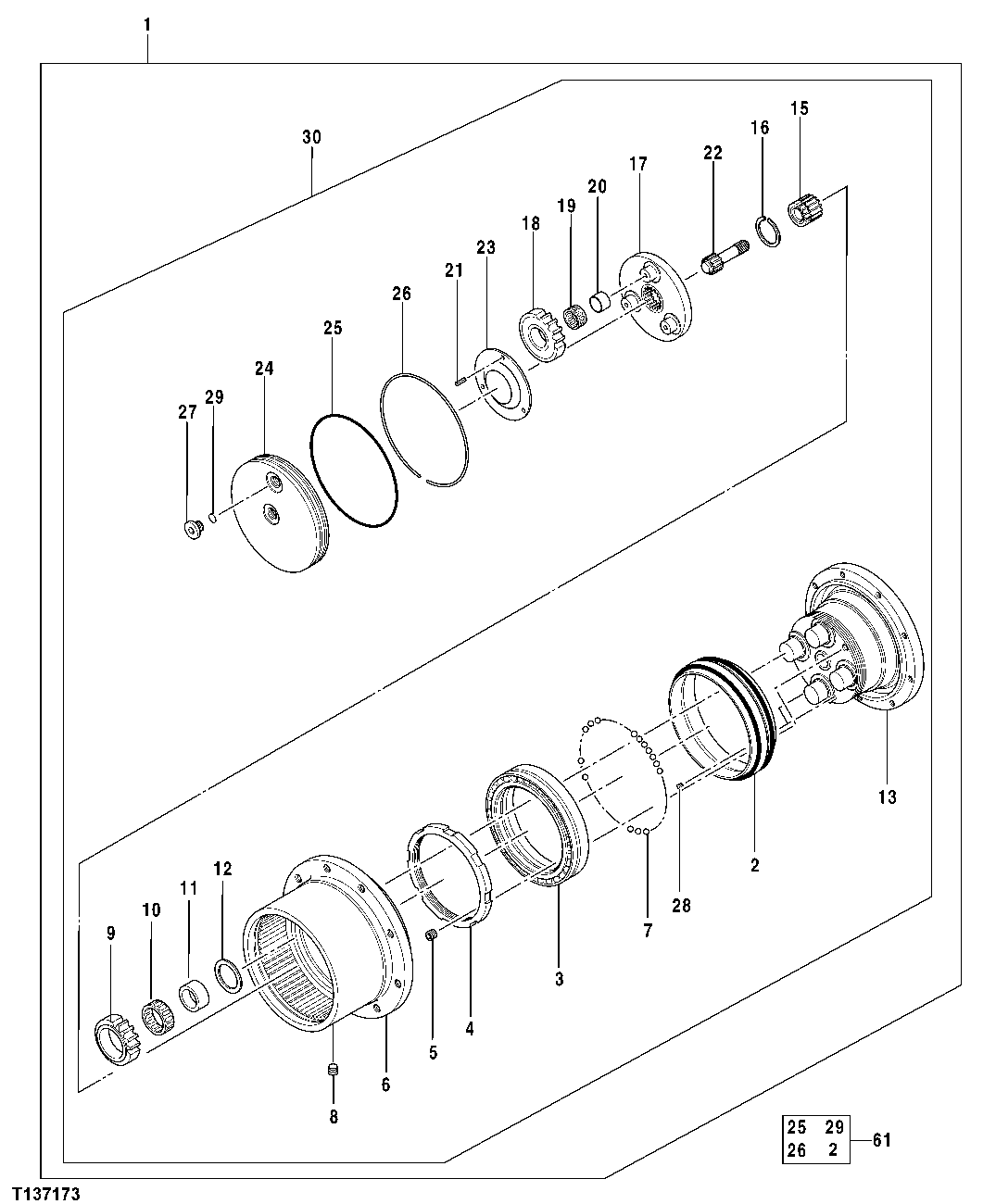

Схема запчастей John Deere 7ZTS - 14 - PROPEL MOTOR 0267 HYDRAULIC DRIVE MOTOR

Артикул

Название

Примечание

Количество

1

4438716

Hydraulic Motor

(SUB FOR TH4438716)(CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL CO MPONENTS LISTED ON PREVIOUS PAGE)

1шт.

2

0799802

Seal

(SUB FOR TH0799802)

2шт.

3

0799803

Bearing

(SUB FOR TH0799803)

1шт.

4

0799804

Nut

(SUB FOR TH0799804)

1шт.

5

0436504

Plug

(SUB FOR TH0436504)

1шт.

6

Housing

1шт.

7

0431910

Ball

(SUB FOR AT203717)

94шт.

8

94-2010

Fitting Plug

(SUB FOR TH100689)

1шт.

9

0799805

Gear

(SUB FOR TH0799805)

4шт.

10

0799806

Needle Bearing

(SUB FOR TH0799806)

4шт.

11

0799807

Bearing Race

(SUB FOR TH0799807)

4шт.

12

0799808

Thrust Washer

(SUB FOR TH0799808)

4шт.

13

Holder

1шт.

15

0799809

Sun Gear

(SUB FOR TH0799809)

1шт.

16

0799810

Snap Ring

(SUB FOR TH0799810)

1шт.

17

0799811

Planet Pinion Carrier

(SUB FOR TH0799811)

1шт.

18

0799812

Gear

(SUB FOR TH0799812)

3шт.

19

0799813

Needle Bearing

(SUB FOR TH0799813)

3шт.

20

0799814

Bearing Race

(SUB FOR TH0799814)

3шт.

21

34M7030

Spring Pin

5 X 20 mm

3шт.

22

0799815

Pinion Shaft

(SUB FOR TH0799815)

1шт.

23

0799816

Thrust Washer

(SUB FOR TH0799816)

1шт.

0799817

Thrust Washer

(SUB FOR TH0799817)

1шт.

0799818

Thrust Washer

(SUB FOR TH0799818)

1шт.

0799819

Thrust Washer

(SUB FOR TH0799819)

1шт.

24

0799820

Cover

(SUB FOR TH0799820)

1шт.

25

AT264340

O-Ring

(SUB FOR TH100123, 992446)

1шт.

26

0799821

Snap Ring

(SUB FOR TH0799821)

1шт.

27

0799822

Plug

(SUB FOR TH0799822)

2шт.

28

0799823

Plug

(SUB FOR TH0799823)

2шт.

29

M800650

Packing

2шт.

30

0799801

Transmission

(SUB FOR TH0799801)

1шт.

61

0799722

Seal Kit

(SUB FOR TH0799722)(ADDITIONAL CO MPONENTS LISTED ON PREVIOUS PAGE)

1шт.

Выбрано товаров: 33
