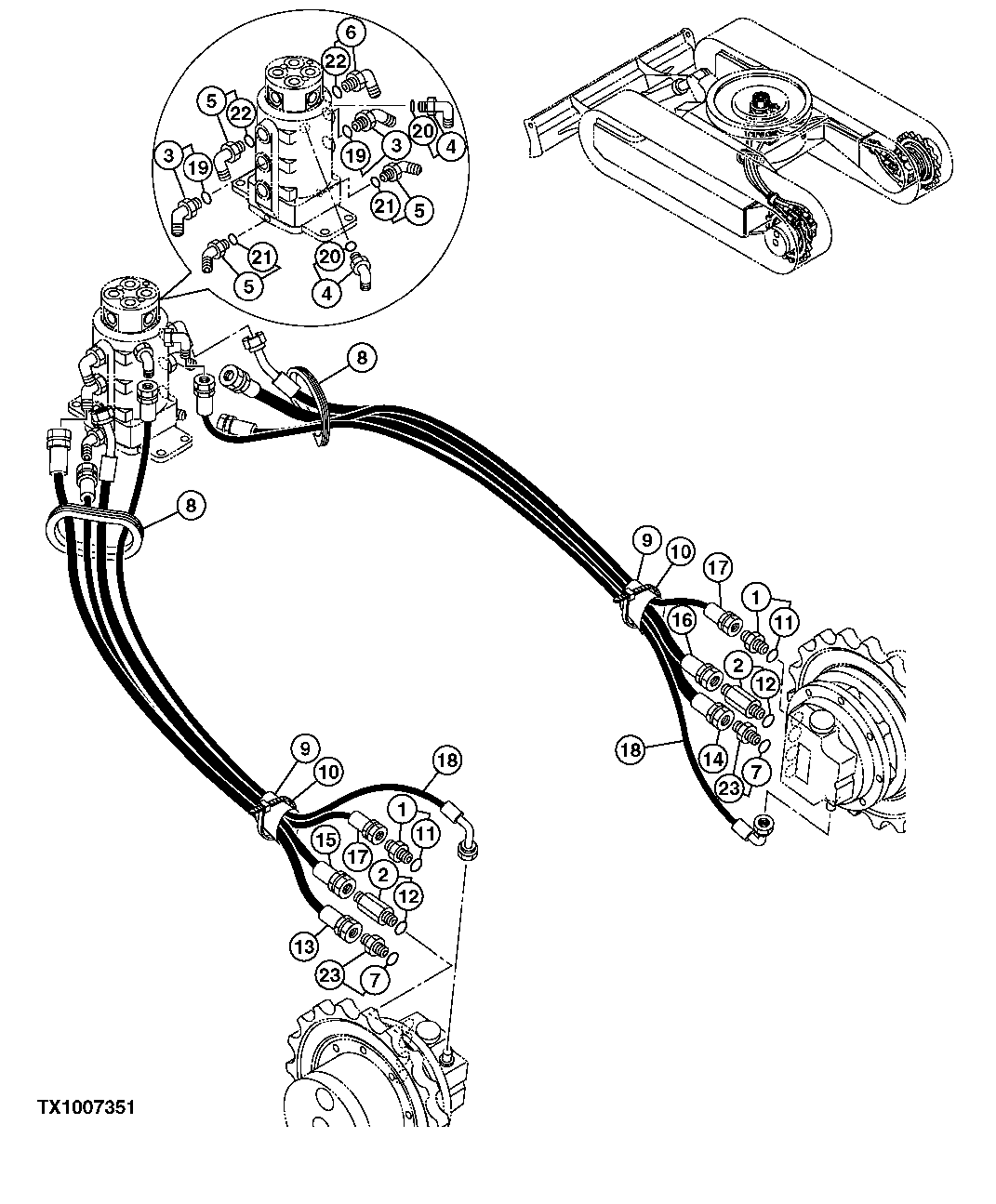

Запчасти John Deere 7ZTS 11 - TRAVEL HYDRAULIC LINES 0263 LINES, HOSE & FITTINGS

1

4042030

Adapter Fitting

(SUB FOR TH105939)

2шт.

2

4448669

Fitting

(SUB FOR TH4448669)

2шт.

3

4095133

Elbow Fitting

(SUB FOR TH4095133)

2шт.

4

4434981

Elbow Fitting

(SUB FOR TH4434981)

2шт.

5

4108100

Elbow Fitting

(SUB FOR AT251160)

2шт.

6

4434982

Elbow Fitting

(SUB FOR TH4434982)

2шт.

7

M800650

Packing

1шт.

8

4253889

Grommet

(SUB FOR AT130718)

2шт.

9

N305984

Hose Guard

(SUB FOR AT258328 ) (SUB FOR 4279255)

2шт.

10

H77698

Tie Band

2шт.

11

M800650

Packing

1шт.

12

M800650

Packing

1шт.

13

TH4453167

Hydraulic Hose

1шт.

14

4453168

Hydraulic Hose

(SUB FOR TH4453168)

1шт.

15

4453169

Hydraulic Hose

(SUB FOR TH4453169)

1шт.

16

4453170

Hydraulic Hose

(SUB FOR TH4453170)

1шт.

17

4453171

Hydraulic Hose

(SUB FOR TH4453171)

2шт.

18

4454730

Hydraulic Hose

(SUB FOR TH4454730)

2шт.

19

CH11570

O-Ring

1шт.

20

M800650

Packing

1шт.

21

M800650

Packing

1шт.

22

CH11570

O-Ring

1шт.

23

4368205

Adapter Fitting

(SUB FOR AT251300)

2шт.
