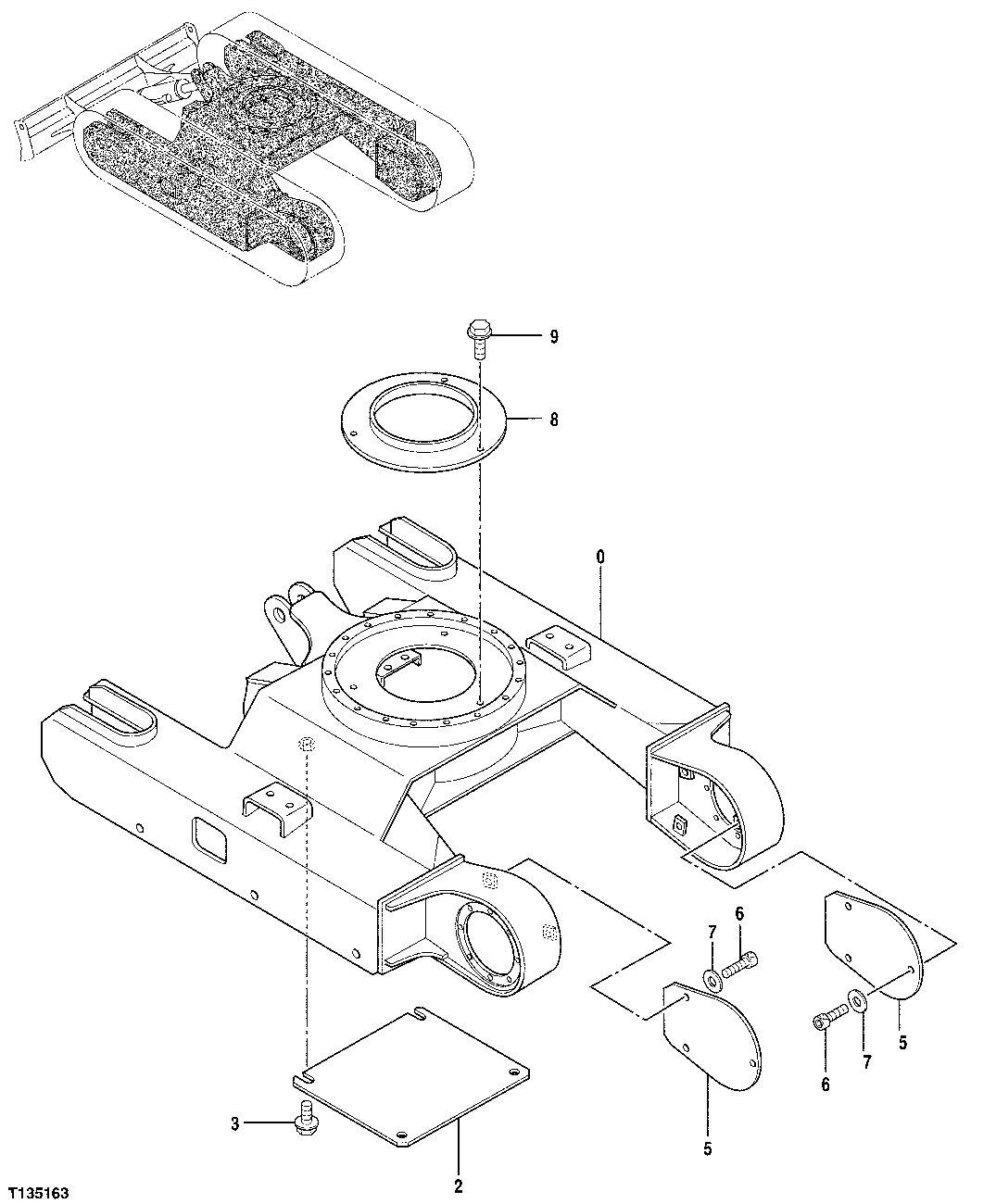

Запчасти John Deere 7ZTS 7 - TRACK FRAME 0131 TRACK FRAMES

0

6019428

Frame

SUB FOR TH6019428

1шт.

2

3056679

Cover

SUB FOR TH3056679

1шт.

3

19M7402

Cap Screw

M10 X 25

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

5

4340414

Cover

SUB FOR TH4340414

2шт.

6

19M7647

Screw

M8 X 16 SUB FOR AT217709

6шт.

7

24M7036

Washer

9 X 16 X 1.600 mm

6шт.

8

3091225

Cover

SUB FOR TH3091225

1шт.

9

19M7866

Screw

M8 X 20 SUB FOR AT213603 OR J0508 20; ALSO ORDER 24M7036 AND 12M7065

3шт.

24M7036

Washer

9 X 16 X 1.600 mm

3шт.

Washer

12M7065 NLA

3шт.
