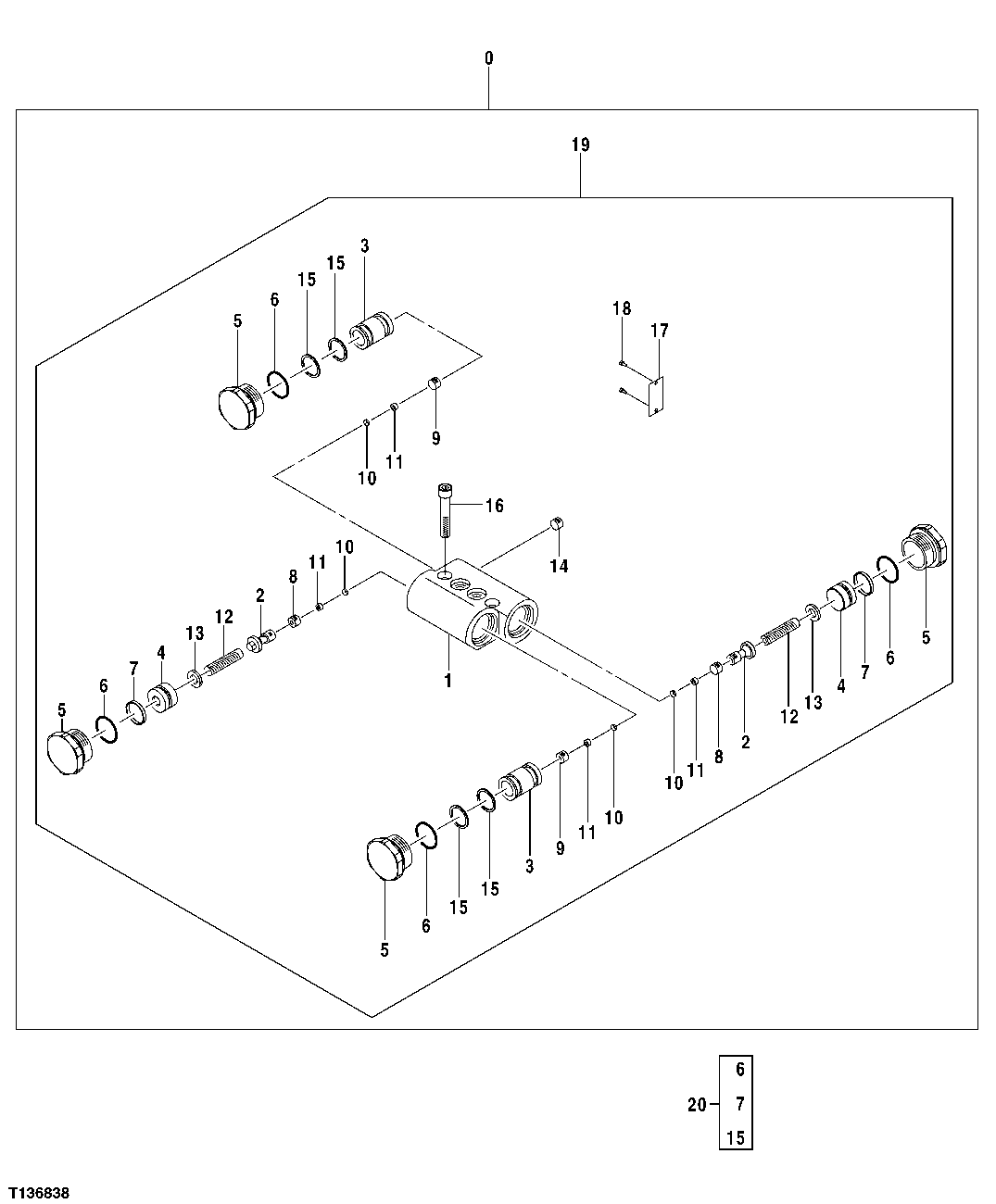

Запчасти John Deere 7ZTS 145 - SWING MOTOR 4367 MOTORS

0

4438714

Hydraulic Motor

(SUB FOR TH4438714)(INCLUDES ALL COMP ONENTS ON THIS PAGE AND PREVIOUS PAGE)

1шт.

1

Housing

1шт.

2

Plunger

2шт.

3

Seat

2шт.

4

Piston

2шт.

5

Plug

4шт.

6

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

4шт.

7

Seal

2шт.

8

Plug

2шт.

9

Plug

2шт.

10

Filter

4шт.

11

Bushing

4шт.

12

Spring

2шт.

13

Solid Shim

2шт.

14

0600314

Fitting Plug

(SUB FOR TH0600314)

6шт.

15

4506418

O-Ring

(SUB FOR U46489)

4шт.

16

0799601

Bolt

(SUB FOR TH0799601)

2шт.

17

Plate

1шт.

18

Screw

2шт.

19

0799603

Pressure Relief Valve

(SUB FOR TH0799603)

1шт.

20

0799602

Seal Kit

(SUB FOR TH0799602

1шт.
